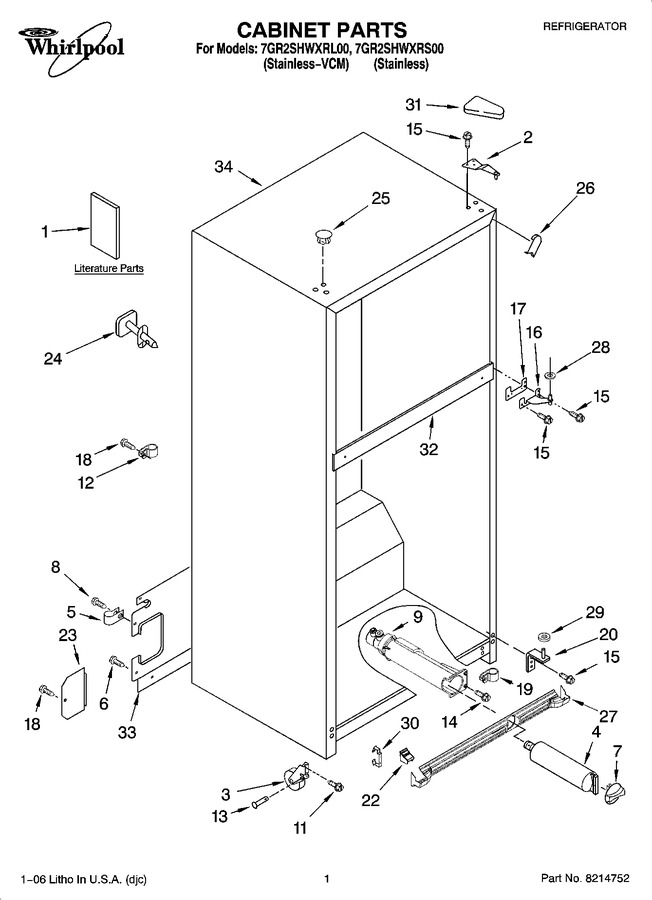

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 677969 | Do-it-yourself Manual, Ref./fzr. |
|
$ 30.30 | |||||
| 1 | 2314277 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2314458 | Energy Label |
|
- | |||||
| 1 | 2225623 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | 2314457 | Use & Care Guide |
|
- | |||||
| 1 | 2225413 | Customer Instructions |
|
- | |||||
| 1 | 2302485 | Customer Instruct Sheet, Wtr Filter |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2189410) |
|
Immediately | $ 119.42 | ||||
| 3 | WP2166108 | Roller-front (2) (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 4 | EDR6D1B | Water Filter (Replaces: 2301705) |
|
Immediately | $ 49.99 | ||||
| 5 | WP488366 | Clamp, Tube (water Supply Line) (Replaces: 2208136) |
|
$ 11.92 | |||||
| 6 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 7 | WP2186494B | Cap Water Filter (Replaces: 2186494B) |
|
Immediately | $ 55.86 | ||||
| 8 | WP488787 | Screw (Replaces: 488886) |
|
$ 11.26 | |||||
| 9 | WP2225521 | Housing, Water Filter (Replaces: 2225521) |
|
Immediately | $ 164.41 | ||||
| 11 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 7.55 | |||||
| 12 | 489348 | Clamp, Tube (nylon) |
|
- | |||||
| 13 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 14 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 16 | WP2254618 | Hinge, Center (Replaces: 2183972) |
|
Immediately | $ 92.02 | ||||
| 17 | WP2183854 | Shim, Hinge Center (Replaces: 2183854) |
|
$ 11.43 | |||||
| 18 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 19 | 2300782 | Clamp |
|
- | |||||
| 20 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 9.28 | |||||
| 22 | 2300634B | Endcap, Grille |
|
- | |||||
| 23 | 2166251 | Cover, Water Valve |
|
$ 6.43 | |||||
| 25 | WP2183998 | Hole Plug (6) (Replaces: 2183998) |
|
$ 19.01 | |||||
| 26 | W11252732 | Corner Filler (2) (Replaces: 2201017) |
|
$ 13.07 | |||||
| 27 | 2300475B | Grille (includes Illus. 22 & 30) |
|
- | |||||
| 28 | WP489467 | Washer-plain (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 29 | WP487576 | Washer-nylon (Replaces: 487576) |
|
Immediately | $ 10.74 | ||||
| 30 | 2189356 | Clip-grille (2) |
|
$ 5.70 | |||||
| 31 | WP2213363 | Cover, Hinge (Replaces: 2213363) |
|
Immediately | $ 19.12 | ||||
| 33 | 2302358 | Cover, Unit |
|
$ 57.60 |
