Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2300636S Refrigerator Door (includes Illus. 8 & 12) (stainless) Appelez-nous -
1 2300636V Refrigerator Door (includes Illus. 8 & 12) (stainless-vcm) Appelez-nous -
2 2159306 Trim, Door Shelf Special Order $ 53.20

3 2177340 Endcap, Door Trim Special Order $ 5.84

4 W11745278 Bracket, Door Stop   (Replaces: 2189202) In-Stock Immediately $ 13.37

5 2210566 Housing Compartment Special Order $ 65.25

6 2218109 Door, Compartment Special Order $ 33.66

7 WP2212651 Hole Plug Hinge Sleeve   (Replaces: 2212651) Special Order $ 24.21

8 2177311 Door Gasket, Magnetic   (Replaces: 2202882) Special Order $ 330.95

9 2195388 Tray, Door Appelez-nous -
11 2204840 Hole Plug, Endcap Special Order $ 33.23

12 WP2183003 Thimble   (Replaces: 2183003) Special Order $ 8.14

13 WP681249 Screw   (Replaces: 489276) In-Stock Immediately $ 8.25

14 2221644 Endcap, Handle Special Order $ 65.71

15 2300425 Bin, Door Shelf (3) Appelez-nous -
16 WPW10421486 Trim, Door Shelf   (Replaces: 2195948) Special Order $ 114.74

17 WP2156006 Plug-trim   (Replaces: 2156006) In-Stock Immediately $ 12.79

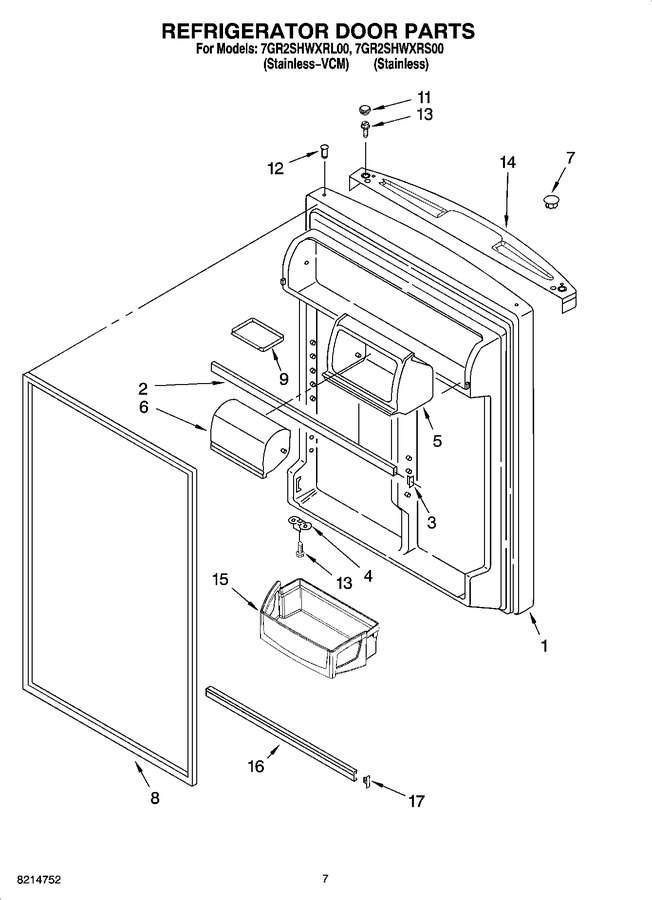

    View Diagram in Separate Window     Print Icon   Print Part List
