SELECT A DIAGRAM

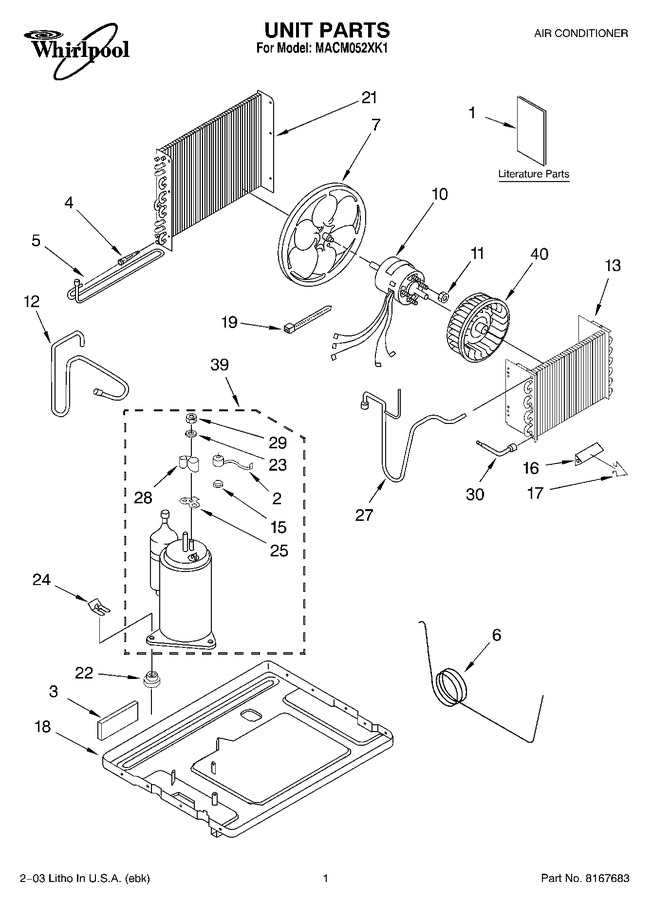

01 - Unit Parts


02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT1184505		Use & Care Guide		Appelez-nous	-
1	LIT1187081		Energy Guide		Appelez-nous	-
1	LIT8031276		Literature Parts (wiring Diagram)		Appelez-nous	-
2	1186828		Overload		Appelez-nous	-
3	1187084		Seal		Appelez-nous	-
4	WP1162526		Strainer   (Replaces: 1162526)				$ 75.98
5	8011328		Tube, Wet Loop		Appelez-nous	-
6	8011408		Tube, Restrictor		Appelez-nous	-
7	1158524		Blade, Fan		Appelez-nous	-
10	1186826		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
12	8011443		Tube, Discharge		Appelez-nous	-
13	8011193		Evaporator		Appelez-nous	-
15	1185795		Spring, Overload		Appelez-nous	-
16	996773		Anticipator		Appelez-nous	-
17	475577		Clip, Anticipator		Appelez-nous	-
18	8011187		Base		Appelez-nous	-
19	WPW10339879		Cable Tie   (Replaces: 857547)				$ 7.47
21	8011210		Condenser		Appelez-nous	-
22	950212		Grommet (3)		Appelez-nous	-
23	1185794		Washer		Appelez-nous	-
24	8011446		Clip, Compressor		Appelez-nous	-
25	1185793		Gasket, Terminal Cover		Appelez-nous	-
27	1185346		Tube, Suction		Appelez-nous	-
28	1185792		Cover, Terminal		Appelez-nous	-
29	W10833054		Nut, Hex   (Replaces: 1186030)		Appelez-nous	-
30	8011208		Tube, Feeder (restrictor)		Appelez-nous	-
39	1185907		Compressor Assembly		Appelez-nous	-
40	8011324		Wheel, Blower		Appelez-nous	-
	123		Test		Appelez-nous	-
