01 - Unit Parts
02 - Air Flow And Control Parts

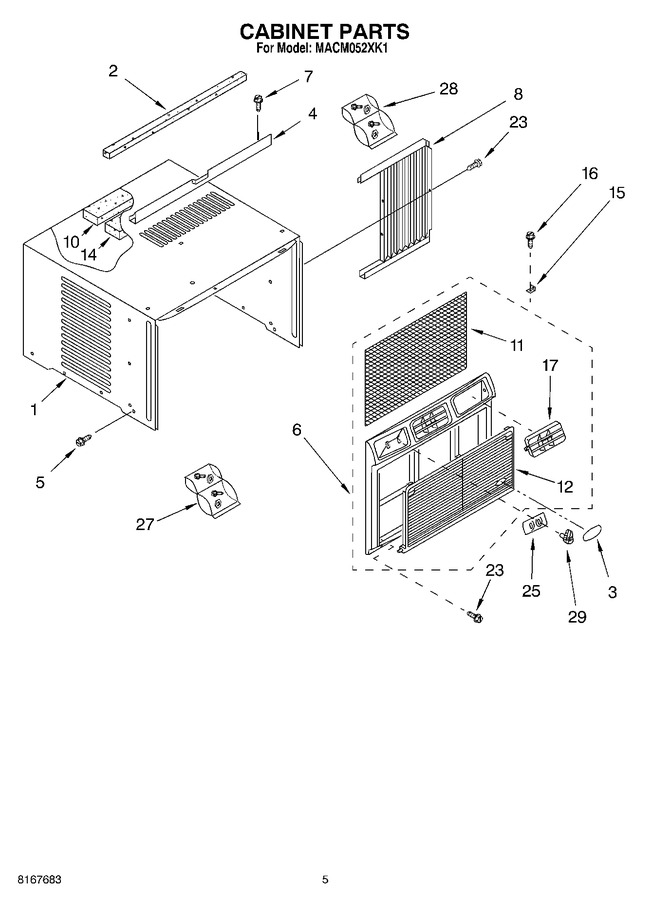

03 - Cabinet Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8011107 | Cabinet |
|
- | |||||
| 2 | 469877 | Gasket, Meeting Rail |
|
- | |||||
| 3 | WP2213265 | Nameplate (Replaces: 1186026) |
|
Immediately | $ 83.86 | ||||
| 4 | 8011307 | Channel, Top |
|
- | |||||
| 5 | WP489069 | Screw, 8-15 X 1/2 (8) (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 6 | 1187085 | Front, Cabinet Assembly |
|
- | |||||
| 7 | 488624 | Screw |
|
- | |||||
| 8 | 8011311 | Curtain (l.s.) |
|
- | |||||
| 8 | 8011308 | Curtain (r.s.) |
|
- | |||||
| 10 | 8011385 | Insulation, Top |
|
- | |||||
| 11 | 8011314 | Filter |
|
$ 10.28 | |||||
| 12 | 1187086 | Grille, Front |
|
- | |||||
| 14 | 8011386 | Foam, Condenser |
|
- | |||||
| 15 | 644228 | Bracket, Window |
|
- | |||||
| 16 | 488255 | Screw, 8 X 3/4 |
|
- | |||||
| 17 | 8011189 | Louver, Assembly |
|
- | |||||
| 23 | 1161561 | Screw, (2) |
|
- | |||||
| 25 | 1184590 | Escutcheon |
|
- | |||||
| 27 | 476180 | Bag, Accessory |
|
- | |||||
| 28 | 1185948 | Bag, Accessory (curtains) |
|
- | |||||
| 29 | 8031121 | Knob (2) |
|
$ 29.99 |
