SELECT A DIAGRAM

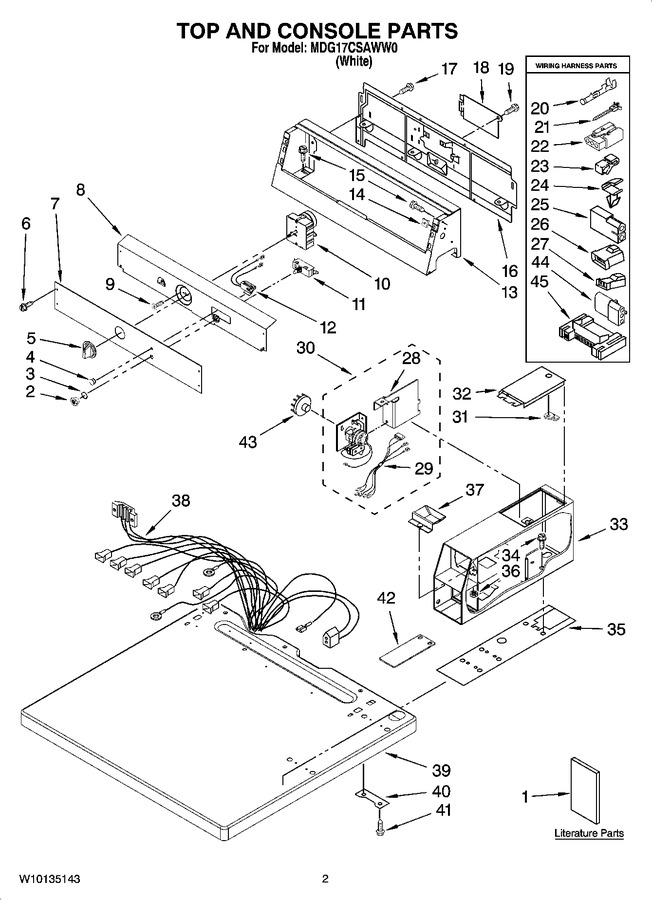

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10135231 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10135134		Instructions Installation		Appelez-nous	-
1	W10167622		Wiring Diagram		Appelez-nous	-
1	W10135143		Repair Parts List		Appelez-nous	-
2	W10146429		Nut, 8-32 X 3/8		Appelez-nous	-
3	WPW10139799		Washer   (Replaces: W10139799)				$ 8.91
4	WPW10133502		Lens, Pilot Light Amber   (Replaces: W10133502)				$ 12.16
5	W11643382		Knob   (Replaces: W10133507)			Immediately	$ 36.18
6	WPW10131119		Screw, 8-18 X 1/2   (Replaces: W10131119)				$ 6.57
7	W10135183		Facia / Overlay		Appelez-nous	-
8	W10124213		Bracket, Control		Appelez-nous	-
9	W10139100		Screw, 8-32 X 1/4				$ 11.71
10	WPW10327105		Switch, Cycle Selection   (Replaces: W10129712)				$ 152.77
11	WPW10149462		Switch, Push-to-start   (Replaces: W10149462)				$ 63.81
12	W10662107		Lamp-indicator   (Replaces: W10130072)				$ 24.46
13	W10231471		Console   (Replaces: W10137299)		Appelez-nous	-
14	WPW10131123		Nut, 8 U-type   (Replaces: W10131123)				$ 7.29
15	WPW10139210		Screw, 8-18 X 5/16   (Replaces: W10139210)				$ 7.23
16	W11089934		Panel, Rear (upper)   (Replaces: 3978608)				$ 269.69
17	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
18	W10819767		Cover, Terminal Box   (Replaces: 8317340)		Appelez-nous	-
19	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.43
20	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.25
21	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 30.09
22	717315		Receptacle, 4-way		Appelez-nous	-
23	W10113937		Clip, Ground   (Replaces: 357572)				$ 10.23
24	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.36
25	717252		Receptacle, 2 Way		Appelez-nous	-
26	WP3403498		Connector, 3 Position   (Replaces: 3403498)				$ 6.57
27	WP3403499		Connector, 2 Position   (Replaces: 3403499)				$ 5.42
28	W10154739		Bracket, Timer		Appelez-nous	-
29	W10177793		Harness, Timer				$ 70.44
30	WPW10135260		Timer & Harness Assembly   (Replaces: W10135260)				$ 375.69
31	W11401086		Cam, Commercial Lock   (Replaces: W10145154)				$ 6.17
32	W11283272		Door, Service   (Replaces: 3351136)				$ 100.05
33	WPW10529172		Meter Case   (Replaces: W10136649)				$ 345.34
34	W11715721		Bolt, Meter Case (5/16-24 X 1.00)   (Replaces: 3349065)				$ 6.73
34	3353994		Bolt, Meter Case (5/16-18 X 2 1/2)		Appelez-nous	-
35	WP3954812		Cushion, Meter   (Replaces: 3954812)				$ 29.39
36	W10139060		Nut, 1/4-20		Appelez-nous	-
37	W10133509		Funnel, Coin				$ 78.22
38	W10153108		Harness, Main		Appelez-nous	-
39	WPW10136707		Top   (Replaces: W10136707)				$ 336.58
40	3347825		Plate-mounting (2)		Appelez-nous	-
41	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
42	WPW10153513		Extension   (Replaces: W10153513)				$ 78.29
43	WP3387974		Timing Cam (cam - 3 Pin)   (Replaces: 3387974)				$ 7.87
43	51-161-6		Timing Cam (cam - 6 Pin)   (Replaces: 343777)				$ 31.07
44	3936144		Connector (3-circuit)				$ 19.10
45	3395683		Housing Connector			Immediately	$ 49.01

    View Diagram in Separate Window       Print Part List
