SELECT A DIAGRAM
01 - Top And Console Parts
02 - Cabinet Parts

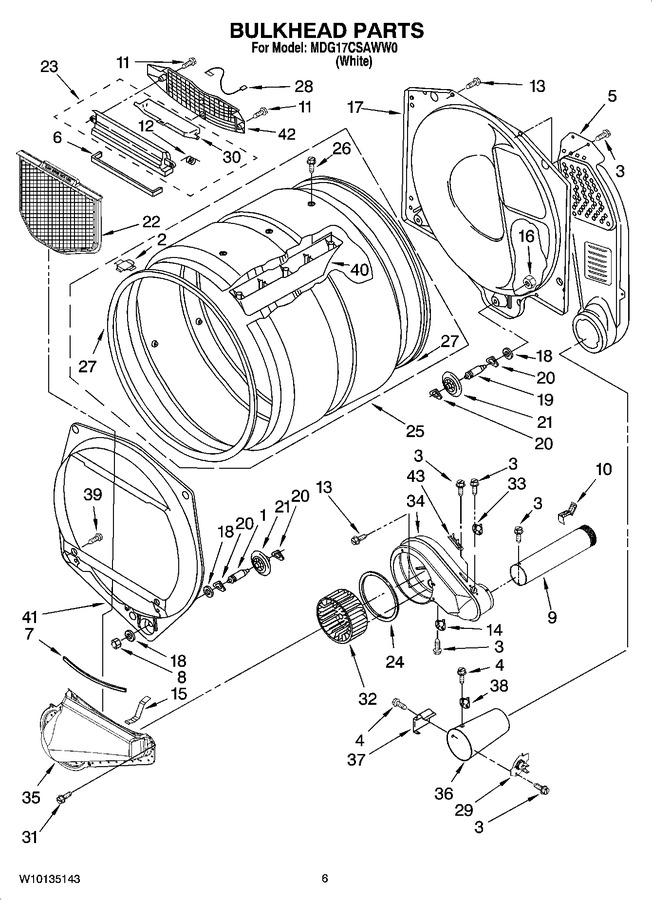

03 - Bulkhead Parts
04 - W10135231 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 55.99 | ||||
| 2 | 8066086 | Drum, Hole Plug |
|
$ 10.16 | |||||
| 3 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 4 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 5 | W11168650 | Air Duct Assembly (Replaces: 3394346) |
|
$ 97.66 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.53 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.53 | ||||
| 8 | W11812294 | Nut-3/8 X 16 (r.h.) (Replaces: 3934666) |
|
$ 11.49 | |||||
| 9 | 279936 | Exhaust Pipe (Replaces: 8066224) |
|
$ 138.76 | |||||
| 10 | W11684573 | Clip-exhaust (Replaces: 8572105) |
|
$ 7.35 | |||||
| 11 | WP3387230 | Screw, 10-16 X 13/16 (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 12 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.12 | |||||
| 13 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 14 | W10165817 | Thermostat 155 F. |
|
- | |||||
| 15 | WP8066208 | Clip, Spring (Replaces: 8066208) |
|
$ 7.95 | |||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10001120) |
|
Immediately | $ 9.01 | ||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 330.86 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 13.26 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.71 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 25.65 | ||||
| 22 | W10120998 | Lint Screen (Replaces: W10049370) |
|
$ 74.66 | |||||
| 23 | W11129408 | Housing, Outlet Assembly (Replaces: 8563755) |
|
Immediately | $ 51.20 | ||||
| 24 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 7.44 | ||||
| 25 | W10545923 | Drum Complete (Replaces: 8318215) |
|
$ 412.74 | |||||
| 26 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: W10109200) |
|
Immediately | $ 7.92 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 63.74 | ||||
| 28 | WP3401707 | Wire, Jumper (Replaces: 3401707) |
|
$ 77.93 | |||||
| 29 | WP8573713 | Thermal-cutoff (includes Item. 38) (Replaces: 8573713) |
|
Immediately | $ 65.26 | ||||
| 30 | W11222846 | Door, Lint Screen (Replaces: 8563758) |
|
Immediately | $ 192.52 | ||||
| 31 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.45 | ||||
| 32 | WPW10349492 | Wheel, Blower (Replaces: W10168564) |
|
Immediately | $ 147.43 | ||||
| 33 | WPW10131836 | Thermostat (Replaces: W10131836) |
|
$ 149.84 | |||||
| 34 | W11744012 | Housing, Blower (Replaces: W10135254) |
|
$ 109.58 | |||||
| 35 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 195.73 | |||||
| 36 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 166.76 | |||||
| 37 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 46.72 | ||||
| 38 | WP8573028 | Thermostat, High-limit 205 F (96 C) (Replaces: 8573028) |
|
$ 101.93 | |||||
| 39 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 40 | W11782150 | Baffle, Drum (3) (Replaces: 697693) |
|
Immediately | $ 86.01 | ||||
| 41 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 196.59 | |||||
| 42 | W11086603 | Grille, Outlet (Replaces: 8563756) |
|
Immediately | $ 33.21 | ||||
| 43 | WP3392519 | Thermal Fuse (Replaces: 3392519) |
|
Immediately | $ 22.46 |
