SRDE520SBW (BOM: P1183104W W) | The Brick : Appliance Model Lookup

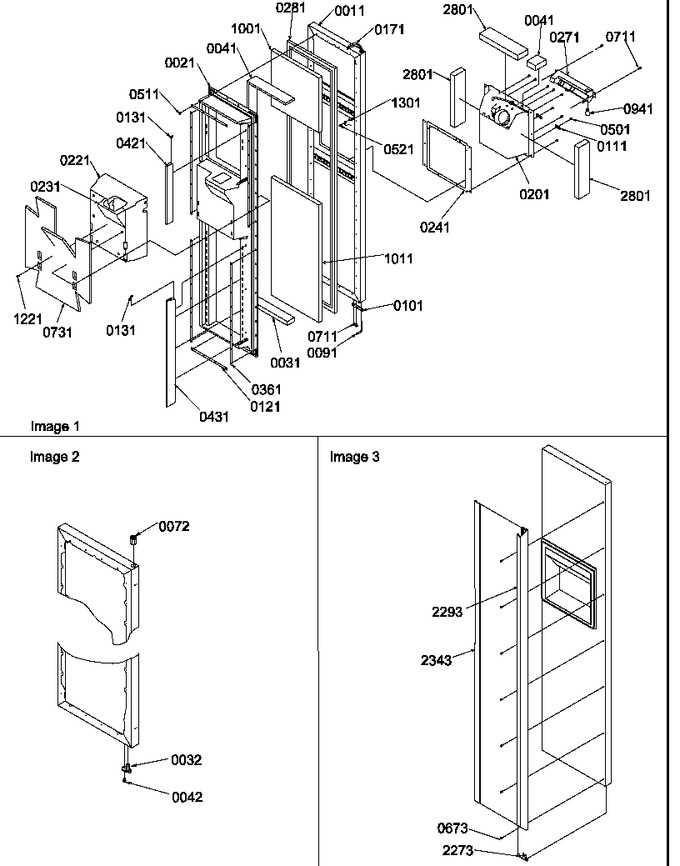

Diagram #	Part Number	Description	Availability	Ships	Price
11	10881204W	Ass`y, Fz Dr (white)	Appelez-nous	-
21	10860801	Liner, Frz Dr I/w	Appelez-nous	-
31	B0523563	Insulation Ft. K	Appelez-nous	-
32	R0181181	Closure-w Door (Replaces: 12113201)		Immediately	$ 7.55
41	B0523562	Insul. By The Ft.	Appelez-nous	-
42	WP98165	Screw, Sm (Replaces: M0211018)			$ 8.57
72	WP67004977	Bushing, Top (Replaces: C8964401)			$ 8.20
91	WPB5705307	Tube, Plastic , 68`` (Replaces: B5705321)			$ 13.05
101	C8972403	Stop, Door (blk)	Appelez-nous	-
111	C8992901	Clip	Appelez-nous	-
121	C8982801	Retainer, Door Liner	Appelez-nous	-
131	10063102	Clip, Door Dike	Appelez-nous	-
171	12053601	Harness Frz Dr	Appelez-nous	-
201	Y00000000	See Note Bk Cavity Assy -- (see Image 1 Page 10 & 11 For Assy Breakdown)	Appelez-nous	-
221	10895401	Insul., I/w Cavity	Appelez-nous	-
231	10895501	Insul, Ice Chute	Appelez-nous	-
241	D7791003	Gasket Cavity	Appelez-nous	-
271	Y00000000	See Note Elec Brkt Assy -- (see Image 2 Page 10 & 11 For Assy Breakdown)	Appelez-nous	-
281	10359702	Gasket (w Frz Dr)	Appelez-nous	-
361	D7828601	Retainer, Door Liner	Appelez-nous	-
421	10063207	Dike, I & W	Appelez-nous	-
431	10063208	Dike, I & W	Appelez-nous	-
501	M0216517	Screw	Appelez-nous	-
511	M0219730	Screw			$ 7.65
521	WP489399	Screw, Se (Replaces: M0232929)			$ 7.30
673	WP98165	Screw, Sm (Replaces: M0211018)			$ 8.57
711	WP98165	Screw, Sm (Replaces: M0211018)			$ 8.57
731	10941501	Insul, Batt	Appelez-nous	-
941	M0360401	Light Bulb (220/250) 6 Watt	Appelez-nous	-
1001	12016901	Insul, Batt (ref. Door)	Appelez-nous	-
1011	12016902	Insul, Batt (ref. Door)	Appelez-nous	-
1221	M0311601	Plug, Button	Appelez-nous	-
1301	M0272803	Lock Washer	Appelez-nous	-
2273	10871206	Cap- E Fz Hndl Bot.	Appelez-nous	-
2293	12106208	Handle, Frz Dr (ebony)	Appelez-nous	-
2343	10945919	Insert, E Handle	Appelez-nous	-
2801	B0523596	Insul. By The Ft.	Appelez-nous	-
