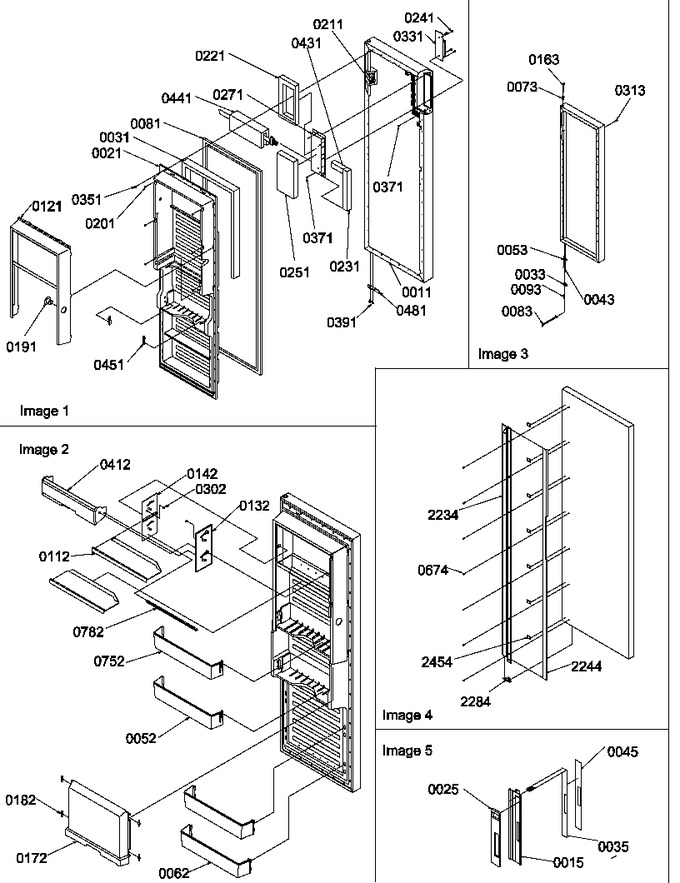

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10898202W		Ass`y, Ref Door		Appelez-nous	-
15	12106403		Handle, Ref Dr (ebony)		Appelez-nous	-
21	10861502		Liner-ref Dr		Appelez-nous	-
25	10887804		Gasket-control		Appelez-nous	-
31	B0523590		Insul., Batt		Appelez-nous	-
33	12113301		Closure, Door (wht)		Appelez-nous	-
35	10519401		Assy, Keyboard		Appelez-nous	-
43	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
45	10603107		Faceplate-e Elect		Appelez-nous	-
52	10520410		Shelf, Chiller		Appelez-nous	-
53	12113401		Closure, Door (wht)		Appelez-nous	-
62	10521814		Shelf-ref Door		Appelez-nous	-
73	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
81	10359701		Gasket, Door (w Ref)		Appelez-nous	-
83	M0335412		Connector-12 Pin		Appelez-nous	-
93	10561601		Assy, Hinge Pin		Appelez-nous	-
112	10883801		Shelf, Dairy		Appelez-nous	-
121	10519004		Frame-chiller		Appelez-nous	-
132	12102907		Track, Dairy Door		Appelez-nous	-
142	12102908		Track, Dairy Door		Appelez-nous	-
163	12211603		Harness, Ref Door		Appelez-nous	-
172	10519208		Door, Chiller		Appelez-nous	-
182	10162101		Glide-igloo Door		Appelez-nous	-
191	12033201		Tunnel-air		Appelez-nous	-
201	10165101		Clip-tubular		Appelez-nous	-
211	B5629063		Insulation Batt		Appelez-nous	-
221	10271101		Insul. Batt.		Appelez-nous	-
231	B5629064		Insulation, Batt		Appelez-nous	-
241	M0217204		Screw		Appelez-nous	-
251	B5612028		Insulation Batt		Appelez-nous	-
271	D7832904		Cover,p.c. Board		Appelez-nous	-
302	M0500706		Seal-o Ring		Appelez-nous	-
313	10281002		Grommet, Screw		Appelez-nous	-
331	10866002		Board-lv Pc X		Appelez-nous	-
351	M0219730		Screw				$ 7.65
371	M0232804		Screw		Appelez-nous	-
391	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
412	12103001		Door-dairy		Appelez-nous	-
431	B5629065		Insulation, Batt		Appelez-nous	-
441	B0523585		Insulation Batt Per Foot		Appelez-nous	-
451	10202001		Clip, Retainer		Appelez-nous	-
481	C8972403		Stop, Door (blk)		Appelez-nous	-
674	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
752	10520412		Shelf, Chiller		Appelez-nous	-
782	12102801		Rod-retainer		Appelez-nous	-
2234	10887906		Ass`y, Ref Hndl		Appelez-nous	-
2244	10945903		Insert, E Handle		Appelez-nous	-
2284	10871403		Cap-e Hndl Bot		Appelez-nous	-
2454	10875801		Clip-handle		Appelez-nous	-
