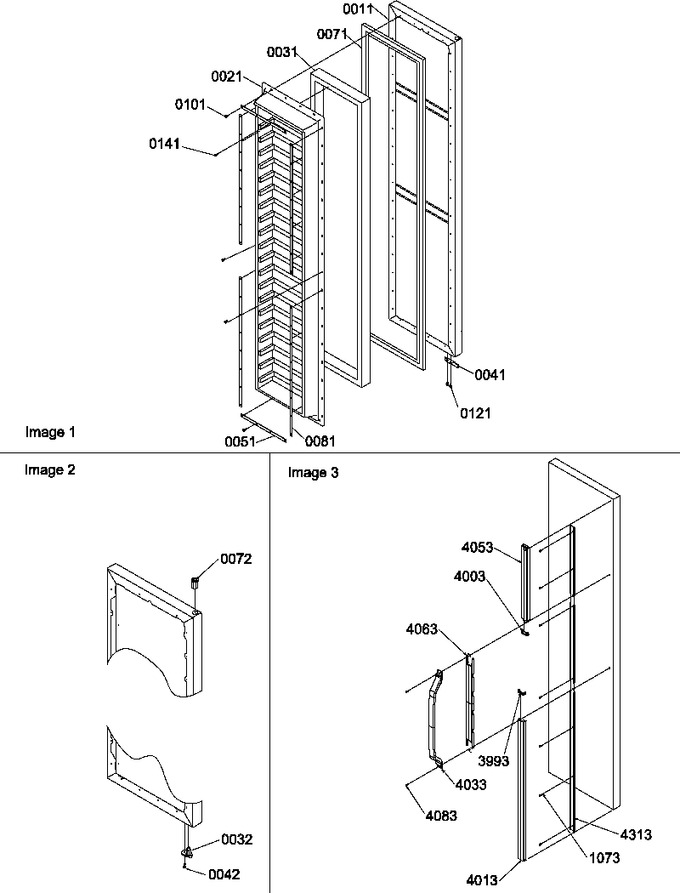

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881501W		Assy Frz Dr Fm		Appelez-nous	-
21	10522001		Liner, Frz Door (conv.)		Appelez-nous	-
31	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 218.83
32	R0181181		Closure, Door (wht)   (Replaces: 12113202)			Immediately	$ 6.80
41	C8972405		Stop-w Door		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
51	C8982801		Retainer, Door Liner		Appelez-nous	-
71	10359709		Gasket (w Frz Dr)		Appelez-nous	-
72	10961001		Bushing, Door (wht)		Appelez-nous	-
81	D7828601		Retainer, Door Liner		Appelez-nous	-
101	M0219730		Screw				$ 7.65
121	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
141	M0226705		Screw, Shoulder		Appelez-nous	-
1073	M0216517		Screw		Appelez-nous	-
3993	10953112		Insert, Trim(white)		Appelez-nous	-
4003	10953111		Insert, Trim(white)		Appelez-nous	-
4013	10810507		Trim, Bottom Door W Frz		Appelez-nous	-
4033	12139304		Handle, Door (white)		Appelez-nous	-
4053	10810307		Trim-w Top Fz Dr		Appelez-nous	-
4063	10810401		Trim-w Ctr Dr		Appelez-nous	-
4083	R9800670		Screw, Tf   (Replaces: M0238731)				$ 9.52
4313	10852213		Retainer-fz Trim		Appelez-nous	-
