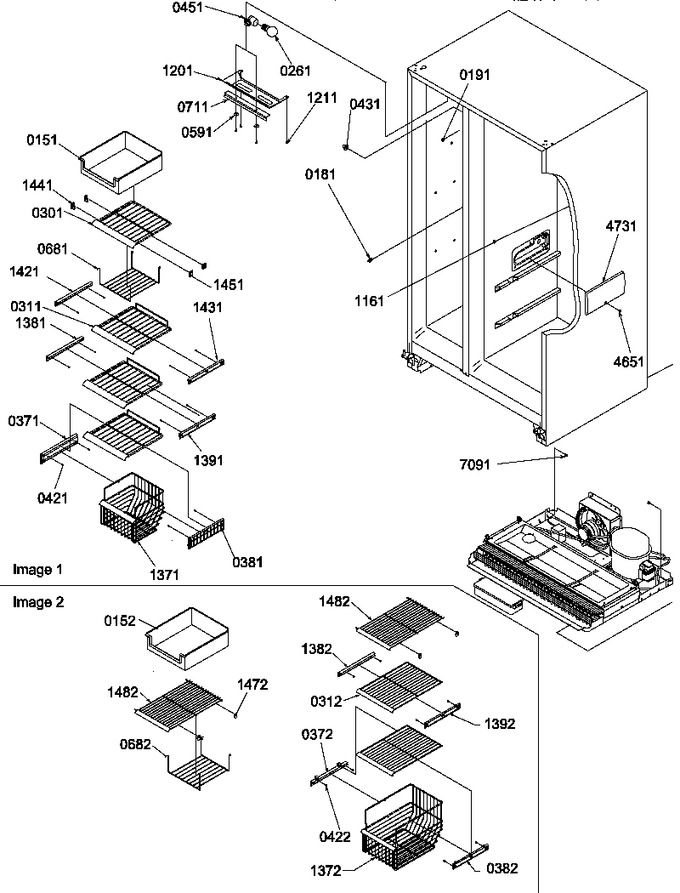

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
152	D7806201		Pan, Ice		Appelez-nous	-
181	M0322202		Tie Wire		Appelez-nous	-
191	M0580007		Grommet, Screw		Appelez-nous	-
261	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
312	12353302		Shelf, Stationary Sl/frz		Appelez-nous	-
372	12015102		Rail, Shelf (lt)		Appelez-nous	-
382	10972802		Rail, Shelf (rt)		Appelez-nous	-
422	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
431	M0310305		Plug, Button (wht)		Appelez-nous	-
451	C8973405		Socket-light		Appelez-nous	-
591	M0270508		Washer		Appelez-nous	-
682	12013901		Rack, Freezer		Appelez-nous	-
711	10014715		Shield, Light		Appelez-nous	-
1161	M0311602		Plug, Button (white)		Appelez-nous	-
1201	10493302		Cover, Frz Light		Appelez-nous	-
1211	M0238846		Screw-sm		Appelez-nous	-
1372	12352207		Basket, 13`` Frz		Appelez-nous	-
1382	12012802		Rail, L. Shelf		Appelez-nous	-
1392	10991402		Rail, R Shelf		Appelez-nous	-
1472	C8973801		Support, Frz Shelf				$ 8.35
1482	12353102		Shelf-sta Fz		Appelez-nous	-
4651	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 7.43
4731	Y10270101		Cover-light		Appelez-nous	-
7091	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 7.25
