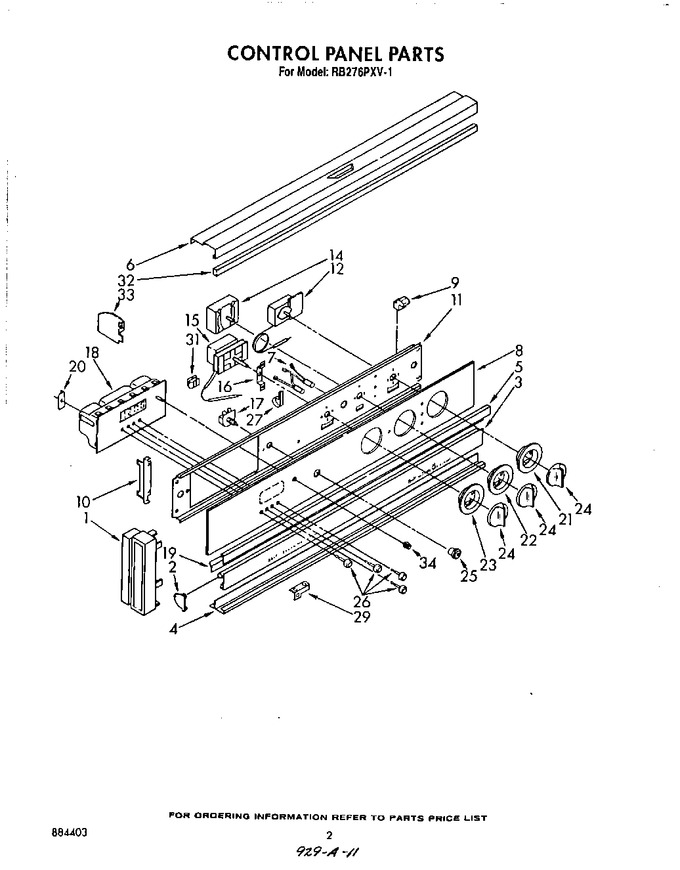

02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Lower Oven Door , Lit/optional


06 - Upper Oven Door


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488627		End Cap (screw (2))   (Replaces: 342055)				$ 7.30
1	342043		End Cap (screw (4))		Appelez-nous	-
1	3148622		End Cap (right Side)		Appelez-nous	-
1	3148621		End Cap (left Side)		Appelez-nous	-
2	3148471		End Trim, Vent (left Side)		Appelez-nous	-
2	3148472		End Trim, Vent (right Side)		Appelez-nous	-
3	3149603		Door, Vent		Appelez-nous	-
4	342043		Screw (2)		Appelez-nous	-
4	3148618		Trim, Bottom		Appelez-nous	-
5	3149349		Trim, Center		Appelez-nous	-
5	342043		Screw (2)		Appelez-nous	-
6	3148624		Rail, Top		Appelez-nous	-
6	WP488627		Screw (2)   (Replaces: 342055)				$ 7.30
7	311802		Upper Oven Heating		Appelez-nous	-
7	3148720		Upper Locked		Appelez-nous	-
7	3148807		Lower Oven (on & Heating)		Appelez-nous	-
8	3149168		Control Panel, Glass		Appelez-nous	-
9	3149882		Retainer, Glass (4)		Appelez-nous	-
10	98520		Screw (4)		Appelez-nous	-
10	3148635		Bracket, Control Panel (2)		Appelez-nous	-
11	330500		Control Bracket		Appelez-nous	-
12	WP98997		Clip   (Replaces: 98997)				$ 10.48
12	3148934		Thermostat, Oven Upper		Appelez-nous	-
12	WP313808		Screw, 6-32 X 9/32 (2)   (Replaces: 313808)				$ 7.47
14	155023		Screw, 8-32 X 1/4 (2)			Immediately	$ 7.91
14	310006		Selector Switch		Appelez-nous	-
15	311479		Thermostat, Oven Lower		Appelez-nous	-
16	WP313808		Screw, 6-32 X 9/32 (2)   (Replaces: 313808)				$ 7.47
16	311492		Bracket, Thermostat		Appelez-nous	-
16	311491		Screw (4)		Appelez-nous	-
17	3148465		Switch, Oven Light		Appelez-nous	-
17	312796		Lockwasher		Appelez-nous	-
18	3149807		Timer, Digital		Appelez-nous	-
19	311263		Seal, Top Rail		Appelez-nous	-
20	313864		Bracket, Timer		Appelez-nous	-
20	98520		Screw, 8a X 5/16 (2)		Appelez-nous	-
21	3149172		Escutcheon, Thermostat		Appelez-nous	-
22	WP311068		Escutcheon, Selector Switch   (Replaces: 3149174)				$ 52.22
23	3149173		Escutcheon, Thermostat (lower Oven)		Appelez-nous	-
23	254225		Screw, 8 X 1/4		Appelez-nous	-
24	3149175		Knob, Control (3)		Appelez-nous	-
25	3149170		Bezel Switch (1)		Appelez-nous	-
26	3149177		Knob, Timer (4)		Appelez-nous	-
27	98520		Screw		Appelez-nous	-
27	308609		Strain Relief (3)		Appelez-nous	-
29	3149142		Shield, Air		Appelez-nous	-
29	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.45
31	313570		Clip, Tube (thermostat)		Appelez-nous	-
32	311263		Seal, Backguard		Appelez-nous	-
33	314129		Bracket, Timer		Appelez-nous	-
33	98520		Screw, 8a X 5/16 (2)		Appelez-nous	-
34	3149176		Knob, Timer		Appelez-nous	-
	LIT3149595		Installation Instructions		Appelez-nous	-
	LIT3148599		Tech Sheet		Appelez-nous	-
	LIT313358		Cooking Guide		Appelez-nous	-
	LIT884403		Repair Parts List		Appelez-nous	-
	LIT3148318		Guide, Use & Care		Appelez-nous	-
