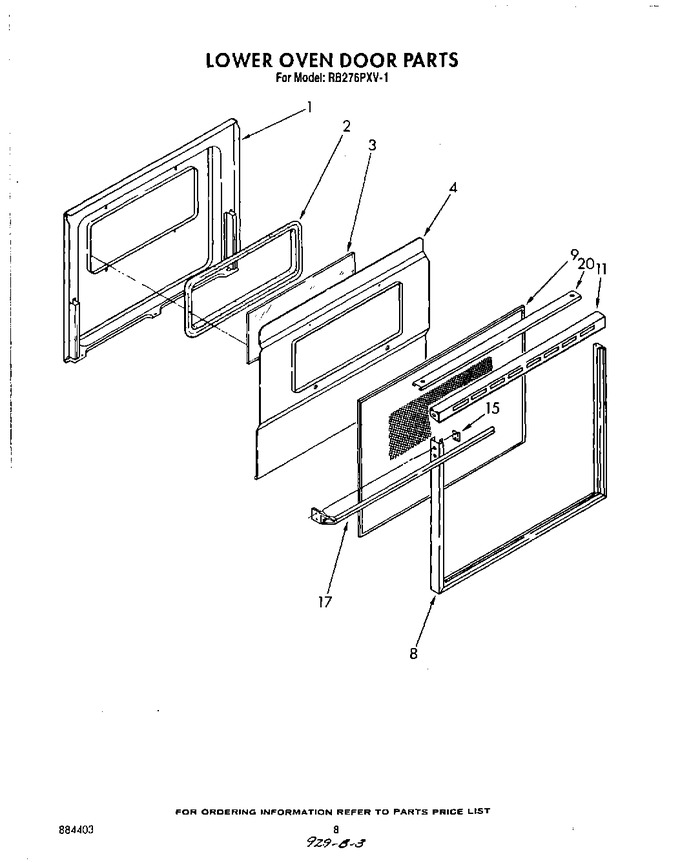

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311056		Screw, (4)		Appelez-nous	-
1	3170710		Liner, Door		Appelez-nous	-
1	WP488729		Screw, 8 X 1/2 (3)   (Replaces: 3148107)			Immediately	$ 7.45
2	3148183		Seal, Pano Glass				$ 7.41
3	3148179		Glass, Inner 30``		Appelez-nous	-
4	307748		Screw, 10 X 1/2 Black (4)		Appelez-nous	-
4	3148443		Screw (2)		Appelez-nous	-
4	3148287		Retainer, Insulation		Appelez-nous	-
8	3148235		Frame, Door 30``		Appelez-nous	-
9	3149049		Glass, Outer		Appelez-nous	-
11	3149355		Top, Door Frame		Appelez-nous	-
11	307748		Screw, 10a X 1/2		Appelez-nous	-
15	3148282		Clip (2)				$ 8.69
17	WP355515		Screw, Handle (4)   (Replaces: 355515)				$ 7.63
17	3149354		Handle, Oven Door		Appelez-nous	-
20	261881		Rotisserie (top Oven Only)		Appelez-nous	-
20	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
20	242831		Wire (14 Ga. 200 C Red)				$ 342.23
20	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
20	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
20	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
20	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
20	3181363		Cap, Top Door		Appelez-nous	-
20	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
20	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
20	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
20	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
20	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
20	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
20	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
