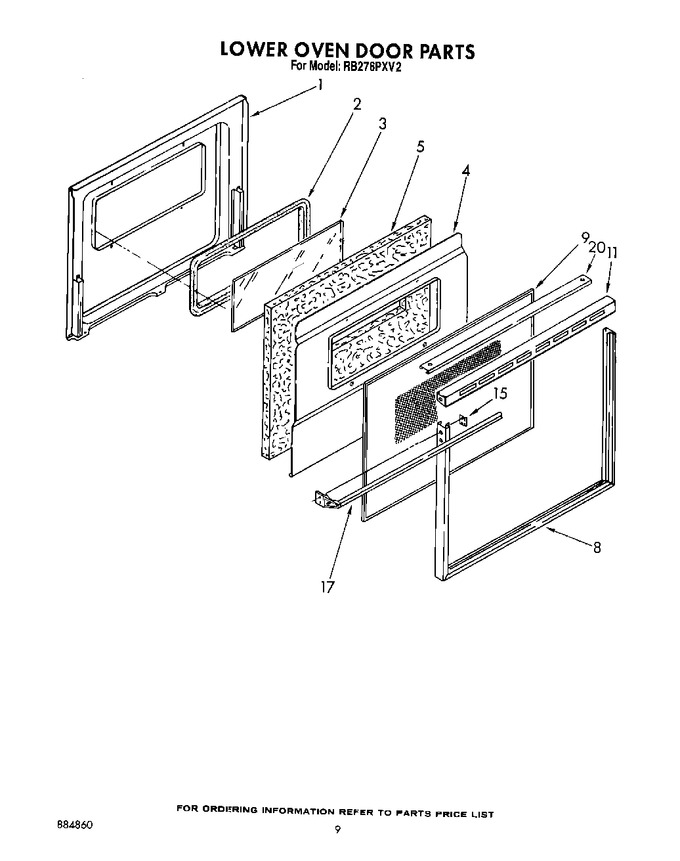

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3170710		Liner, Door		Appelez-nous	-
1	WP488729		Screw, 8 X 1/2 (3)   (Replaces: 3148107)			Immediately	$ 7.45
1	311056		Screw, (4)		Appelez-nous	-
2	3148183		Seal, Pano Glass				$ 7.41
3	3148179		Glass, Inner 30``		Appelez-nous	-
4	3148287		Retainer, Insulation		Appelez-nous	-
5	3147951		Insulation, Door		Appelez-nous	-
8	3148235		Frame, Door 30``		Appelez-nous	-
9	3149049		Glass, Outer		Appelez-nous	-
11	3149355		Top, Door Frame		Appelez-nous	-
15	3148282		Clip (2)				$ 8.69
17	WP355515		Screw, Handle (2)   (Replaces: 355515)				$ 7.63
17	3149354		Handle, Oven Door		Appelez-nous	-
20	3181363		Cap, Top		Appelez-nous	-
