View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel, Lit/optional
03 - Upper Oven
04 - Lower Oven
05 - Upper Oven Door
06 - Lower Oven Door
07 - Wiring Harness, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

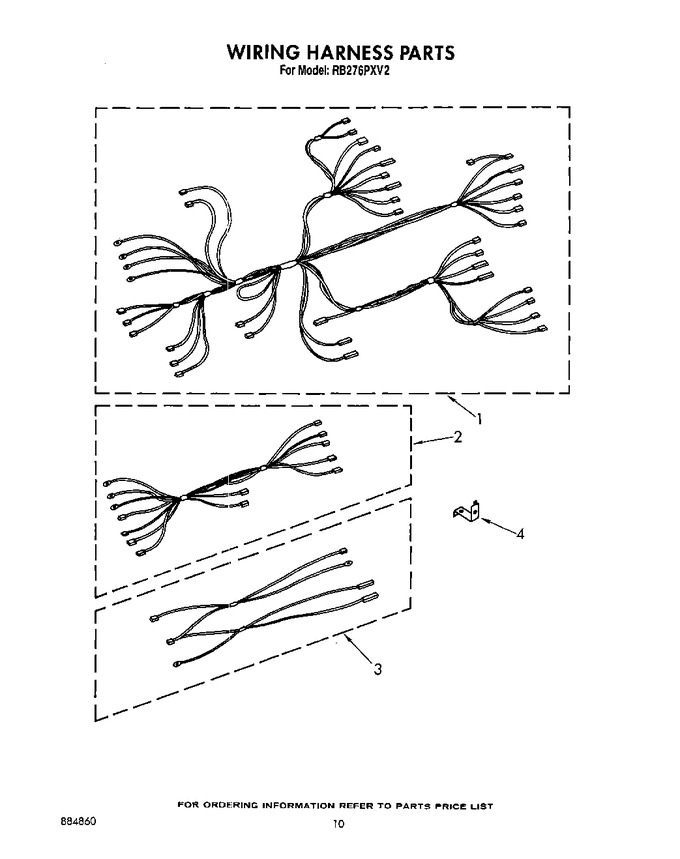

| 1 | 3148595 | Wiring Harness (main) |
|
- | |||||
| 2 | 3148824 | Harness, Wire (lower Oven) |
|
- | |||||
| 3 | 311471 | Wiring Harness Lower Oven Light |
|
- | |||||
| 4 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 4 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 4 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 4 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 4 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 4 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 4 | 261810 | Touch-up Oven (1 Oz.) |
|
- | |||||
| 4 | 261582 | Grease |
|
- | |||||
| 4 | 261881 | Rotisserie (top Oven Only) |
|
- | |||||
| 4 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 4 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 4 | 311582 | Stand Off |
|
- | |||||
| 4 | WP488729 | Screw (Replaces: 3148107) |
|
Immediately | $ 7.45 | ||||
| 4 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 4 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 4 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 4 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 4 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 4 | 242829 | Wire, Red 12 Ga. 150~c |
|
- |
