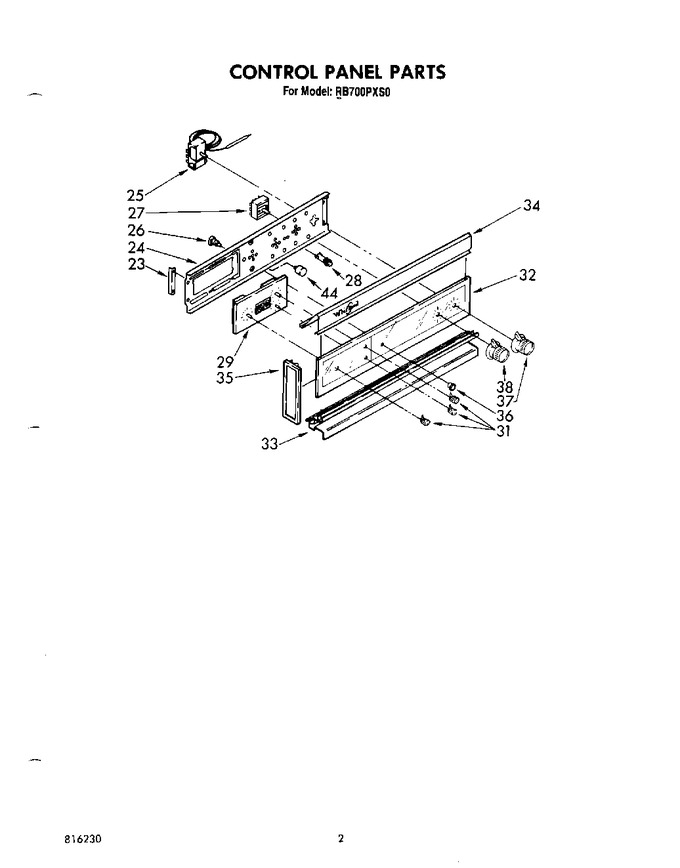

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	866395		Support, Control Bracket (2)		Appelez-nous	-
23	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
24	816222		Bracket, Control		Appelez-nous	-
24	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
25	816070		Thermostat, Oven		Appelez-nous	-
25	877919		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
26	866138		Switch, Oven Light		Appelez-nous	-
26	98754		Nut, 3/8-27		Appelez-nous	-
27	816225		Switch, Oven Selector		Appelez-nous	-
27	877919		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
28	868172		Indicator, Light (clean)		Appelez-nous	-
29	816221		Timer, (digital)		Appelez-nous	-
31	816066		Knob, Timer (3)		Appelez-nous	-
32	816226		Panel, Glass (control)		Appelez-nous	-
32	866454		Tape, Foam (16``)		Appelez-nous	-
33	816063		Base, Control Panel		Appelez-nous	-
33	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
34	816227		Top, Control Panel		Appelez-nous	-
34	816065		Screw, 10-24 X 1/2 (5)		Appelez-nous	-
35	868995		End Cap (r.h.)		Appelez-nous	-
35	868996		End Cap (l.h.)		Appelez-nous	-
35	868430		End Cap (screw, 10-24 X 1/2 (4))		Appelez-nous	-
36	866053		Bezel, Switch		Appelez-nous	-
37	868997		Knob, Thermostat		Appelez-nous	-
38	868998		Knob, Selector		Appelez-nous	-
44	834956		Bumper, Stem (2)		Appelez-nous	-
