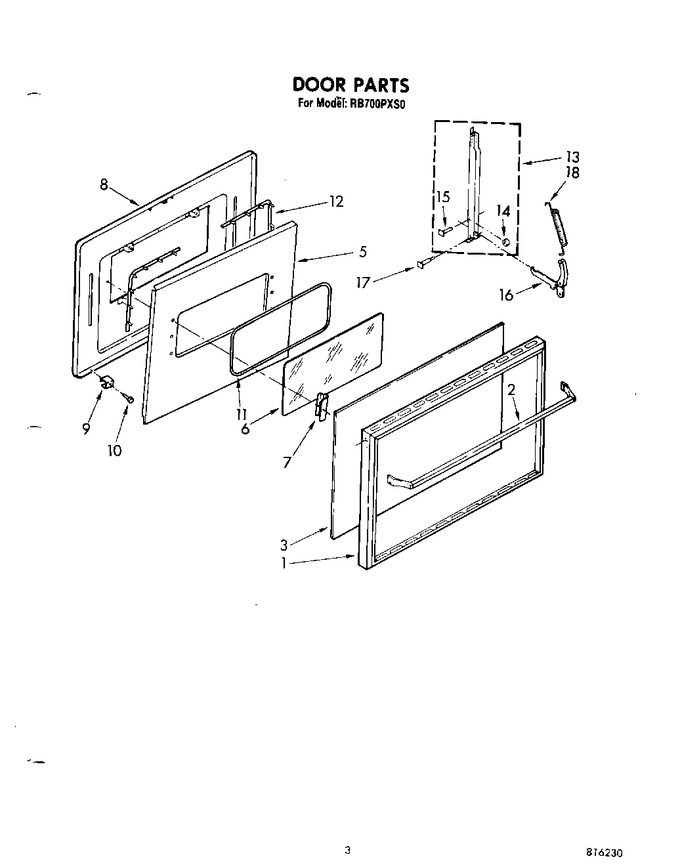

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868430		Screw, 10-24 X 1/2 (6)		Appelez-nous	-
1	877887		Frame, Oven Door		Appelez-nous	-
2	877889		Screw, 6-32 X 1/2 (4)		Appelez-nous	-
2	877888		Handle, Oven Door		Appelez-nous	-
3	877890		Glass, Outer		Appelez-nous	-
5	340184		Screw, 10-16 X 1-1/2   (Replaces: 877702)				$ 12.70
5	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
5	877895		Panel, Air Wash		Appelez-nous	-
6	877893		Glass, Inner		Appelez-nous	-
7	877894		Retainer, Glass		Appelez-nous	-
8	681151		Screw, 10-24 X 1/2 (7)		Appelez-nous	-
8	816229		Liner, Oven Door		Appelez-nous	-
8	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
9	877613		Spacer, Door (4)		Appelez-nous	-
10	866444		Bumper (4)		Appelez-nous	-
11	877892		Seal, Inner		Appelez-nous	-
12	866428		Gasket, Oven Door (left Side)		Appelez-nous	-
12	866427		Gasket, Oven Door (right Side)		Appelez-nous	-
13	865972		Channel, Assembly (2)		Appelez-nous	-
14	834471		Roller,\ Door\ Stop (2)		Appelez-nous	-
15	241423		Rivet (2)		Appelez-nous	-
16	865640		Arm, Hinge		Appelez-nous	-
17	877884		Pin, Hinge		Appelez-nous	-
18	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
18	241314		Spring, Door		Appelez-nous	-
18	816058		Washer (2)		Appelez-nous	-
