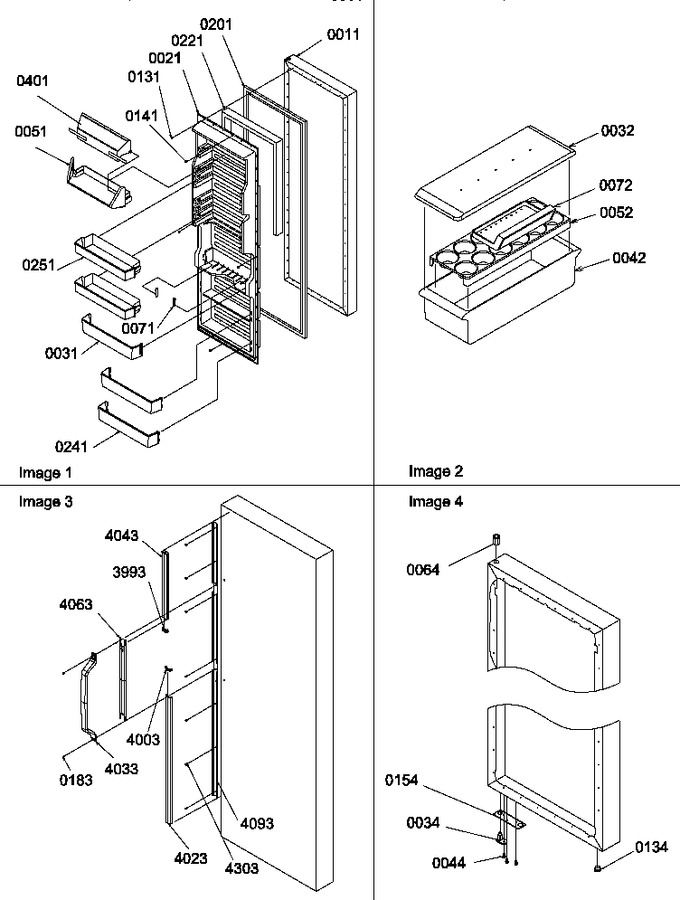

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10876105W		Assy, Ref Dr Fm (white)		Appelez-nous	-
21	12123001		Liner-ref Dr		Appelez-nous	-
31	10520410		Shelf, Chiller		Appelez-nous	-
32	10436404		Lid, Utility				$ 60.85
34	R0181181		Closure, Door (wht)   (Replaces: 12113202)			Immediately	$ 7.55
42	10423129		Bin-utility		Appelez-nous	-
44	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	12083301		Shelf, Dairy		Appelez-nous	-
52	10436506		Tray, Egg				$ 8.28
64	10961001		Bushing, Door (wht)		Appelez-nous	-
71	10202001		Clip, Retainer		Appelez-nous	-
72	10310901		Tray, Butter		Appelez-nous	-
131	M0219730		Screw				$ 7.65
134	M0310308		Plug, Button (wht)		Appelez-nous	-
141	M0226705		Screw, Shoulder		Appelez-nous	-
145	10527307		Door, Dairy		Appelez-nous	-
153	10953112		Insert, Trim(white)		Appelez-nous	-
154	10161803		Door Stop		Appelez-nous	-
163	10953111		Insert, Trim(white)		Appelez-nous	-
183	10810508		Trim, Bottom Door W Ref		Appelez-nous	-
183	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
193	12139304		Handle, Door (white)		Appelez-nous	-
201	10359708		Gasket, Door (w Ref)		Appelez-nous	-
203	10810308		Trim-w Top Ref Dr		Appelez-nous	-
207	M0216517		Screw		Appelez-nous	-
221	B0523563		Insulation Ft. K		Appelez-nous	-
223	10810401		Trim-w Ctr Dr		Appelez-nous	-
241	10521814		Shelf-ref Door		Appelez-nous	-
251	10111009		Bucket-igloo		Appelez-nous	-
253	10852214		Retainer-ref Trim		Appelez-nous	-
