SELECT A DIAGRAM

Diagram for 01 - Cabinet Back
01 - Cabinet Back

Diagram for 02 - Cabinet Parts
02 - Cabinet Parts

Diagram for 03 - Drain System, Rollers, And Evap Assy
03 - Drain System, Rollers, And Evap Assy

Diagram for 04 - Fz Door
04 - Fz Door

Diagram for 05 - Fz Shelves And Light
05 - Fz Shelves And Light

Diagram for 06 - Ice Bucket Auger And Ice Maker Parts
06 - Ice Bucket Auger And Ice Maker Parts

Diagram for 07 - Ice Maker/control Assy
07 - Ice Maker/control Assy

Diagram for 08 - Ice/water Cavity/elec Brkt/toe Grille
08 - Ice/water Cavity/elec Brkt/toe Grille

Diagram for 09 - Machine Compartment
09 - Machine Compartment

Diagram for 10 - Ref Door And Accessories
10 - Ref Door And Accessories

Diagram for 11 - Ref/fz Shelves,lights And Hinges
11 - Ref/fz Shelves,lights And Hinges


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
9 12077313 Top Hinge-e Ct Appelez-nous -
11 M0108001 Clamp, Tube Appelez-nous -
12 M0213129 Screw Appelez-nous -
13 10968801 Seal-crisp Front Appelez-nous -
14 10968801 Seal-crisp Front Appelez-nous -
22 10809604 Shelf-full Sta Appelez-nous -
23 10882701 Band, Crisper Appelez-nous -
24 10882701 Band, Crisper Appelez-nous -
29 10111206 Bucket-fz Door Appelez-nous -
33 10852501 Slide, Crisper/deli Appelez-nous -
34 10852501 Slide, Crisper/deli Appelez-nous -
44 Y10370066 Glass, Shelf Appelez-nous -
55 C8907235 Retainer Pkg Appelez-nous -
55 10014716 Shield, Light Appelez-nous -
63 10782901 Frame,crisper Appelez-nous -
64 10782901 Frame,crisper Appelez-nous -
73 W11214483 Screw, Mach   (Replaces: M0202321) In-Stock Immediately $ 13.25

74 12113003 Trim-crisper Fr Appelez-nous -
79 10783201 Pan,crisper Appelez-nous -
82 10783803 Frame, Deli Appelez-nous -
83 10481001 Roller, Pan Special Order $ 10.99

83 10493202 Cover, Ref. Light Appelez-nous -
84 10481001 Roller, Pan Special Order $ 10.99

91 12156201 Socket, Dual Lamp Appelez-nous -
93 M0238846 Screw-sm Appelez-nous -
93 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 9.71

94 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 9.71

95 12223003 Shim, Top Hinge Appelez-nous -
95 M0580007 Grommet, Screw Appelez-nous -
99 10882801 Assy, Crisper Frame Appelez-nous -
103 10164812 Grille-control Appelez-nous -
109 10882808 Assy, Crisp Frame Appelez-nous -
112 10876302 Director-deli Appelez-nous -
113 10164702 Control-air Appelez-nous -
125 10863601 Foil-hng Cover Appelez-nous -
129 10783110 Shelf-top Crisper Appelez-nous -
132 10784201 Pan, Deli Appelez-nous -
135 10849506 Cover-w Hinge Appelez-nous -
142 10481001 Roller, Pan Special Order $ 10.99

152 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 9.71

153 10481001 Roller, Pan Special Order $ 10.99

165 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

173 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 9.71

181 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 9.52

197 M0270508 Washer Appelez-nous -
211 WP4373559 Union K   (Replaces: B5706901) Special Order $ 73.10

225 WP8281196 Screw-mach   (Replaces: M0202327) In-Stock Immediately $ 6.80

229 D7750603 Grille, Sump (white) Appelez-nous -
249 10809604 Shelf-full Sta Appelez-nous -
251 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 7.43

255 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 6.57


    View Diagram in Separate Window     Print Icon   Print Part List

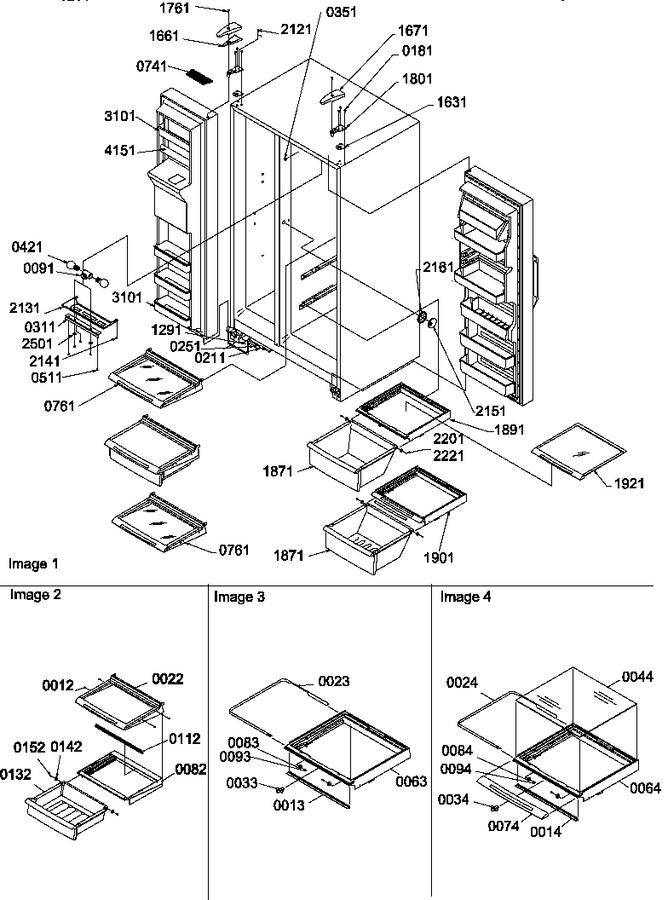

Diagram for SXD27TW (BOM: P1302802W W)
