SELECT A DIAGRAM

Diagram for 02 - Body And Control , Lit/optional
02 - Body And Control , Lit/optional

Diagram for 03 - Surface Unit Kit Rck 886-1
03 - Surface Unit Kit Rck 886-1

Diagram for 04 - Grill Kit Rck891
04 - Grill Kit Rck891

Diagram for 05 - Griddle Kit Rck884
05 - Griddle Kit Rck884

Diagram for 06 - Surface Unit Kit Rck889-1
06 - Surface Unit Kit Rck889-1

Diagram for 07 - Rotisserie Kit Rck 892
07 - Rotisserie Kit Rck 892

Diagram for 08 - Smooth Top Rck 893
08 - Smooth Top Rck 893


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 242886 Rotisserie Kit, Complete Special Order $ 243.50

2 877596 Plate, Front Appelez-nous -
3 877597 Plate, Rear Appelez-nous -
4 868454 Rod, Skewer Appelez-nous -
6 241210 Handle, Rod Appelez-nous -
7 241209 Holder, Meat Appelez-nous -
8 868455 Motor, Rotisserie Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

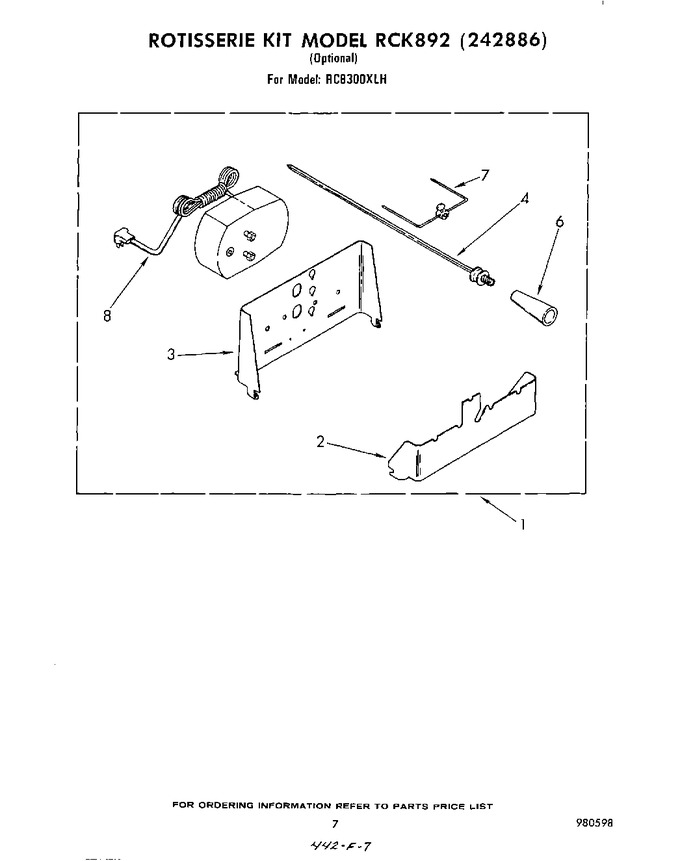

Diagram for RC8300XLH
