SELECT A DIAGRAM

Diagram for 02 - Body And Control , Lit/optional
02 - Body And Control , Lit/optional

Diagram for 03 - Surface Unit Kit Rck 886-1
03 - Surface Unit Kit Rck 886-1

Diagram for 04 - Grill Kit Rck891
04 - Grill Kit Rck891

Diagram for 05 - Griddle Kit Rck884
05 - Griddle Kit Rck884

Diagram for 06 - Surface Unit Kit Rck889-1
06 - Surface Unit Kit Rck889-1

Diagram for 07 - Rotisserie Kit Rck 892
07 - Rotisserie Kit Rck 892

Diagram for 08 - Smooth Top Rck 893
08 - Smooth Top Rck 893


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 242887 Smooth Top Module, Complete Special Order $ 293.39

2 877598 Pan, Surface Unit Appelez-nous -
3 868437 Receptacle, Male Appelez-nous -
4 868438 Terminal, Male (4) Appelez-nous -
4 486525 Screw, 8-32 X 3/16 (4) Appelez-nous -
6 868814 Insulator, Receptacle Appelez-nous -
7 866272 Pushnut, 1/8 Appelez-nous -
7 WP486754 Screw, 6-32 X 5/16 (3)   (Replaces: 680406) Special Order $ 7.21

7 868440 Bracket Appelez-nous -
9 877599 Unit, Assembly Appelez-nous -
10 877600 Bracket (2) Appelez-nous -
10 WP486754 Screw, 6-32 X 5/16 (4)   (Replaces: 680406) Special Order $ 7.21

11 877602 Limit, Control (long) Appelez-nous -
11 877601 Limit, Control (short) Appelez-nous -
12 877611 Cooktop, Glass Appelez-nous -
14 877612 Frame, Cooktop Appelez-nous -
14 868382 Screw, 8-32 X 3/8 (4) Appelez-nous -
15 WP486754 Screw, 6-32 X 5/16   (Replaces: 680406) Special Order $ 7.21

15 868866 Handle Assembly Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

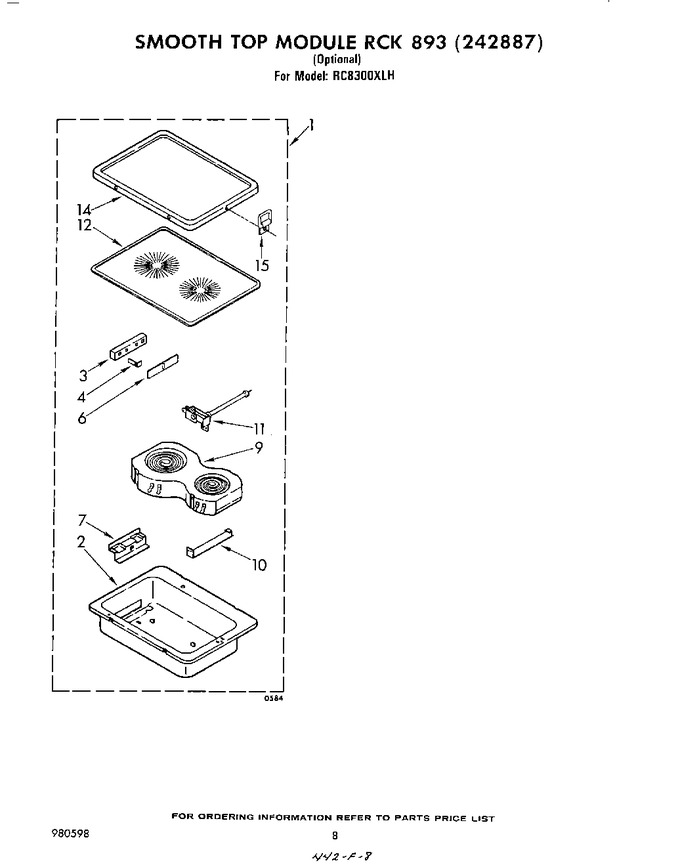

Diagram for RC8300XLH
