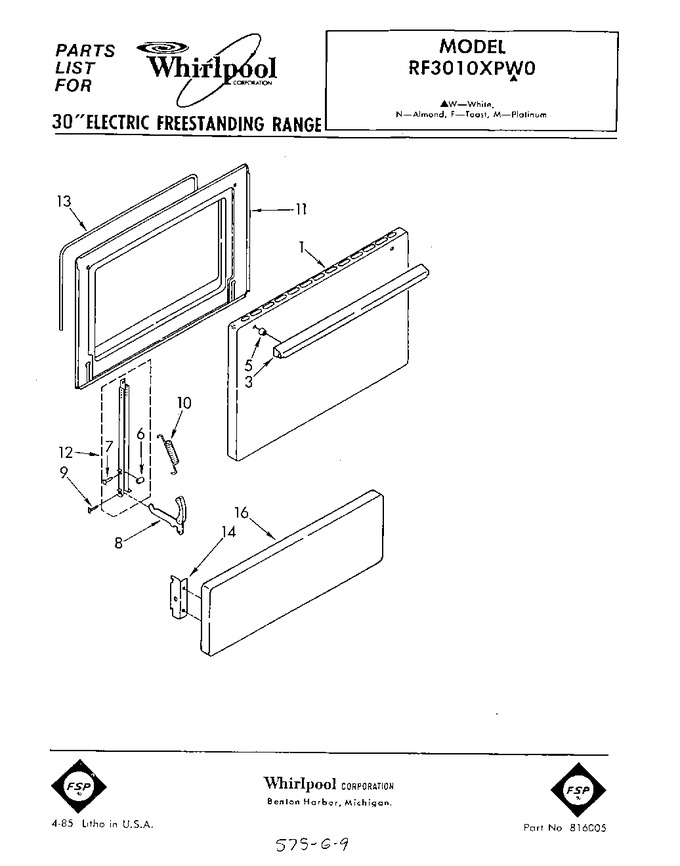

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	877988		Panel, Oven Door (platinum)		Appelez-nous	-
1	868596		Panel, Oven Door (almond)		Appelez-nous	-
1	877994		Panel, Oven Door (toast)		Appelez-nous	-
1	868593		Panel, Oven Door (white)		Appelez-nous	-
1	868430		Panel, Oven Door (screw, 10-24 X 1/2 (5))		Appelez-nous	-
1	877993		Panel, Oven Door (screw 10-24 X 1-1/4 (2))		Appelez-nous	-
3	877990		Door Handle Assembly		Appelez-nous	-
5	877991		Spacer, Handle (2)		Appelez-nous	-
6	834471		Roller, Stop (2)		Appelez-nous	-
7	241423		River (2)		Appelez-nous	-
8	865640		Arm Assembly (2)		Appelez-nous	-
9	877884		Pin, Hinge (2)		Appelez-nous	-
10	241314		Spring, Door (2)		Appelez-nous	-
11	877633		Liner, Door		Appelez-nous	-
12	241422		Washer (2)		Appelez-nous	-
12	868430		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
12	865972		Channel Assembly		Appelez-nous	-
13	877634		Gasket, Door (alternate)		Appelez-nous	-
13	865977		Gasket, Door (alternate)		Appelez-nous	-
14	865659		Bracket, Panel ((r.h.))		Appelez-nous	-
14	681151		Bracket, Panel (screw, 10-24 X 1/2 (4))		Appelez-nous	-
14	865660		Bracket, Panel ((l.h.))		Appelez-nous	-
16	877995		Panel, Lower (platinum)		Appelez-nous	-
16	865877		Panel, Lower (white)		Appelez-nous	-
16	877992		Panel, Lower (almond)		Appelez-nous	-
16	877996		Panel, Lower (toast)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
