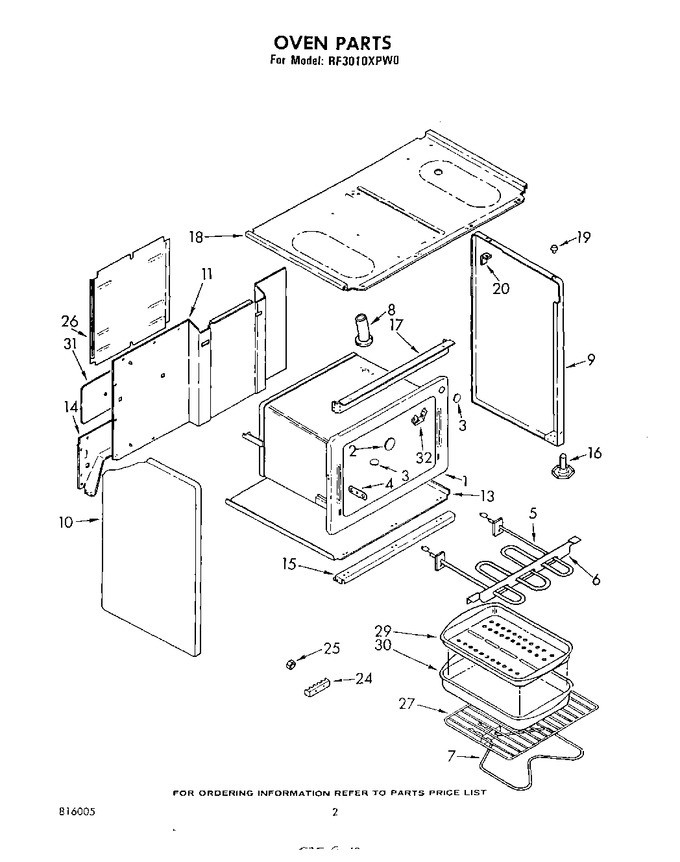

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	877807		Oven (conventional)		Appelez-nous	-
2	486146		Screw, 10-24 X1/2 (2)				$ 12.83
2	877808		Cover, Light Hole		Appelez-nous	-
3	251379		Button, Plug		Appelez-nous	-
4	486146		Screw, 10-24 X 1/2				$ 12.83
4	877986		Bracket Thermo Bulb		Appelez-nous	-
5	865934		Unit, Broil		Appelez-nous	-
5	486146		Screw, 10-24 X1/2 (2)				$ 12.83
6	486146		Screw, 10-24 X1/2 (2)				$ 12.83
6	866429		Hanger, Broil Unit		Appelez-nous	-
7	WP865940		Unit Bake (alternate)   (Replaces: 868964)				$ 138.75
7	WP865940		Unit Bake (alternate)   (Replaces: 868963)				$ 138.75
7	486146		Unit Bake (screw, 10-24 X 1/2 (2))				$ 12.83
8	241428		Screw, 10-24 X 3/8 (2)		Appelez-nous	-
8	868350		Tube, Oven Vent		Appelez-nous	-
9	877998		End Panel, R.h. (toast)		Appelez-nous	-
9	877770		End Panel, R.h. (white)		Appelez-nous	-
9	877972		End Panel, R.h. (screw (2))		Appelez-nous	-
9	877997		End Panel, R.h. (platinum)		Appelez-nous	-
9	877771		End Panel, R.h. (almond)		Appelez-nous	-
10	877775		End Panel, L.h. (white)		Appelez-nous	-
10	877972		End Panel, L.h. (screw (2))		Appelez-nous	-
10	877999		End Panel, L.h. (platinum)		Appelez-nous	-
10	816000		End Panel, L.h. (toast)		Appelez-nous	-
10	877776		End Panel, L.h. (almond)		Appelez-nous	-
11	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
11	877968		Back, Range		Appelez-nous	-
13	868087		Panel, Weldment (bottom)		Appelez-nous	-
14	877780		Gusset, Rear (r.h.)		Appelez-nous	-
14	681151		Screw, 10-24 X 1/2 (18)		Appelez-nous	-
14	877781		Gusset, Rear (l.h.)		Appelez-nous	-
15	868120		Channel, Oven Support		Appelez-nous	-
15	834649		Screw, 10-24 X 7/8 (3)		Appelez-nous	-
16	868880		Leg Leveler (4)		Appelez-nous	-
17	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
17	877970		Bracket, Cooktop		Appelez-nous	-
18	681151		Screw, 10-24 X 1/2 (6)		Appelez-nous	-
18	877971		Burner Box		Appelez-nous	-
19	868363		Bumper, Cooktop (4)		Appelez-nous	-
20	868128		Gusset, Backguard (2)		Appelez-nous	-
24	WP8203546		Terminal Block   (Replaces: 241212)			Immediately	$ 27.12
24	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
25	487836		Hex Nut, 10-32 (6)		Appelez-nous	-
26	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
26	868159		Cover Wiring, Lower		Appelez-nous	-
26	486608		Washer Flat (3)		Appelez-nous	-
26	681151		Screw, 10-24 X 1/2 (3)		Appelez-nous	-
27	865983		Rack, Oven (1)		Appelez-nous	-
29	4396923		Grille, Broiler   (Replaces: 263063)			Immediately	$ 54.64
30	4396923		Pan, Broiler   (Replaces: 263062)			Immediately	$ 54.64
31	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
31	877969		Counterbalance (4)		Appelez-nous	-
32	98005642		Clip, Thermo Bulb (2)   (Replaces: 259362)			Immediately	$ 78.37
