SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Unit


04 - Door


05 - Oven


06 - Wiring Harness, Lit/optional

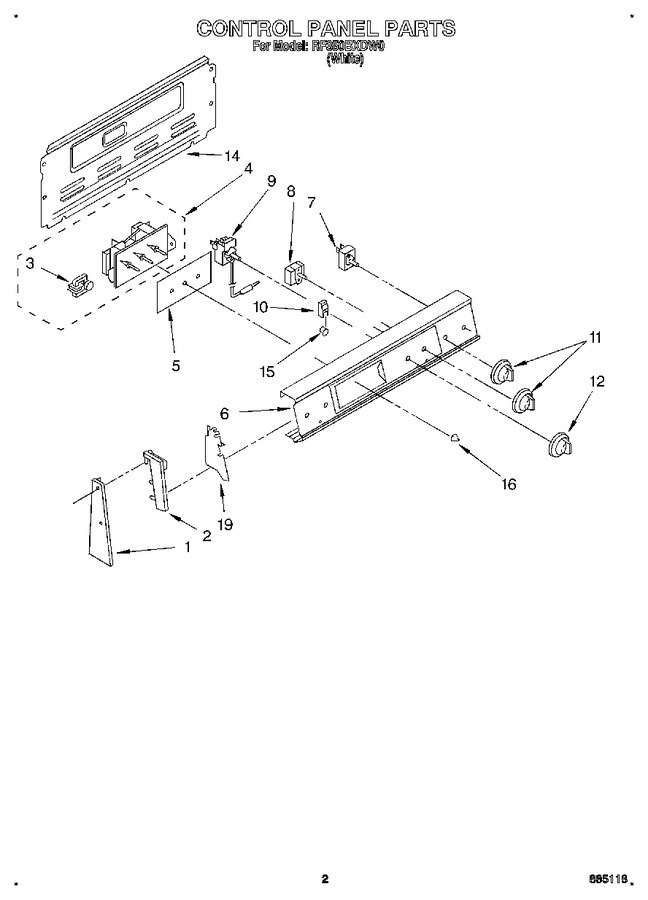

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187672		End Trim L.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.62
1	3187671		End Trim R.h.		Appelez-nous	-
2	3187791		End Cap R.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	3187792		End Cap L.h.		Appelez-nous	-
3	309822		Motor, Timer		Appelez-nous	-
4	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.68
4	661458		Timer, Clock		Appelez-nous	-
5	313513		Glass, Timer		Appelez-nous	-
6	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.62
6	3188678		Panel, Control		Appelez-nous	-
7	5500-287		Switch, Infinite (6`` Element (3))   (Replaces: 3148951)			Immediately	$ 49.03
7	5500-287		Switch, Infinite (8`` Element (1))   (Replaces: 3148953)			Immediately	$ 49.03
7	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
8	308119		Screw (2)		Appelez-nous	-
8	3169311		Switch, Selector (5 Position)		Appelez-nous	-
9	3169526		Thermostat, Oven		Appelez-nous	-
9	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.47
10	3169457		Indicator Light (surface Unit)		Appelez-nous	-
10	314031		Indicator Light (oven)				$ 62.88
11	WP3196231		Knob, (5) (inf. & Selector)   (Replaces: 3188721)			Immediately	$ 19.80
12	3188724		Knob (temp)		Appelez-nous	-
14	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.62
14	3187332		Rear Cover Control Panel		Appelez-nous	-
15	313101		Lens, Amber (2)		Appelez-nous	-
16	3169182		Knob (3)		Appelez-nous	-
19	WP965173		Screw, No.8x3/8 (2)   (Replaces: 246132)			Immediately	$ 10.68
19	313608		Shield (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
