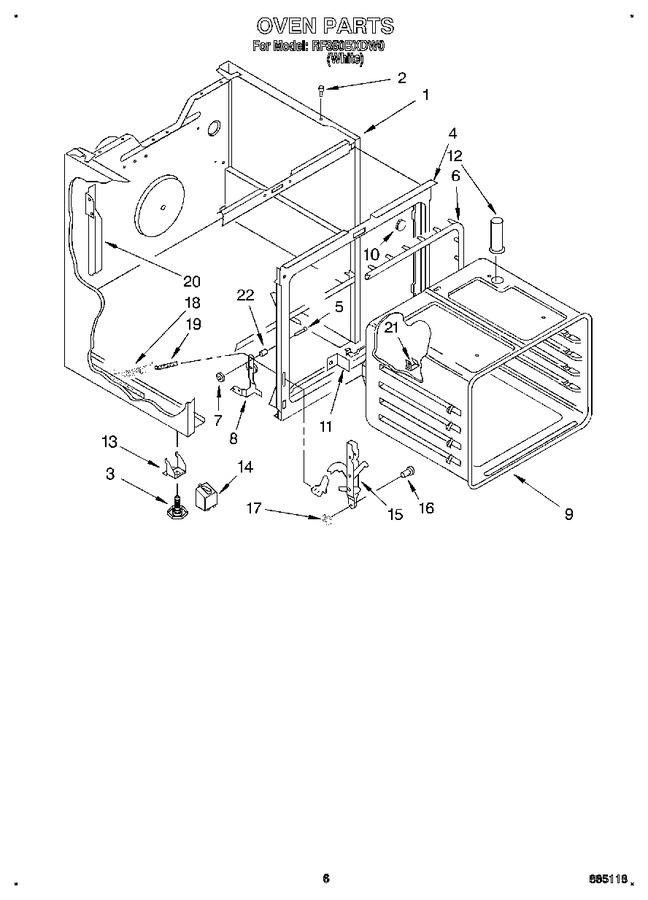

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 7.62 | ||||
| 1 | 330086 | Main Chassis (white) |
|
- | |||||
| 1 | WP681414 | Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 2 | 238614 | Bumper, Cooktop (2) |
|
$ 76.31 | |||||
| 3 | 3169499 | Leg Leveling (4) |
|
- | |||||
| 4 | 3150537 | Screw (1) |
|
- | |||||
| 4 | 3176718 | Frame Front |
|
- | |||||
| 4 | 311056 | Screw (2) |
|
- | |||||
| 5 | 307985 | Pin, Hinge |
|
$ 29.54 | |||||
| 6 | 3169251 | Seal, Door |
|
- | |||||
| 7 | 308306 | Pushnut |
|
- | |||||
| 8 | 3176711 | Hinge, L.h. |
|
- | |||||
| 8 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 8 | 3176710 | Hinge, R.h. |
|
- | |||||
| 9 | 3176612 | Oven (30`` Pyro) |
|
- | |||||
| 9 | WP681414 | Screw (4) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 10 | 308535 | Button, Plug |
|
- | |||||
| 11 | 311220 | Bracket, Oven (mounting) |
|
- | |||||
| 11 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 12 | W11222268 | Vent, Oven (Replaces: 3169108) |
|
$ 93.87 | |||||
| 12 | 307748 | Screw, 10a X 1/2 (2) |
|
- | |||||
| 13 | WP681414 | Screw (2) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 13 | 3169418 | Support, Foot (2) |
|
- | |||||
| 14 | 3169448 | Cover, Foot (2) |
|
- | |||||
| 15 | 3176709 | Channel, Arm (2) |
|
- | |||||
| 16 | WP307986 | Hinge Pin (2) (Replaces: 307986) |
|
$ 14.23 | |||||
| 17 | 307594 | Ring, Retainer (2) |
|
- | |||||
| 18 | 308127 | Spring, Oven Door (2) |
|
$ 11.75 | |||||
| 19 | WP308125 | Anchor, Spring (2) (Replaces: 308125) |
|
$ 11.47 | |||||
| 20 | 313196 | Support, L.h. Channel |
|
- | |||||
| 20 | 313197 | Support, R.h. Channel |
|
- | |||||
| 20 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 21 | 98005642 | Clip, Therm Bulb (2) (Replaces: 313382) |
|
Immediately | $ 78.37 | ||||
| 22 | 3169094 | Insulation, Oven Back |
|
- | |||||
| 22 | 309111 | Snubber, Door (2) |
|
- | |||||
| 22 | 3169093 | Insulation, (oven Wrapper) |
|
- |
