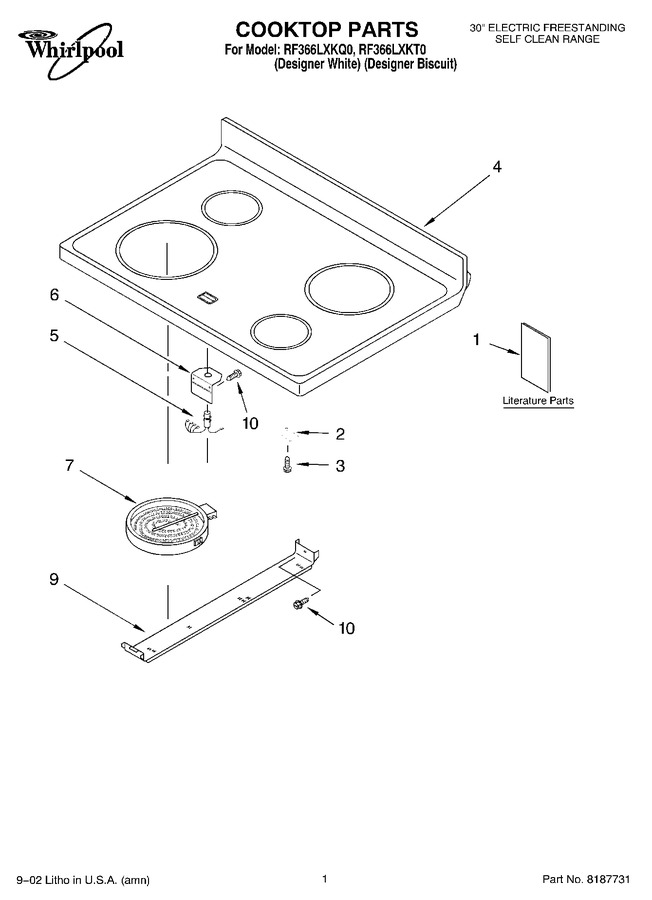

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Chassis


04 - Drawer And Broiler


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8053714		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8523048		Literature Parts (installation Instr (template))		Appelez-nous	-
1	LIT8522770		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT8053294		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	3149191		Spring, Locator				$ 9.45
3	WP3196170		Screw   (Replaces: 3196170)				$ 6.80
4	8524052		Cooktop (white)		Appelez-nous	-
4	8524056		Cooktop (biscuit)		Appelez-nous	-
5	8523740		Light, Indicator (hot Surface)		Appelez-nous	-
6	8524063		Bracket, Ind Light		Appelez-nous	-
7	W10823696		Element, Surface (2500 W Lf-rr)   (Replaces: 8523692)			Immediately	$ 192.83
7	W10823699		Element, Surface (1500w - Lr & Rf)   (Replaces: 8523697)			Immediately	$ 152.96
9	3196454		Bracket, Element		Appelez-nous	-
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80

    View Diagram in Separate Window       Print Part List
