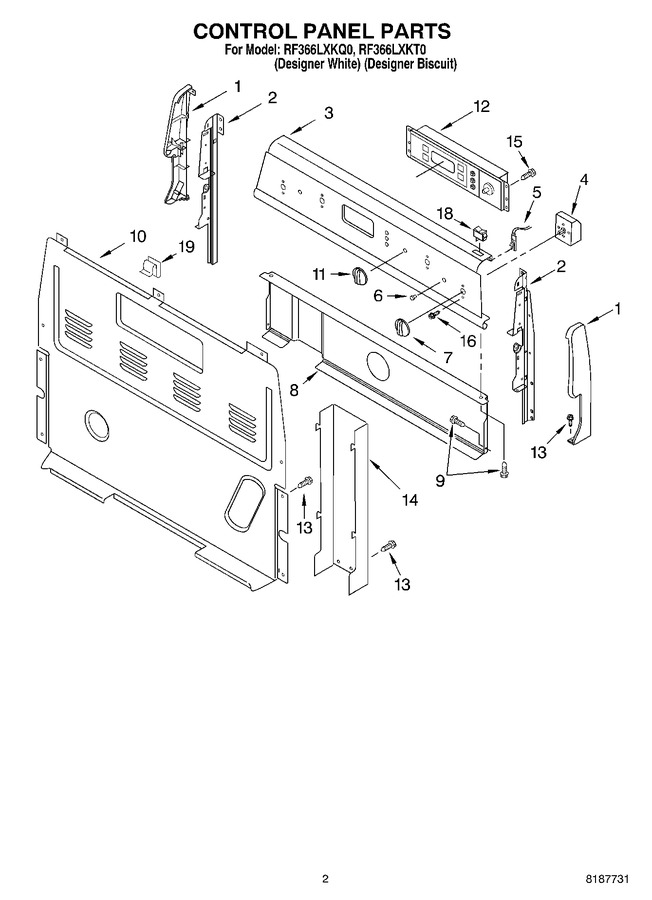

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186190		Endcap (white Left Hand)		Appelez-nous	-
1	3186191		Endcap (white Right Hand)		Appelez-nous	-
1	8272507		Endcap (biscuit Left Hand)		Appelez-nous	-
1	8272508		Endcap (biscuit Right Hand)		Appelez-nous	-
2	8523408		Support, Endcap (left Hand)		Appelez-nous	-
2	8523409		Support, Endcap (right Hand)		Appelez-nous	-
3	8273511		Panel, Backguard (biscuit)		Appelez-nous	-
3	3196978		Panel, Backguard (white)		Appelez-nous	-
4	WP3148952		Switch, Infinite (right Front)   (Replaces: 3148952)			Immediately	$ 62.56
4	WP3149400		Switch, Infinite (right Rear)   (Replaces: 3148954)			Immediately	$ 81.46
5	WP8523265		Light, Indicator Surface Unit (2)   (Replaces: 8523265)			Immediately	$ 91.76
6	WP3196068		Lens, Light (2)   (Replaces: 3196068)			Immediately	$ 5.63
7	WP8522565		Knob, Infinite (4) (white)   (Replaces: 8522565)			Immediately	$ 18.81
7	8522567		Knob, Infinite (4) (biscuit)				$ 15.97
8	8523280		Shield, Heat		Appelez-nous	-
9	W10276642		Screw   (Replaces: 4449746)				$ 5.77
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 197.14
11	8522615		Knob (white)		Appelez-nous	-
11	8522617		Knob (biscuit)		Appelez-nous	-
12	8273801		Control, Range (biscuit)		Appelez-nous	-
12	3196968		Control-range (white)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
14	WPW10326122		Cover, Box   (Replaces: 3195133)				$ 125.64
15	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
18	8273501		Switch, Rocker (biscuit)		Appelez-nous	-
18	3149360		Switch, Rocker (white)				$ 89.01
19	WP8273564		Clip   (Replaces: 8273564)				$ 11.39

    View Diagram in Separate Window       Print Part List
