SELECT A DIAGRAM

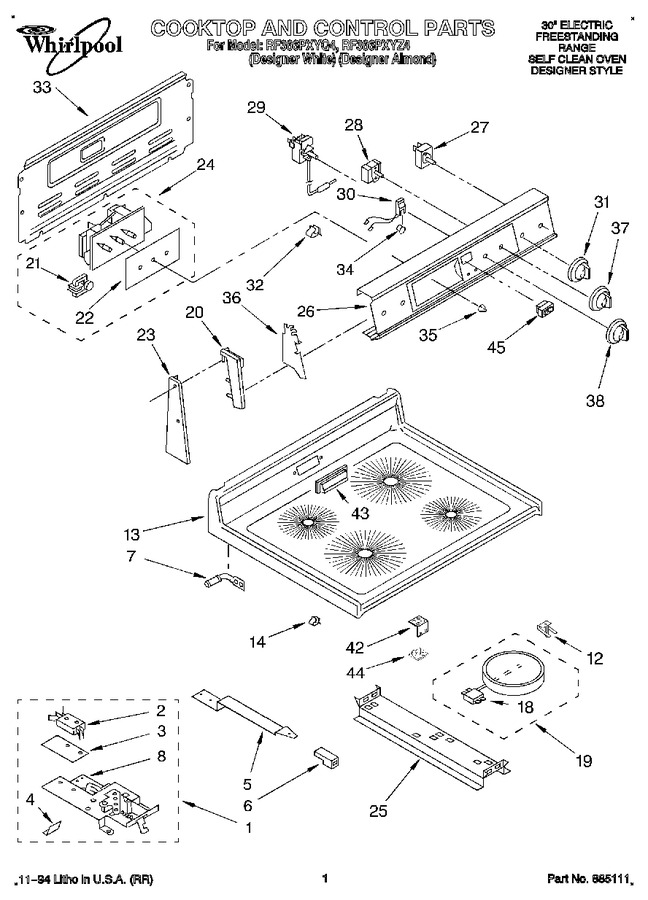

01 - Cooktop And Control


02 - Unit


03 - Door And Drawer


04 - Oven


05 - Wiring Harness, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.62
1	3171153		Latch Assembly		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	313035		Shield, Latch Terminal		Appelez-nous	-
4	309258		Screw, 6 X 3/8b (2)		Appelez-nous	-
5	3150175		Handle, Latch		Appelez-nous	-
5	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
6	3150174		Knob, Latch (designer White Mdl.)		Appelez-nous	-
6	3169459		Knob, Latch (designer Almond Mdl.)		Appelez-nous	-
6	155023		Knob, Latch (screw)			Immediately	$ 7.91
7	3169384		Pin, Hinge (2)		Appelez-nous	-
7	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.62
8	3148668		Latch Mechanism		Appelez-nous	-
12	WP486754		Screw (8)   (Replaces: 246119)				$ 7.21
12	3149191		Spring, Element (8)				$ 9.45
13	WP308685		Cooktop (screw (2))   (Replaces: 3367670)			Immediately	$ 7.08
13	3176528		Cooktop (almond)		Appelez-nous	-
13	3176530		Cooktop (designer White)		Appelez-nous	-
14	311311		Clip, Wire		Appelez-nous	-
18	3183974		Limiter, Temp. (2100w - Rr)		Appelez-nous	-
18	3149129		Limiter, Temp. (1400w - Lr)		Appelez-nous	-
18	3183972		Limiter, Temp. (1700w - Rf)		Appelez-nous	-
18	3183973		Limiter, Temp. (2400w - Lf)		Appelez-nous	-
19	3183649		Element, Surface (includes No. 18) (2400w - Lf)		Appelez-nous	-
19	3183648		Element, Surface (includes No. 18) (2100w - Rr)		Appelez-nous	-
19	3183647		Element, Surface (includes No. 18) (1700w - Rf)		Appelez-nous	-
19	3183646		Element, Surface (includes No. 18) (1400w - Lr)		Appelez-nous	-
20	3150443		End Cap (r.h. Almond Mdl.)		Appelez-nous	-
20	254225		End Cap (screw (4))		Appelez-nous	-
20	313231		End Cap (l.h. White Mdl.)		Appelez-nous	-
20	313230		End Cap (r.h. White Mdl.)		Appelez-nous	-
20	3150444		End Cap (l.h. Almond Mdl.)		Appelez-nous	-
21	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 10.68
21	309822		Motor, Timer		Appelez-nous	-
22	313513		Glass, Timer		Appelez-nous	-
23	313190		Trim, End Cap (l.h. White Mdl.)		Appelez-nous	-
23	313191		Trim, End Cap (r.h. White Mdl.)		Appelez-nous	-
23	254225		Trim, End Cap (screw (4))		Appelez-nous	-
23	3169469		Trim, End Cap (l.h. Almond Mdl.)		Appelez-nous	-
23	3169468		Trim, End Cap (r.h. Almond Mdl.)		Appelez-nous	-
24	3169272		Timer, Clock (designer White Mdl)		Appelez-nous	-
24	WP965173		Timer, Clock (screw (2))   (Replaces: 246132)			Immediately	$ 10.68
24	3169470		Timer, Clock (almond Mdl.)		Appelez-nous	-
25	98520		Screw (6)		Appelez-nous	-
25	3148809		Bracket, Mounting		Appelez-nous	-
26	312604		Control Panel (screw (4))		Appelez-nous	-
26	3183822		Control Panel (almond Mdl.)		Appelez-nous	-
26	3184401		Control Panel (designer White Mdl)		Appelez-nous	-
27	WP3148952		Switch, Infinite (lr & Rf)   (Replaces: 3148952)			Immediately	$ 62.56
27	308119		Switch, Infinite (screw (8))		Appelez-nous	-
27	WP3148955		Switch, Infinite (lf & Rr)   (Replaces: 3148955)				$ 137.05
28	3148419		Switch, Selector		Appelez-nous	-
28	WP965173		Screw (2)   (Replaces: 3150344)			Immediately	$ 10.68
29	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.47
29	3185625		Thermostat, Oven		Appelez-nous	-
30	314031		Light, Indicator (oven Unit)				$ 62.88
30	3150662		Light, Indicator (surface Unit)		Appelez-nous	-
31	3183117		Switch, Infinite (4) (designer White Mdl)				$ 24.34
31	3183114		Switch, Infinite (4) (almond Mdl.)		Appelez-nous	-
32	3169449		Clip, Snap-in		Appelez-nous	-
33	3187332		Cover, Control		Appelez-nous	-
33	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.62
34	313101		Lens, Amber (2)		Appelez-nous	-
35	3169184		Knob, Timer (3) (designer White Mdl)		Appelez-nous	-
35	3169467		Knob, Timer (3) (almond Mdl.)		Appelez-nous	-
36	313608		Shield, Glass (2)		Appelez-nous	-
36	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.68
37	3183111		Knob, Selector (almond Mdl.)		Appelez-nous	-
37	3183116		Knob, Selector (designer White Mdl)		Appelez-nous	-
38	3183104		Knob, Thermostat (designer White Mdl)		Appelez-nous	-
38	3183131		Knob, Thermostat (almond Mdl.)		Appelez-nous	-
42	3149032		Bracket, Light Mtg.		Appelez-nous	-
43	3149190		Cover, Vent (clip (2))		Appelez-nous	-
43	3149011		Cover, Vent (white)		Appelez-nous	-
43	3149012		Cover, Vent (almond)		Appelez-nous	-
44	3169395		Light, Indicator		Appelez-nous	-
45	3149360		Switch, Rocker (designer White Mdl)				$ 89.01
45	3169466		Switch, Rocker (almond Mdl.)		Appelez-nous	-
