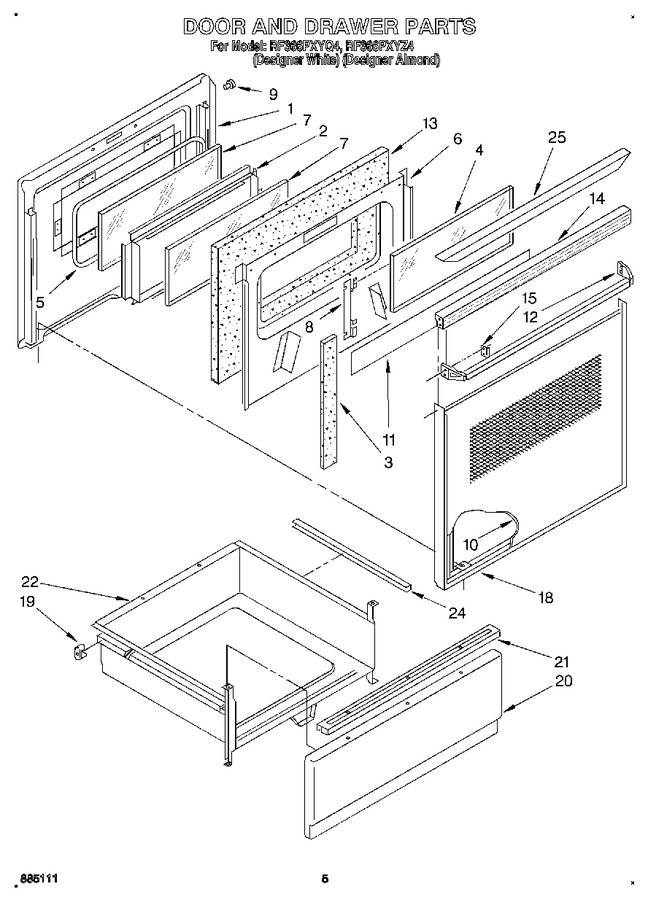

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3172218 | Liner, Door |
|
- | |||||
| 2 | 3185647 | Screw, 8-18x3/8 (6) |
|
- | |||||
| 2 | 3148234 | Frame, Glass |
|
- | |||||
| 3 | 3148441 | Seal, Foam |
|
- | |||||
| 4 | 3169202 | Glass, Clear |
|
- | |||||
| 5 | 3148183 | Seal, Window |
|
$ 7.41 | |||||
| 6 | 3148159 | Retainer, Insulation |
|
- | |||||
| 6 | 3185647 | Screw, 8-18x3/8 (4) |
|
- | |||||
| 7 | WP3169203 | Glass, Inner & Outer (Replaces: 3169203) |
|
$ 142.50 | |||||
| 8 | 3185647 | Screw, 8-18x3/8 (4) |
|
- | |||||
| 8 | 3148187 | Retainer, Glass (2) |
|
- | |||||
| 9 | 3148182 | Bumper (4) |
|
- | |||||
| 10 | 3149049 | Glass, Door (white Mdl.) |
|
- | |||||
| 10 | 3149050 | Glass, Door (almond Mdl.) |
|
- | |||||
| 11 | 3169191 | Foil |
|
- | |||||
| 12 | 3169460 | Handle, Door (almond Mdl.) |
|
- | |||||
| 12 | 3149354 | Handle, Door (white Mdl.) |
|
- | |||||
| 12 | WP355515 | Handle, Door (screw (4)) (Replaces: 355515) |
|
$ 7.63 | |||||
| 13 | 3147951 | Insulation, Door |
|
- | |||||
| 14 | 3149355 | Top, Door (white Mdl.) |
|
- | |||||
| 14 | 3169458 | Top, Door (almond Mdl.) |
|
- | |||||
| 15 | 3148282 | Clip (2) |
|
$ 8.69 | |||||
| 18 | WP308685 | Frame, Glass (screw, (5) Designer White Mdl) (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 18 | 3187921 | Frame, Glass (almond Mdl.) |
|
- | |||||
| 18 | 3148235 | Frame, Glass (white Mdl.) |
|
- | |||||
| 18 | 307748 | Frame, Glass (screw (3)) |
|
- | |||||
| 19 | WP308685 | Screw (2) (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 19 | 307980 | Glide, Rear |
|
- | |||||
| 20 | 307939 | Panel, Drawer (almond) |
|
- | |||||
| 20 | WP488627 | Panel, Drawer (screw, (3) 8-18 X 1/2) (Replaces: 313349) |
|
$ 7.30 | |||||
| 20 | 307935 | Panel Drawer (white) |
|
- | |||||
| 21 | 3169472 | Handle, Drawer (almond Mdl.) |
|
- | |||||
| 21 | WP488627 | Handle, Drawer (screw (2)) (Replaces: 313349) |
|
$ 7.30 | |||||
| 21 | 3169105 | Handle, Drawer (white Mdl.) |
|
- | |||||
| 22 | 327887 | Drawer, Utility |
|
- | |||||
| 24 | 309329 | Protector, Drawer (2) |
|
- | |||||
| 25 | 3181363 | Cap, Top (white Mdl) |
|
- | |||||
| 25 | WP308685 | Cap, Top (screw (2) White Mdl.) (Replaces: 3182346) |
|
Immediately | $ 7.08 | ||||
| 25 | 3188400 | Cap, Top (screw, Almond Mdl.) |
|
- | |||||
| 25 | 3188375 | Cap, Top (almond Mdl.) |
|
- |
