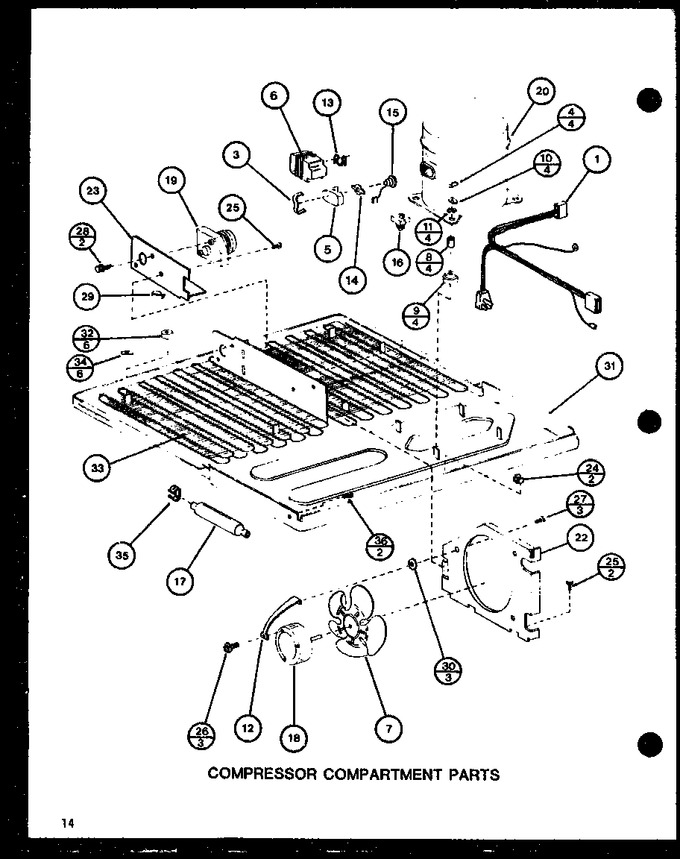

01 - Compressor Compartment Parts


02 - Fz Door Parts


03 - Interior Accessories


04 - Rear Components


05 - Ref Door Parts


06 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7708501		Harness Mc		Appelez-nous	-
3	YB8358601		Bale Strap		Appelez-nous	-
6	C8920001		Terminal Cover		Appelez-nous	-
7	B5742601		Blade, Fan		Appelez-nous	-
8	A3072001		Sleeve K		Appelez-nous	-
9	WPW10169124		Grommet   (Replaces: B8333401)				$ 6.80
11	B8352901		Clip Comp		Appelez-nous	-
12	C8938501		Bracket, Cond Motor		Appelez-nous	-
13	B8358301		Spring, Overload		Appelez-nous	-
15	C8906201		Overload		Appelez-nous	-
16	C8906101		Relay		Appelez-nous	-
17	WPB2150504		Drier   (Replaces: B5715001)				$ 123.28
18	833697		Motor, Fan   (Replaces: D7584001)			Immediately	$ 98.23
19	D7004107		Timer		Appelez-nous	-
20	W10439652		Kit, Compressor (dan Nf7ak)   (Replaces: D7622301)				$ 397.98
22	D7691002		Cond. Fan Shrd		Appelez-nous	-
23	D7656701		Bracket, Timer		Appelez-nous	-
24	M0110505		Clip-cable		Appelez-nous	-
25	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.43
26	M0220101		Screw		Appelez-nous	-
27	M0221332		Screw, Shoulder		Appelez-nous	-
28	M0218118		Screw		Appelez-nous	-
29	M0321204		Wire Tie		Appelez-nous	-
30	M0500107		Grommet K		Appelez-nous	-
31	D7595405		Base Pan, Machine Compartment		Appelez-nous	-
32	B8346301		Spacer Cond.		Appelez-nous	-
33	D7654301		Condenser Pntd		Appelez-nous	-
34	M0293701		Nut Speed		Appelez-nous	-
35	M0104002		Clamp-drier		Appelez-nous	-
36	M0233844		Screw, T F		Appelez-nous	-
	NOTE:		Ic-3h/p76213-5w Used In U.s.		Appelez-nous	-
