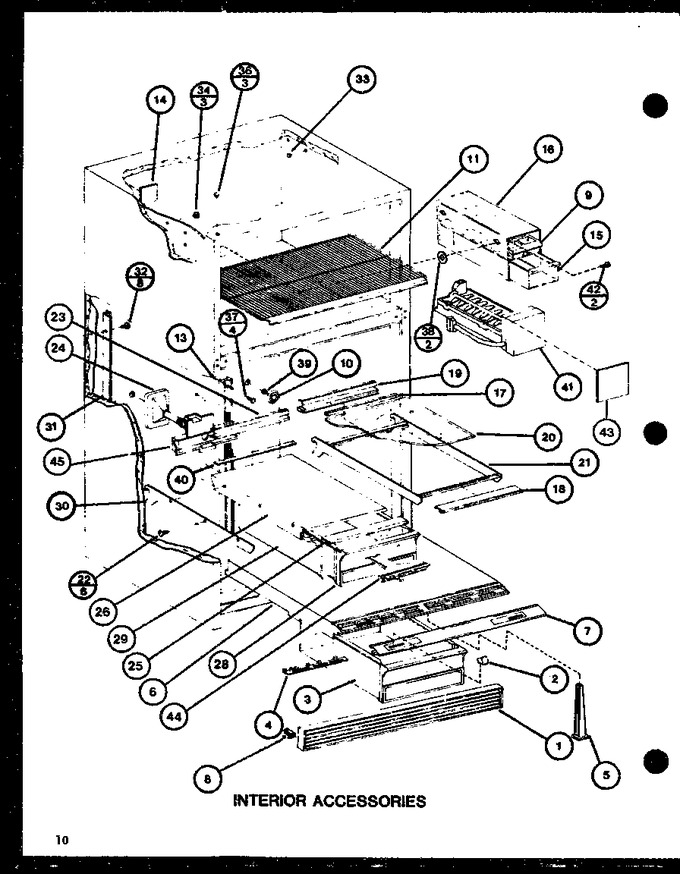

01 - Compressor Compartment Parts


02 - Fz Door Parts


03 - Interior Accessories


04 - Rear Components


05 - Ref Door Parts


06 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520502		Grille-toe		Appelez-nous	-
2	C8908301		Knob Humidity A-k		Appelez-nous	-
3	D7581005		Net-pan,crisper		Appelez-nous	-
4	D7587704		Slide Humidity		Appelez-nous	-
5	D7602202		Crisper Support Post		Appelez-nous	-
6	D7616505		Top,crisper A-k		Appelez-nous	-
7	D7616607		Trim, Crisper Top A		Appelez-nous	-
8	M0117301		Clip, Grille		Appelez-nous	-
10	M0310314		Plug		Appelez-nous	-
11	D7580702		Shelf, Frz		Appelez-nous	-
13	D7599001		Ladder Center		Appelez-nous	-
17	A3030336		Gasket-per Ea		Appelez-nous	-
18	C8913501		Trim, Shelf A		Appelez-nous	-
19	C8913601		Trim, Shelf		Appelez-nous	-
20	D7421212		Glass Shelf		Appelez-nous	-
21	D7602302		Assy, Glass Shelf		Appelez-nous	-
22	M0213129		Screw		Appelez-nous	-
23	C8831808		Trim Shelf		Appelez-nous	-
24	D7701201		Grommet Mk		Appelez-nous	-
25	C8913505		Trim Shelf		Appelez-nous	-
26	D7698204		Top M.k		Appelez-nous	-
28	D7698305		Net Pan, Meatkeeper		Appelez-nous	-
29	D7698101		Sleeve M.k		Appelez-nous	-
30	D7600029		Side Plate Mk		Appelez-nous	-
31	D7599101		Ladder Side		Appelez-nous	-
31	D7599103		Ladder Side		Appelez-nous	-
32	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
33	M0311301		Plug Button		Appelez-nous	-
36	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 7.39
36	M0310716		Plug		Appelez-nous	-
37	M0230923		Screw		Appelez-nous	-
39	B8362501		Insul. Mk Plug		Appelez-nous	-
40	M0275163		Tape Per Roll		Appelez-nous	-
41	D7567104		Ice Maker Assy		Appelez-nous	-
43	C8928503		Insert I.m		Appelez-nous	-
45	D7698001		Housing Slide Mk		Appelez-nous	-
	NOTE:		Ic-3h/p76213-7w Used In U.s.a		Appelez-nous	-
NI	D7714606		Glass Shelf Assy		Appelez-nous	-
NI	R0179079		Crisper Top Assy		Appelez-nous	-
NI	D7714605		Glass Shelf Assy		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0257244)				$ 9.52

    View Diagram in Separate Window       Print Part List
