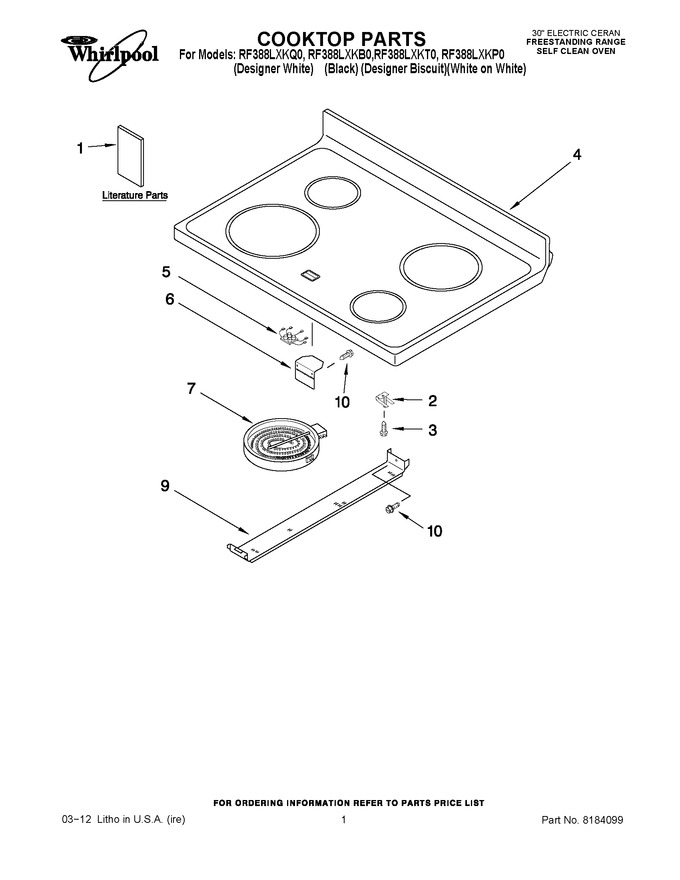

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts
06 - Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8522958 | Instruction, Installation |
|
- | |||||
| 1 | LIT8523048 | Installation Instr (template) |
|
- | |||||
| 1 | LIT8522773 | Guide, Use & Care |
|
- | |||||
| 1 | LIT8522647 | Tech Sheet |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 6.80 | |||||
| 4 | 8522585 | Cooktop (white On White) |
|
- | |||||
| 4 | 8272513 | Cooktop (biscuit) |
|
- | |||||
| 4 | 8053543 | Cooktop (white) |
|
- | |||||
| 4 | 8053545 | Cooktop (black) |
|
- | |||||
| 5 | 8274173 | Light, Indicator (hot Surface) |
|
- | |||||
| 6 | 3195810 | Bracket, Ind Light |
|
- | |||||
| 6 | WP3196175 | Screw (2) (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 7 | W10823698 | Element, Surface (1800w - Rr) (Replaces: 8523696) |
|
Immediately | $ 213.08 | ||||
| 7 | W10823711 | Element, Surface (1200w Lr-rf) (Replaces: 8523698) |
|
Immediately | $ 227.75 | ||||
| 7 | W10823696 | Element, Surface (2500w Lf) (Replaces: 8523692) |
|
Immediately | $ 192.83 | ||||
| 9 | 3196455 | Bracket, Element |
|
- | |||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 |
