01 - Cooktop Parts

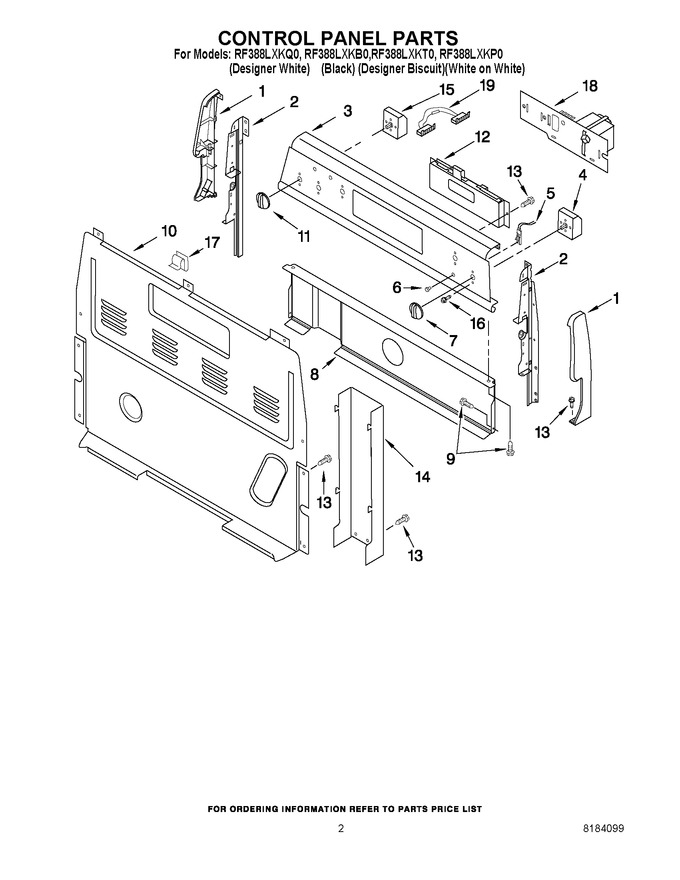

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts
06 - Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186188 | Endcap (black Left Hand) |
|
- | |||||
| 1 | 3186190 | Endcap (white Left Hand) |
|
- | |||||
| 1 | 3186191 | Endcap (white Right Hand) |
|
- | |||||
| 1 | 8272508 | Endcap (biscuit Right Hand) |
|
- | |||||
| 1 | 3186189 | Endcap (black Right Hand) |
|
- | |||||
| 1 | 8272507 | Endcap (biscuit Left Hand) |
|
- | |||||
| 2 | 3186198 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 3186199 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | 8522822 | Panel, Backguard (biscuit) |
|
- | |||||
| 3 | 8522820 | Panel, Backguard (white) |
|
- | |||||
| 3 | 8522821 | Panel, Backguard (black) |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (right Front) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 4 | WP3148952 | Switch, Infinite (right Rear) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 4 | WP3149400 | Switch, Infinite (left Front) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 5 | 8273301 | Light, Ind. (surface Unit (2)) |
|
- | |||||
| 5 | 8273338 | Light, Ind. (accusimmer) |
|
- | |||||
| 6 | WP3196068 | Lens, Light (2) (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | WP8522565 | Knob, Infinite (4) (white) (Replaces: 8522565) |
|
Immediately | $ 18.81 | ||||
| 7 | 8522567 | Knob, Infinite (4) (biscuit) |
|
$ 15.97 | |||||
| 7 | WP8522566 | Knob, Infinite (4) (black) (Replaces: 8522566) |
|
$ 20.06 | |||||
| 8 | 8053911 | Shield, Heat |
|
- | |||||
| 9 | W10276642 | Screw (Replaces: 4449746) |
|
$ 5.77 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | 8522569 | Knob, Accusimmer (white) |
|
$ 6.69 | |||||
| 11 | 8522571 | Knob, Accusimmer (biscuit) |
|
- | |||||
| 11 | 8522570 | Knob, Accusimmer (black) |
|
$ 6.44 | |||||
| 12 | 8522527 | Control, Range (white) |
|
- | |||||
| 12 | 8522528 | Control, Range (biscuit) |
|
- | |||||
| 12 | 8522526 | Control, Range (black) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | WPW10326122 | Cover, Box (Replaces: 3195133) |
|
$ 125.64 | |||||
| 15 | 8053511 | Selector, Accusim |
|
- | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 17 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 11.39 | |||||
| 18 | 9755076 | Power Supply, Pca |
|
- | |||||
| 19 | 8273906 | Jumper W/ Fuse |
|
- |
