SELECT A DIAGRAM

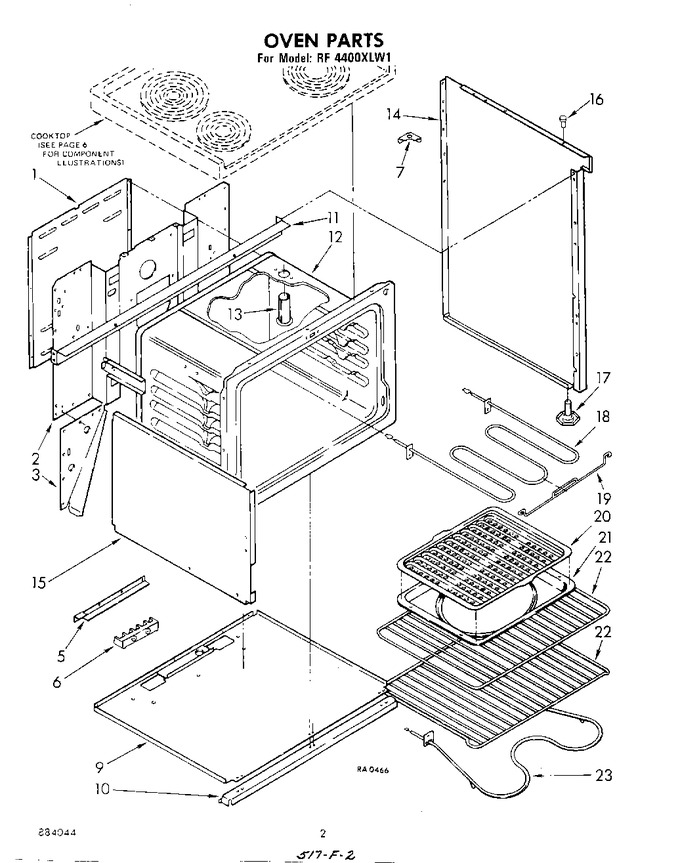

02 - Oven


03 - Door And Drawer


04 - Cooktop


05 - Backguard , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868159		Cover, Wiring		Appelez-nous	-
1	486608		Washer, Flat		Appelez-nous	-
1	681151		Screw, 10-24 X 1/2 (3)		Appelez-nous	-
2	868225		Back, Range		Appelez-nous	-
2	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
3	681151		Gusset, Rear (screw, 10-24 X 1/2)		Appelez-nous	-
3	877827		Gusset, Rear (l.h.)		Appelez-nous	-
3	877826		Gusset, Rear (r.h.)		Appelez-nous	-
5	877568		Support, Gusset		Appelez-nous	-
6	487836		Nut, Hex (10-32) (3)		Appelez-nous	-
6	834649		Screw 10-32 X 7/8 (2)		Appelez-nous	-
6	866213		Washer, Grounding (3)		Appelez-nous	-
6	WP8203546		Block, Terminal   (Replaces: 241212)			Immediately	$ 27.12
7	868128		Gusset, Backguard (2)		Appelez-nous	-
9	868087		Panel, Oven Bottom		Appelez-nous	-
9	868253		Bottom, Compartment		Appelez-nous	-
9	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
10	834649		Screw, 10-24 X 7/8 (5)		Appelez-nous	-
10	868226		Channel, Support		Appelez-nous	-
11	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
11	866318		Bracket, Cooktop		Appelez-nous	-
12	877813		Oven		Appelez-nous	-
13	241428		Screw, 10-24 X 3/8 (2)		Appelez-nous	-
13	865918		Tube, Oven Vent		Appelez-nous	-
14	877832		Panel, End R.h. (almond Panel, End L.h.)		Appelez-nous	-
14	877837		Panel, End R.h. (almond)		Appelez-nous	-
14	877836		Panel, End R.h. (harvest Gold)		Appelez-nous	-
14	877835		Panel, End R.h. (new Avocado)		Appelez-nous	-
14	877834		Panel, End R.h. (coffee)		Appelez-nous	-
14	877828		Panel, End R.h. (white)		Appelez-nous	-
14	877829		Panel, End R.h. (coffee)		Appelez-nous	-
14	877830		Panel, End R.h. (new Avocado)		Appelez-nous	-
14	877831		Panel, End R.h. (harvest Gold)		Appelez-nous	-
14	877833		Panel, End R.h. (white)		Appelez-nous	-
15	877678		Partition, Center		Appelez-nous	-
16	834667		Bumper, Cooktop (2)		Appelez-nous	-
17	868880		Leveler (4)		Appelez-nous	-
18	486146		Screw, 10-32 X 1/2 (2)				$ 12.83
18	865934		Unit, Broil		Appelez-nous	-
19	486146		Screw, 10-32 X 1/2 (2)				$ 12.83
19	866429		Hanger, Broil Unit		Appelez-nous	-
20	4396923		Grille, Broiler   (Replaces: 866219)			Immediately	$ 54.64
21	866218		Pan, Broiler		Appelez-nous	-
22	865984		Rack, Oven Offset		Appelez-nous	-
22	865983		Rack, Oven (plain)		Appelez-nous	-
23	486146		Unit, Bake (screw, 10-32 X 1/2 (2))				$ 12.83
23	WP865940		Unit Bake (alternate)   (Replaces: 868963)				$ 138.75
23	WP865940		Unit Bake (alternate)   (Replaces: 868964)				$ 138.75

    View Diagram in Separate Window       Print Part List
