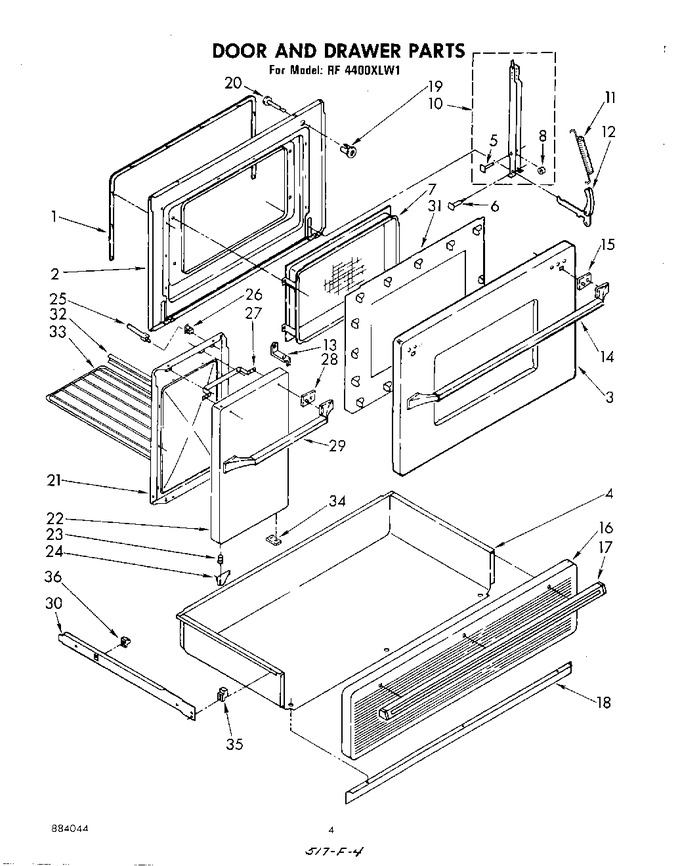

03 - Door And Drawer


04 - Cooktop


05 - Backguard , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	877634		Gasket, Oven Door (alternate)		Appelez-nous	-
1	865977		Gasket, Oven Door (alternate)		Appelez-nous	-
2	877840		Liner, Oven Door		Appelez-nous	-
2	241422		Washer (2)		Appelez-nous	-
2	595119		Screw, 10-24 X 5/8 (2)		Appelez-nous	-
2	247326		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
3	877845		Panel, Oven Door (harvest Gold)		Appelez-nous	-
3	877842		Panel, Oven Door (white)		Appelez-nous	-
3	877843		Panel, Oven Door (coffee)		Appelez-nous	-
3	877844		Panel, Oven Door (new Avocado)		Appelez-nous	-
3	877846		Panel, Oven Door (almond)		Appelez-nous	-
3	595119		Panel, Oven Door (screw, 10-24 X 5/8 (5))		Appelez-nous	-
4	868242		Drawer		Appelez-nous	-
5	241423		Rivet, Square Head (2)		Appelez-nous	-
6	241334		Pin, Hinge (2)		Appelez-nous	-
7	241421		Washer (4)		Appelez-nous	-
7	868640		Window, Oven Door		Appelez-nous	-
7	865884		Screw, 10-24 X 3/4 (4)		Appelez-nous	-
8	834471		Roller, Stop (2)		Appelez-nous	-
10	865973		Channel, L.h.		Appelez-nous	-
10	241422		Washer (2)		Appelez-nous	-
10	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
10	865972		Channel R.h.		Appelez-nous	-
11	241314		Spring, Door (2)		Appelez-nous	-
12	865640		Arm Assembly (2)		Appelez-nous	-
13	681151		Screw, 10-24 X 1/2		Appelez-nous	-
13	877572		Bracket, Strike		Appelez-nous	-
14	877651		Handle, Door		Appelez-nous	-
15	487392		Screw, 10-24 X 5/8 (2)		Appelez-nous	-
15	868619		Spacer, Handle (2)		Appelez-nous	-
16	865865		Panel, Drawer (white)		Appelez-nous	-
16	681151		Panel, Drawer (screw, 10-24 X 1/2 (2))		Appelez-nous	-
16	868249		Panel, Drawer (almond)		Appelez-nous	-
16	868248		Panel, Drawer (harvest Gold)		Appelez-nous	-
16	868247		Panel, Drawer (new Avocado)		Appelez-nous	-
16	868250		Panel, Drawer (coffee)		Appelez-nous	-
17	877657		Handle, Drawer		Appelez-nous	-
17	868585		Screw, 10-24 X 5/8 (3)		Appelez-nous	-
18	WP965173		Screw, 8-15 X 3/8 (3)   (Replaces: 487521)			Immediately	$ 10.68
18	866136		Cover, Toespace		Appelez-nous	-
19	865653		Collar, Light Switch Actuator		Appelez-nous	-
20	868638		Plunger, Light Switch Actuator		Appelez-nous	-
21	877667		Liner, Compartment Door		Appelez-nous	-
21	868430		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
22	868614		Panel, Compartment Door (white)		Appelez-nous	-
22	868618		Panel, Compartment Door (coffee)		Appelez-nous	-
22	868615		Panel, Compartment Door (new Avocado)		Appelez-nous	-
22	868616		Panel, Compartment Door (harvest Gold)		Appelez-nous	-
22	868617		Panel, Compartment Door (almond)		Appelez-nous	-
22	486146		Panel, Compartment Door (screw, 10-32 X 1/2)				$ 12.83
23	834549		Spacer, Hinge Pin		Appelez-nous	-
24	865922		Hinge, Compartment Door (bottom)		Appelez-nous	-
24	868382		Hinge, Compartment Door (screw, 8-32 X 3/8 (2))		Appelez-nous	-
24	865930		Hinge, Compartment Door (top)		Appelez-nous	-
24	868430		Hinge, Compartment Door (screw, 10-24 X 1/2 (2))		Appelez-nous	-
25	877573		Strike, Door		Appelez-nous	-
25	W10080180		Nut, 10-24 Hex   (Replaces: 487351)				$ 12.74
26	865808		Catch, Door Panel		Appelez-nous	-
27	487392		Screw, 10-24 X 5/8		Appelez-nous	-
27	868629		Spacer, Door		Appelez-nous	-
28	487392		Screw, 10-24 X 5/8 (2)		Appelez-nous	-
28	868619		Spacer, Door Handle (2)		Appelez-nous	-
29	877650		Handle, Complete		Appelez-nous	-
29	487392		Screw, 10-24 X 5/8		Appelez-nous	-
30	877685		Rail, Drawer (right Side)		Appelez-nous	-
30	681151		Rail, Drawer (screw, 10-24 X 1/2 (4))		Appelez-nous	-
30	877686		Rail, Drawer (left Side)		Appelez-nous	-
31	877841		Panel, Air Wash		Appelez-nous	-
32	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
32	868227		Rail, Storage Shelf (2)		Appelez-nous	-
33	865931		Rack, Compartment		Appelez-nous	-
34	866300		Stop, Door		Appelez-nous	-
35	868127		Guide, Front (2)		Appelez-nous	-
35	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
36	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
36	868152		Guide, Back (2)		Appelez-nous	-
