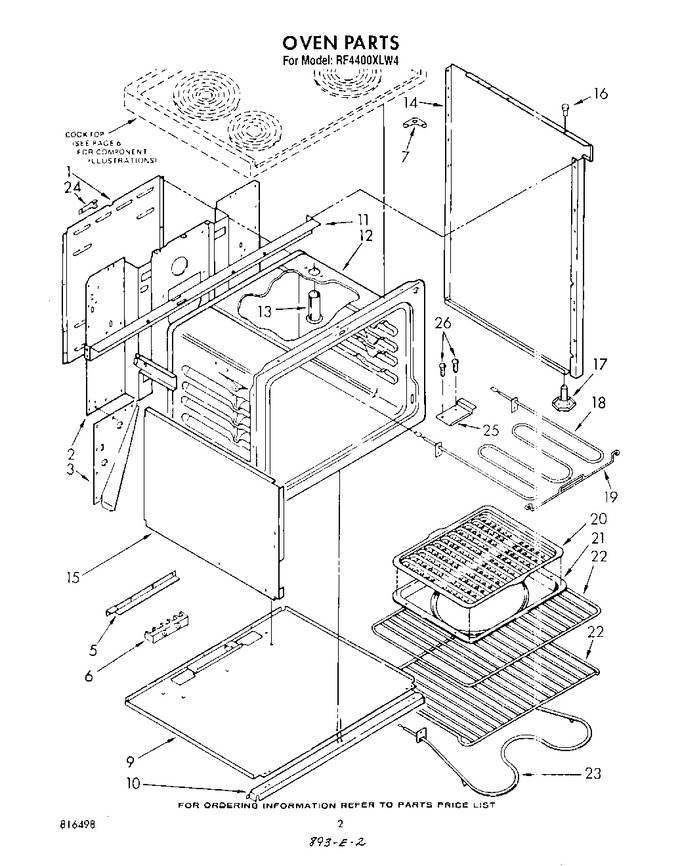

02 - Oven


03 - Oven Door And Drawer


04 - Cook Top


05 - Backguard , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	681151		Screw, 10-24 X 1/2 (5)		Appelez-nous	-
1	816471		Cover, Wiring		Appelez-nous	-
1	486608		Washer Flat (3)		Appelez-nous	-
2	816151		Back, Range		Appelez-nous	-
2	681151		Screw, 10-24 X 1/2 (17)		Appelez-nous	-
3	877826		Gusset, Rear (r.h.)		Appelez-nous	-
3	681151		Gusset, Rear (screw, 10-24 X 1/2)		Appelez-nous	-
3	877827		Gusset, Rear (l.h.)		Appelez-nous	-
5	877568		Support, Gusset		Appelez-nous	-
6	866213		Washer, Grounding (3)		Appelez-nous	-
6	834649		Screw 10-32 X 7/8 (2)		Appelez-nous	-
6	WP8203546		Block, Terminal   (Replaces: 241212)			Immediately	$ 27.12
6	487836		Nut, Hex (10-32) (3)		Appelez-nous	-
7	868128		Gusset, Backguard (2)		Appelez-nous	-
7	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
9	868253		Bottom, Compartment		Appelez-nous	-
9	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
9	816473		Panel, Oven Bottom		Appelez-nous	-
10	868226		Channel, Support		Appelez-nous	-
10	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
10	834649		Screw, 10-24 X 7/8 (5)		Appelez-nous	-
11	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
11	868273		Bracket, Cooktop		Appelez-nous	-
12	816176		Oven		Appelez-nous	-
13	241428		Screw, 10-24 X 3/8 (2)		Appelez-nous	-
13	865918		Tube, Oven Vent		Appelez-nous	-
14	816149		Panel, End R.h. (white)		Appelez-nous	-
14	816150		Panel, End R.h. (almond)		Appelez-nous	-
14	816147		Panel, End R.h. (white)		Appelez-nous	-
14	816148		Panel, End R.h. (almond Panel, End L.h.)		Appelez-nous	-
15	816177		Partition, Center		Appelez-nous	-
16	877947		Bumper, Cooktop (4)		Appelez-nous	-
17	868880		Leveler (4)		Appelez-nous	-
18	486146		Screw, 10-24 X1/2 (2)				$ 12.83
18	865934		Unit, Broil		Appelez-nous	-
19	486146		Screw, 10-24 X1/2 (2)				$ 12.83
19	866429		Hanger, Broil Unit		Appelez-nous	-
20	4396923		Grille, Broiler   (Replaces: 866219)			Immediately	$ 54.64
21	866218		Pan, Broiler		Appelez-nous	-
22	865983		Rack, Oven (plain)		Appelez-nous	-
22	877951		Rack, Oven (offset)		Appelez-nous	-
23	WP865940		Unit Bake (alternate)   (Replaces: 868963)				$ 138.75
23	WP865940		Unit Bake (alternate)   (Replaces: 868964)				$ 138.75
23	486146		Unit, Bake (screw, 10-32 X 1/2 (2))				$ 12.83
24	816169		Strap, Ground		Appelez-nous	-
24	680363		Screw,10-24 X 1/2		Appelez-nous	-
25	816457		Bracket, Anti-tip (left Side)		Appelez-nous	-
25	816458		Bracket, Anti-tip (right Side)		Appelez-nous	-
26	816459		Screw, (2) No.12 - 12 X 1 1/4		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
