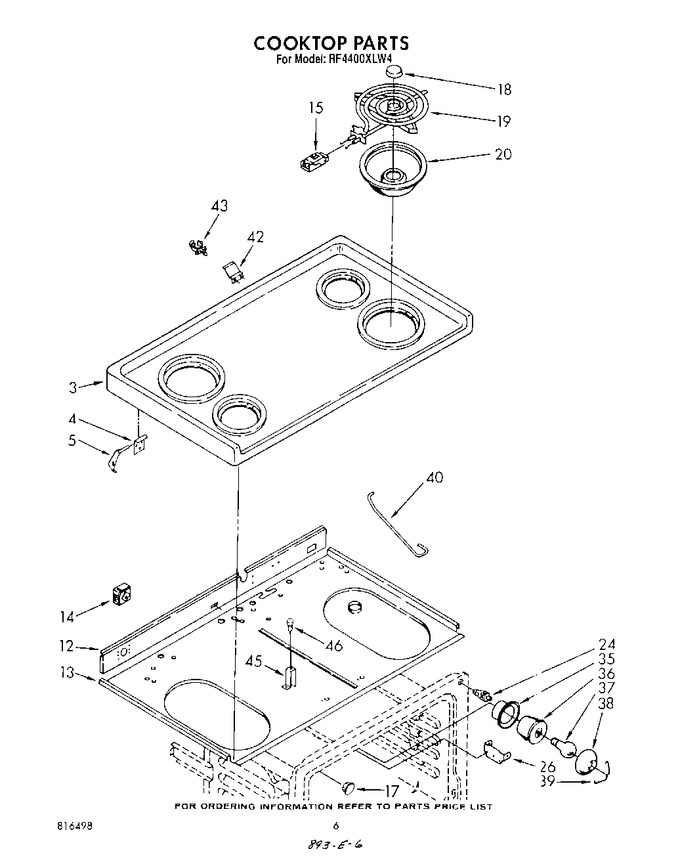

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868233		Cooktop (almond)		Appelez-nous	-
1	868230		Cooktop (white)		Appelez-nous	-
4	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
4	868137		Retainer, Hinge (2)		Appelez-nous	-
5	681151		Pin, Hinge (screw, 10-24 X 1/2 (2))		Appelez-nous	-
5	868130		Pin, Hinge (l.h.)		Appelez-nous	-
5	868129		Pin, Hinge (r.h.)		Appelez-nous	-
12	816175		Shield, Wiring		Appelez-nous	-
12	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
13	681151		Screw, 10-24 X 1/2 (9)		Appelez-nous	-
13	877903		Screw, 10-24 X 3/8		Appelez-nous	-
13	441256		Nut, 10-24 Hex (2)		Appelez-nous	-
13	877663		Panel, Subtop		Appelez-nous	-
13	816058		Washer (6)		Appelez-nous	-
14	241679		Switch, Cycling		Appelez-nous	-
14	877919		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
15	877978		Screw, 6-20 X 5/16 (4)		Appelez-nous	-
15	330031		Receptacle   (Replaces: 816185)			Immediately	$ 17.93
17	251379		Button, Rotisserie Plug		Appelez-nous	-
18	868522		Medallion		Appelez-nous	-
19	WP660533		Unit, Surface (includes Illus. 18) (8`` Alternate)   (Replaces: 868449)			Immediately	$ 40.21
19	WP660532		Unit, Surface (includes Illus. 18) (6`` Alternate)   (Replaces: 868445)			Immediately	$ 45.10
19	WP660532		Unit, Surface (includes Illus. 18) (6`` Alternate)   (Replaces: 866446)			Immediately	$ 45.10
19	WP660533		Unit, Surface (includes Illus. 18) (8`` Alternate)   (Replaces: 866447)			Immediately	$ 40.21
20	W10196405RW		Pan, Surface Unit (6``) (2) (alternate)   (Replaces: 877546)			Immediately	$ 19.64
20	WPW10196406		Pan, Surface Unit (6``) (2) (alternate Pan, Surface Unit (8``) (2))   (Replaces: 877545)			Immediately	$ 12.42
20	WPW10196406		Pan, Surface Unit (6``) (2) (alternate)   (Replaces: 834753)			Immediately	$ 12.42
20	W10196405RW		Pan, Surface Unit (6``) (2) (alternate)   (Replaces: 834754)			Immediately	$ 19.64
24	816092		Switch, Oven Light		Appelez-nous	-
26	865959		Bracket, Thermostat Bulb		Appelez-nous	-
26	486146		Screw, 10-32 X 1/2				$ 12.83
35	877802		Cup, Light		Appelez-nous	-
35	486146		Screw, 10-24 X1/2 (2)				$ 12.83
36	W10856866		Receptacle, Light   (Replaces: 877803)				$ 6.80
37	40A15		Bulb, Light   (Replaces: 816389)			Immediately	$ 1.98
38	877804		Lens, Light		Appelez-nous	-
39	877805		Retainer, Lens		Appelez-nous	-
40	868123		Rod, Cooktop Support		Appelez-nous	-
42	834957		Bracket, Control Panel (2)		Appelez-nous	-
42	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
43	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
43	868136		Bracket, Strain Relief		Appelez-nous	-
45	681151		Screw, 10-24 X 1/2		Appelez-nous	-
45	866303		Brace, Cooktop Support		Appelez-nous	-
46	241263		Bumper (1)		Appelez-nous	-
