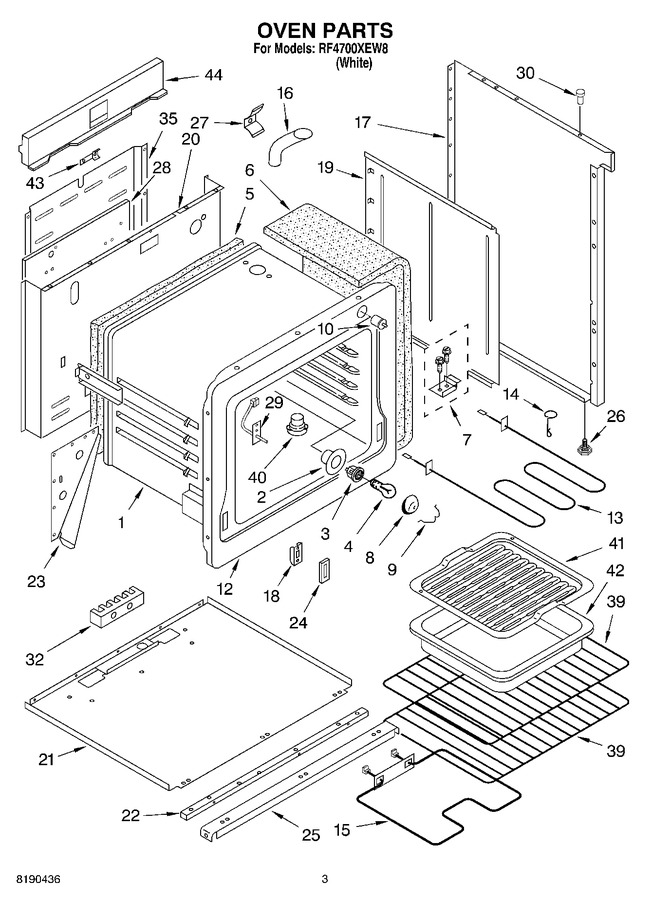

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4372806		Oven Body		Appelez-nous	-
2	486146		Screw, 10-24 X 1/2 (4)				$ 12.83
2	4372613		Housing, Light		Appelez-nous	-
3	W10856866		Receptacle, Light   (Replaces: 4371450)				$ 6.80
4	8009		Bulb, Light   (Replaces: 4372020)			Immediately	$ 17.51
5	4372629		Insulation, Oven Back		Appelez-nous	-
6	4372628		Insulation, Oven Wrap		Appelez-nous	-
7	814121		Kit, Anti-tip		Appelez-nous	-
8	4372021		Lens, Light		Appelez-nous	-
9	4372920		Retainer, Lens		Appelez-nous	-
10	4372841		Switch, Light		Appelez-nous	-
12	4372885		Frame, Front		Appelez-nous	-
13	486146		Screw, 10-24 X1/2 (2)				$ 12.83
13	4372610		Element, Broil		Appelez-nous	-
14	486146		Screw, 10-24 X1/2 (2)				$ 12.83
14	4372921		Support, Broiler Element		Appelez-nous	-
15	4372609		Element, Bake		Appelez-nous	-
15	486146		Screw, 10-24 X1/2 (2)				$ 12.83
16	486146		Screw, 10-24 X1/2 (2)				$ 12.83
16	4372614		Vent Tube		Appelez-nous	-
17	816147		Panel, Body-side (white R.h.)		Appelez-nous	-
17	816149		Panel, Body-side (white L.h.)		Appelez-nous	-
18	4372634		Receptacle, Hinge		Appelez-nous	-
19	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
19	4372619		Retainer, Insulation		Appelez-nous	-
20	4372640		Back, Range		Appelez-nous	-
20	681151		Screw, 10-24 X 1/2 (8)		Appelez-nous	-
21	4372878		Panel, Bottom		Appelez-nous	-
21	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
22	4372924		Support, Oven		Appelez-nous	-
23	877826		Gusset, Rear (r.h.)		Appelez-nous	-
23	681151		Gusset, Rear (screw, 10-24 X 1/2 (8))		Appelez-nous	-
23	877827		Gusset, Rear (l.h.)		Appelez-nous	-
24	4372639		Plate, Hinge		Appelez-nous	-
25	834649		Screw, 10-24 X 7/8 (4)		Appelez-nous	-
25	868226		Channel, Support		Appelez-nous	-
26	4372919		Screw, Leveling (4)		Appelez-nous	-
27	4372501		Spacer, Oven		Appelez-nous	-
28	4372624		Panel, Back		Appelez-nous	-
29	4372910		Probe, Oven Temp		Appelez-nous	-
30	877947		Bumper, Cooktop (5)		Appelez-nous	-
32	WP8203546		Block, Terminal (main)   (Replaces: 4372627)			Immediately	$ 27.12
32	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
32	487836		Nut, 10-32 (6)		Appelez-nous	-
35	681151		Screw, 10-24 X 1/2 (6)		Appelez-nous	-
35	4372623		Cover, Back		Appelez-nous	-
39	8190000		Rack, Oven		Appelez-nous	-
40	4372400		Offset		Appelez-nous	-
40	4372637		Tube, Adaptor		Appelez-nous	-
41	4372787		Grille, Broiler Pan		Appelez-nous	-
42	4372786		Pan, Broiler		Appelez-nous	-
43	816169		Strap, Ground		Appelez-nous	-
43	680363		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
44	4372926		Deflector, Air		Appelez-nous	-
