01 - Cooktop Parts
02 - Oven Parts
03 - Oven Door And Drawer Parts
04 - Auxiliary Oven And Door Parts

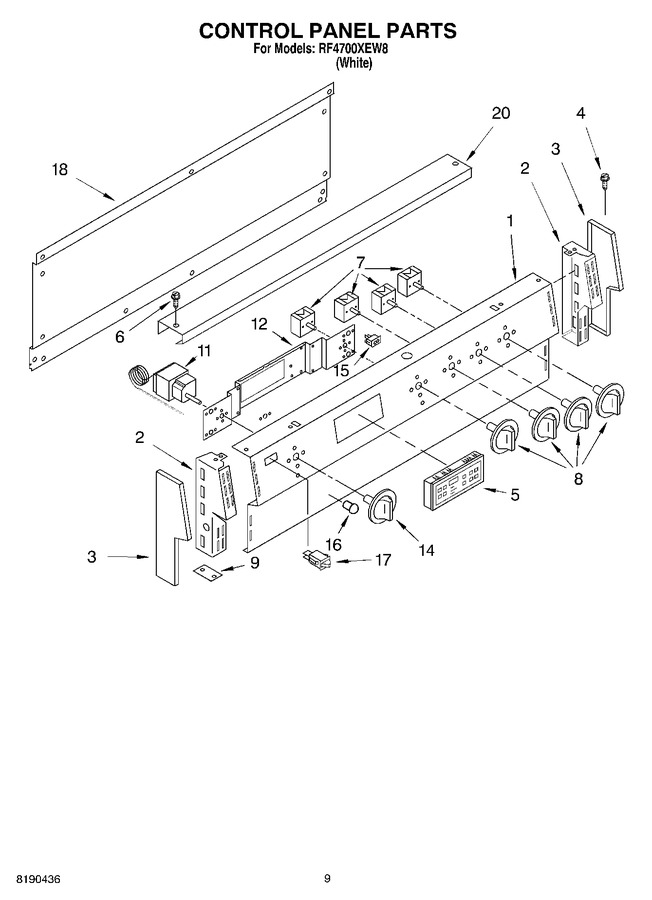

05 - Control Panel Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4372866 | Panel, Backguard |
|
- | |||||
| 2 | 4372349 | Bracket, Endcap (r.h.) |
|
- | |||||
| 2 | 4372350 | Bracket, Endcap (l.h.) |
|
- | |||||
| 3 | 4372352 | End Cap (l.h. White) |
|
- | |||||
| 3 | 4372351 | End Cap (r.h. White) |
|
- | |||||
| 4 | 4372223 | Screw, Endcap 8-18 X 1/2 (4) |
|
- | |||||
| 5 | 4372868 | Overlay, Clock |
|
- | |||||
| 5 | 4372867 | Clock, Timer |
|
- | |||||
| 6 | 4372875 | Screw |
|
- | |||||
| 7 | WP486579 | Switch, Infin. (screw, 8-32 X 1/4 (8)) (Replaces: 866466) |
|
$ 7.10 | |||||
| 7 | 8190004 | Switch, Infin. (use W/8`` Element) |
|
- | |||||
| 7 | 8190003 | Switch, Infin. (use W/6`` Element) |
|
- | |||||
| 8 | 4372917 | Knob, Control (4) |
|
- | |||||
| 9 | 4372918 | Spacer, Endcap |
|
- | |||||
| 11 | 877919 | Screw, 8-32 X 3/16 (2) |
|
- | |||||
| 11 | 4372915 | Thermostat, Oven (auxiliary Oven) |
|
- | |||||
| 12 | 4372916 | Bracket, Clock Mtg |
|
- | |||||
| 12 | 4372872 | Screw |
|
- | |||||
| 14 | 816483 | Knob, Thermostat |
|
- | |||||
| 14 | 4372876 | Screw Auxiliary Oven |
|
- | |||||
| 15 | 4371439 | Light, Indicator (indicator, Oven (2)) |
|
- | |||||
| 16 | 4372578 | Lens, Indicator |
|
- | |||||
| 17 | 4372576 | Switch, Oven Light |
|
- | |||||
| 18 | 4372356 | Cover, Backguard |
|
- | |||||
| 20 | 4372870 | Trim, Backguard |
|
- | |||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 978883 | Paint, Bulk (1 Qt.) (almond (uncut)) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 84.73 | ||||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 53.90 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 8316781 | Wire, Black 14 Ga. 150 C |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 54.98 | |||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 54.98 | |||||
| N/A | Insulation |
|
- | ||||||
| 261582 | Grease |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- |
