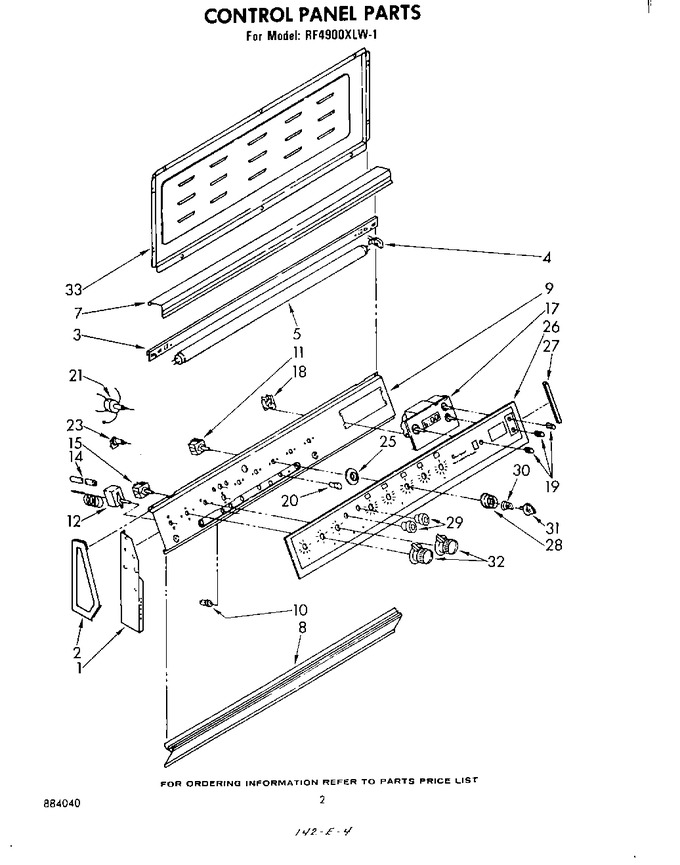

02 - Control Panel


03 - Cooktop


04 - Oven


05 - Oven Door And Drawer


06 - Auxiliary Oven And Door , Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868859		Support, Backguard (l.h.)		Appelez-nous	-
1	868858		Support, Backguard (r.h.)		Appelez-nous	-
2	865915		End Cap (l.h.)		Appelez-nous	-
2	98788		End Cap (nut (4))		Appelez-nous	-
2	865914		End Cap (r.h.)		Appelez-nous	-
3	868287		Channel, Light Mounting		Appelez-nous	-
3	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
4	866082		Lampholder (r.h.)		Appelez-nous	-
4	487428		Lampholder (screw, 6-32 X 3/16 (2))		Appelez-nous	-
4	866081		Lampholder (l.h.)		Appelez-nous	-
5	674590		Light, Fluorescent 33``		Appelez-nous	-
7	868288		Shade, Lamp		Appelez-nous	-
8	865993		Base, Backguard		Appelez-nous	-
8	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
9	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
9	868873		Bracket, Control		Appelez-nous	-
10	834409		Light, Indicator (3) Surface Unit, Griddle, Clean (alternate)		Appelez-nous	-
10	877581		Light, Indicator (3) Surface Unit, Griddle, Clean (alternate)		Appelez-nous	-
10	868290		Light, Indicator (3) Surface Unit, Griddle, Clean (alternate)		Appelez-nous	-
10	877580		Light, Indicator (3) Surface Unit, Griddle, Clean (alternate Light Indicator (3) Main Oven, Auxiliar		Appelez-nous	-
11	WP486579		Screw, 8-32 X 1/4 (4)   (Replaces: 866466)				$ 7.10
11	W10900107		Switch Infinite 8`` (2)   (Replaces: 877646)			Immediately	$ 51.87
11	W10900107		Switch, Infinite 6`` & Griddle (3)   (Replaces: 877645)			Immediately	$ 51.87
12	877583		Thermostat, Oven (main)		Appelez-nous	-
12	487428		Screw, 6-32 X 3/16 (2)		Appelez-nous	-
12	877647		Thermostat, Oven (auxiliary)		Appelez-nous	-
12	486525		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
14	865730		Sleeving Insulation		Appelez-nous	-
15	486525		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
15	868991		Switch, Selector (main)		Appelez-nous	-
17	487836		Nut, 10-32 (2)		Appelez-nous	-
17	877648		Timer, Digital (includes Illus. 18 & 19)		Appelez-nous	-
18	308594		Motor, Timer		Appelez-nous	-
19	255853		Knob, Timer (3)		Appelez-nous	-
20	834956		Bumper Stem (3)		Appelez-nous	-
21	866085		Switch, Fluorescent Light		Appelez-nous	-
21	98754		Nut, 3/8-27 (2)		Appelez-nous	-
23	98754		Nut, 3/8-27 (2)		Appelez-nous	-
23	866138		Switch, Oven Light		Appelez-nous	-
25	868925		Dial, Surface Unit & Griddle (5)		Appelez-nous	-
26	877649		Control Panel, Glass		Appelez-nous	-
27	866086		Strip, Trim (2)		Appelez-nous	-
28	868296		Bezel, Control Knob (5)		Appelez-nous	-
29	866053		Bezel Switch (2)		Appelez-nous	-
30	868297		Spring Bezel (5)		Appelez-nous	-
31	868298		Knob, Control Surface Unit & Griddle (5)		Appelez-nous	-
32	868997		Knob, Control (thermostat (2))		Appelez-nous	-
32	868998		Knob, Control (oven Selector)		Appelez-nous	-
33	681151		Screw, 10-24 X 1/2 (8)		Appelez-nous	-
33	866233		Cover, Back		Appelez-nous	-
