SELECT A DIAGRAM

02 - Control Panel


03 - Cooktop

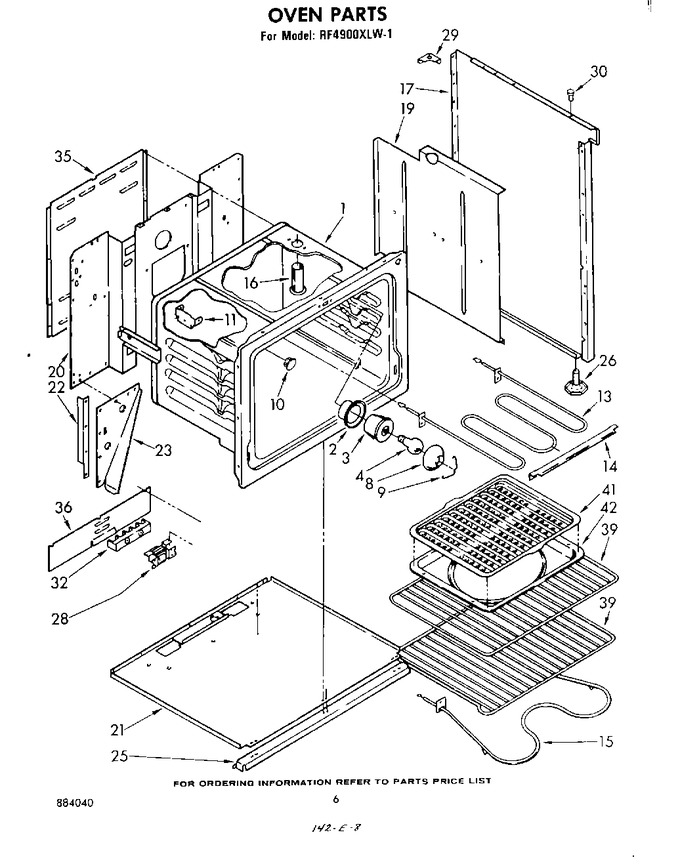

04 - Oven


05 - Oven Door And Drawer


06 - Auxiliary Oven And Door , Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	877810		Oven		Appelez-nous	-
2	486146		Screw, 10-24 X1/2 (2)				$ 12.83
2	877802		Cup, Light		Appelez-nous	-
3	W10856866		Receptacle, Light   (Replaces: 877803)				$ 6.80
4	8009		Bulb, Light   (Replaces: 527949)			Immediately	$ 17.51
8	877804		Lens, Light		Appelez-nous	-
9	877805		Retainer, Lens		Appelez-nous	-
10	251379		Button, Plug 3/4`` (2)		Appelez-nous	-
10	142017		Button, Plug 1/2		Appelez-nous	-
11	865959		Bracket, Thermbulb		Appelez-nous	-
11	486146		Screw, 10-24 X 1/2				$ 12.83
13	865934		Unit, Broil		Appelez-nous	-
13	486146		Screw, 10-24 X1/2 (2)				$ 12.83
14	866429		Hanger, Broil Unit		Appelez-nous	-
14	486146		Screw, 10-24 X1/2 (2)				$ 12.83
15	WP865940		Unit Bake (alternate)   (Replaces: 868964)				$ 138.75
15	486146		Unit Bake (screw, 10-24 X 1/2 (2))				$ 12.83
15	WP865940		Unit Bake (alternate)   (Replaces: 868963)				$ 138.75
16	WP965173		Vent Tube (screw, 8-15 X 3/8)   (Replaces: 487521)			Immediately	$ 10.68
16	868973		Vent Tube (alternate)		Appelez-nous	-
16	865939		Vent Tube (alternate)		Appelez-nous	-
16	241428		Vent Tube (screw, 10-24 X 3/8 (2))		Appelez-nous	-
17	877817		Panel, End R.h. (almond)		Appelez-nous	-
17	877823		Panel, End R.h. (coffee)		Appelez-nous	-
17	877822		Panel, End R.h. (almond)		Appelez-nous	-
17	877821		Panel, End R.h. (harvest Gold)		Appelez-nous	-
17	877820		Panel, End R.h. (new Avocado)		Appelez-nous	-
17	877819		Panel, End R.h. (white)		Appelez-nous	-
17	877814		Panel, End R.h. (white)		Appelez-nous	-
17	877815		Panel, End R.h. (new Avocado)		Appelez-nous	-
17	877816		Panel, End R.h. (harvest Gold)		Appelez-nous	-
17	877818		Panel, End R.h. (coffee Panel, End L.h.)		Appelez-nous	-
19	877824		Retainer, Insulation (r.h.)		Appelez-nous	-
19	877825		Retainer, Insulation (l.h.)		Appelez-nous	-
19	834649		Retainer Insulation (screw, 10-24 X 7/8 (2))		Appelez-nous	-
20	868225		Back, Range		Appelez-nous	-
20	681151		Screw, 10-24 X 1/2 (8)		Appelez-nous	-
21	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
21	868574		Panel, Bottom		Appelez-nous	-
22	681151		Screw, 10-24 X 1/2 (1)		Appelez-nous	-
22	834649		Screw, 10-24 X 7/8 (1)		Appelez-nous	-
22	877568		Support, Gusset		Appelez-nous	-
23	877827		Gusset, Rear (l.h.)		Appelez-nous	-
23	877826		Gusset, Rear (r.h.)		Appelez-nous	-
23	681151		Gusset, Rear (screw, 10-24 X 1/2 (8))		Appelez-nous	-
25	868226		Channel, Support		Appelez-nous	-
25	834649		Screw, 10-24 X 7/8 (4)		Appelez-nous	-
26	868880		Screw, Leveling (4)		Appelez-nous	-
28	877574		Ballast (alternate)		Appelez-nous	-
28	868959		Ballast (screw, 10-24 X 1/4)		Appelez-nous	-
28	865909		Ballast (alternate)		Appelez-nous	-
28	877575		Ballast (alternate)		Appelez-nous	-
29	868128		Gusset, Backguard (2)		Appelez-nous	-
30	834667		Bumper, Cooktop (2)		Appelez-nous	-
32	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
32	487836		Nut, 10-32 (6)		Appelez-nous	-
32	WP8203546		Block, Terminal (main)   (Replaces: 241212)			Immediately	$ 27.12
35	681151		Screw, 10-24 X 1/2 (6)		Appelez-nous	-
35	868159		Cover, Back		Appelez-nous	-
36	241549		Cover, Junction Box		Appelez-nous	-
39	865984		Rack, Oven Offset		Appelez-nous	-
39	865983		Rack, Oven Regular		Appelez-nous	-
41	4396923		Grille, Broiler Pan   (Replaces: 866219)			Immediately	$ 54.64
42	866218		Pan, Broiler		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
