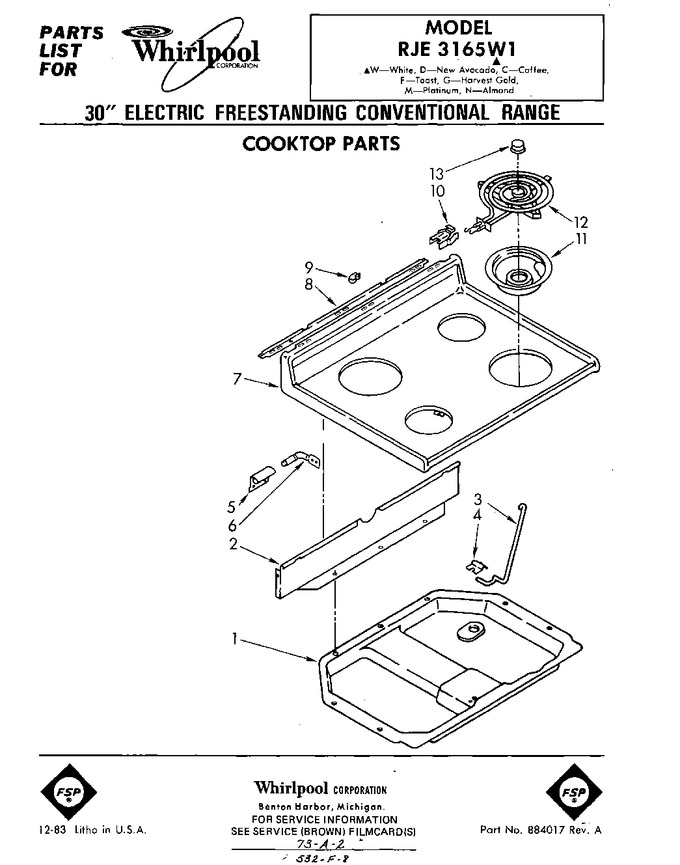

01 - Cook Top
02 - Door And Drawer
03 - Oven
04 - Control Panel
05 - Oven (continued) , Literature And Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 307929 | Burner Box |
|
- | |||||
| 1 | WP3390631 | Screw, 10a X 3/8 (6) (Replaces: 309112) |
|
$ 7.43 | |||||
| 2 | WP681414 | Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 2 | 307973 | Shield, Wiring |
|
- | |||||
| 3 | 307968 | Rod, Cooktop |
|
- | |||||
| 4 | 307967 | Retainer, Cooktop |
|
- | |||||
| 4 | WP3390631 | Screw, 10a X 3/8 (Replaces: 309112) |
|
$ 7.43 | |||||
| 5 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 5 | 307965 | Bracket, Cooktop (2) |
|
- | |||||
| 6 | 307966 | Pin, Cooktop (2) |
|
- | |||||
| 6 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 7 | 313166 | Cooktop (platinum) |
|
- | |||||
| 7 | 307863 | Cooktop (harvest Gold) |
|
- | |||||
| 7 | 307871 | Cooktop (almond) |
|
- | |||||
| 7 | 307864 | Cooktop (coffee) |
|
- | |||||
| 7 | 307865 | Cooktop (new Avocado) |
|
- | |||||
| 7 | 307866 | Cooktop (white) |
|
- | |||||
| 7 | 313165 | Cooktop (toast) |
|
- | |||||
| 8 | 309232 | Barrier |
|
- | |||||
| 8 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 9 | WP681414 | Screw, 10-16 X 1/2 (1) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 9 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.58 | |||||
| 10 | WP313808 | Screw 6-32 X 1/4 (4) (Replaces: 311932) |
|
$ 7.47 | |||||
| 10 | 330031 | Receptacle Clip (4) (Replaces: 258858) |
|
Immediately | $ 17.93 | ||||
| 11 | WPW10196406 | Pan (6`` (2)) (Replaces: 308539) |
|
Immediately | $ 12.05 | ||||
| 11 | W10196405RW | Pan (8`` (2)) (Replaces: 308540) |
|
Immediately | $ 19.64 | ||||
| 12 | WP660532 | Unit, Surface (6`` L.f. & R.r. (alternate)) (Replaces: 309334) |
|
Immediately | $ 45.10 | ||||
| 12 | WP660533 | Unit, Surface (8`` R.f. & L.r. (alternate)) (Replaces: 309214) |
|
Immediately | $ 40.21 | ||||
| 12 | WP660533 | Unit, Surface (8`` R.f. & L.r. (alternate) (includes Illus. 13)) (Replaces: 309340) |
|
Immediately | $ 40.21 | ||||
| 12 | WP660532 | Unit, Surface (6`` L.f. & R.r. (alternate)) (Replaces: 309250) |
|
Immediately | $ 45.10 | ||||
| 13 | 261990 | Medallion (4) |
|
- |
