01 - Cook Top
02 - Door And Drawer
03 - Oven
04 - Control Panel
05 - Oven (continued) , Literature And Optional
SELECT A DIAGRAM
New Model Search:

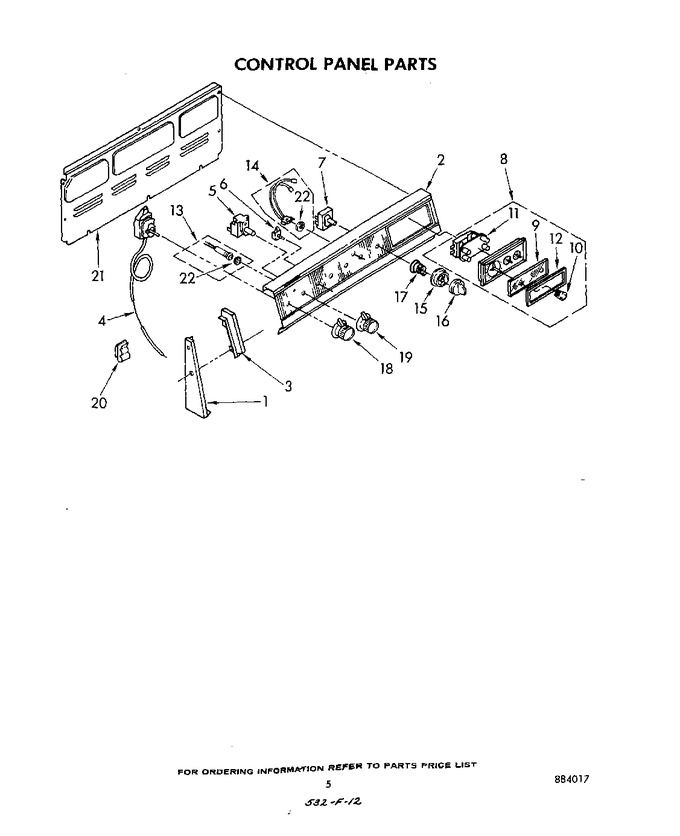

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3390631 | End Trim (screw, 10a X 3/8 (2)) (Replaces: 309112) |
|
$ 7.43 | |||||
| 1 | WP681414 | End Trim (screw, 10-16 X 1/2 (4)) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 1 | 308854 | End Trim (r.h.) |
|
- | |||||
| 1 | 308858 | End Trim (l.h.) |
|
- | |||||
| 2 | WP681414 | Screw, 10-32 (3) (Replaces: 690989) |
|
Immediately | $ 7.62 | ||||
| 2 | 312604 | Screw 8-18 X 5/8 (4) |
|
- | |||||
| 2 | 312501 | Control Panel |
|
- | |||||
| 3 | WP488627 | Screw, 8a X 1/2 (2) (Replaces: 338156) |
|
$ 7.30 | |||||
| 3 | 312866 | End Cap, L.h. |
|
- | |||||
| 3 | W11693756 | Screw, 8-18 X 5/8 (2) (Replaces: 357670) |
|
Immediately | $ 13.28 | ||||
| 3 | 312864 | End Cap, R.h. |
|
- | |||||
| 4 | 487384 | Thermostat, Oven (screw, 6-32 X 1/4 (2)) |
|
- | |||||
| 4 | 308483 | Thermostat, Oven (alternate) |
|
- | |||||
| 4 | 308789 | Thermostat, Oven (alternate) |
|
- | |||||
| 5 | 310349 | Switch, Selector (4 Position) |
|
- | |||||
| 5 | WP486579 | Screw, 8-32 X 1/4 (2) (Replaces: 311865) |
|
$ 7.10 | |||||
| 6 | 255335 | Switch, Pushbutton |
|
- | |||||
| 7 | W10900107 | Switch, Infinite (use W/6`` Surface Unit (2)) (Replaces: 311837) |
|
Immediately | $ 51.87 | ||||
| 7 | W10900107 | Switch, Infinite (use W/8`` Surface Unit (2)) (Replaces: 311836) |
|
Immediately | $ 51.87 | ||||
| 7 | WP486579 | Switch, Infinite (screw, 8-32 X 1/4 (8)) (Replaces: 311865) |
|
$ 7.10 | |||||
| 8 | 310416 | Timer, Automatic (includes Illus. 9, 10, 11 & 12) |
|
- | |||||
| 9 | 258760 | Glass, Timer |
|
- | |||||
| 10 | 308440 | Knob (3) |
|
- | |||||
| 11 | 308443 | Motor, Timer |
|
- | |||||
| 12 | 258762 | Bezel, Timer |
|
- | |||||
| 13 | 310393 | Light, Pilot (oven) |
|
- | |||||
| 14 | 312861 | Light Indicator (surface Unit) |
|
- | |||||
| 15 | 307456 | Bezel, Control Knob (4) |
|
$ 31.10 | |||||
| 16 | WP307458 | Knob, Control (4) (Replaces: 307458) |
|
$ 18.06 | |||||
| 17 | 307828 | Spring, Bezel (4) |
|
- | |||||
| 18 | 328709 | Knob, Thermostat |
|
- | |||||
| 19 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.38 | ||||
| 19 | 328707 | Knob, Selector |
|
- | |||||
| 20 | 309211 | Tube Clip |
|
- | |||||
| 21 | 308157 | Cover, Rear |
|
- | |||||
| 21 | WP681414 | Screw, 10-16 X 1/2 (8) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 22 | 311688 | Lens, Light |
|
- |
