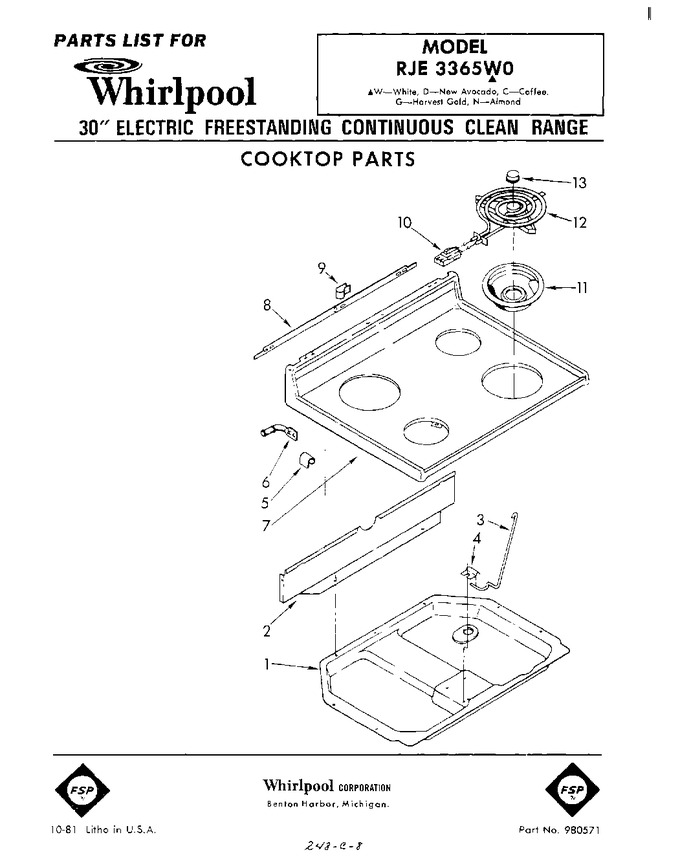

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven


05 - Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3390631		Screw, 10a X 3/8 (6)   (Replaces: 309112)				$ 7.43
1	307929		Burner Box		Appelez-nous	-
2	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.62
2	307973		Shield, Wiring		Appelez-nous	-
3	307968		Rod, Cooktop		Appelez-nous	-
4	307967		Retainer, Cooktop		Appelez-nous	-
4	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.43
5	307965		Bracket, Cooktop (2)		Appelez-nous	-
6	307966		Pin, Cooktop (2)		Appelez-nous	-
6	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 7.47
7	307865		Cooktop (new Avocado)		Appelez-nous	-
7	307866		Cooktop (white)		Appelez-nous	-
7	307864		Cooktop (coffee)		Appelez-nous	-
7	307863		Cooktop (harvest Gold)		Appelez-nous	-
7	307871		Cooktop (almond)		Appelez-nous	-
8	309232		Barrier		Appelez-nous	-
8	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 7.47
9	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.58
9	WP308544		Screw, 10-24 X 1/2 (1)   (Replaces: 308544)			Immediately	$ 7.47
10	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 7.47
10	330031		Receptacle Clip (4)   (Replaces: 258858)			Immediately	$ 17.93
11	WPW10196406		Pan (6`` (2))   (Replaces: 308539)			Immediately	$ 12.05
11	WPW10196405		Pan (8`` (2))   (Replaces: 308540)			Immediately	$ 15.56
12	WP660532		Unit, Surface (6`` L.f. & R.r. (alternate))   (Replaces: 309334)			Immediately	$ 45.10
12	WP660532		Unit, Surface (6`` L.f. & R.r. (alternate))   (Replaces: 309250)			Immediately	$ 45.10
12	WP660533		Unit, Surface (8`` R.f. & L.r. (alternate) (includes Illus. 13))   (Replaces: 309340)			Immediately	$ 40.21
12	WP660533		Unit, Surface (8`` R.f. & L.r. (alternate))   (Replaces: 309214)			Immediately	$ 40.21
13	261990		Medallion (4)		Appelez-nous	-
