SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven


05 - Literature And Optional

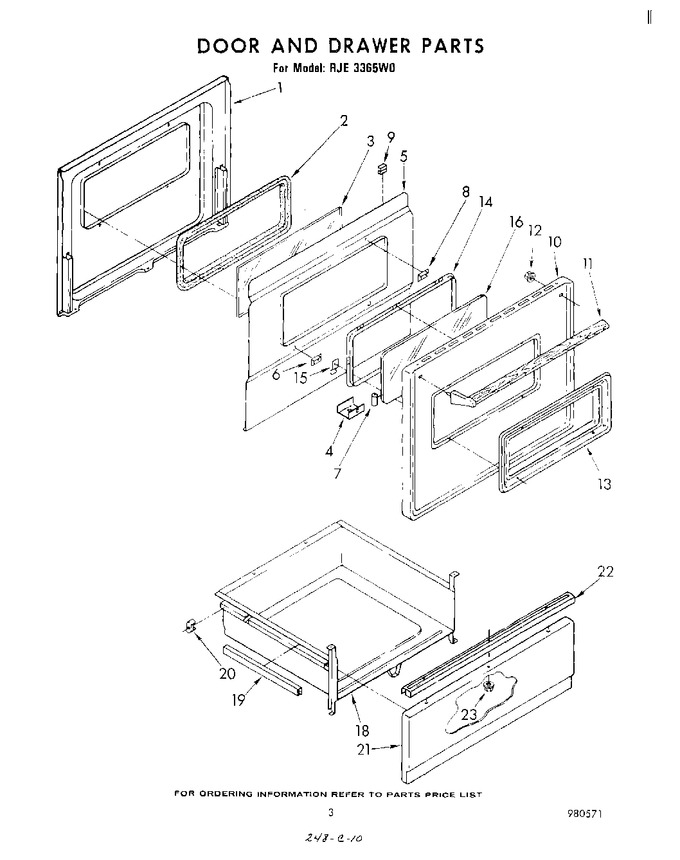

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327881		Liner, Door		Appelez-nous	-
1	311056		Screw		Appelez-nous	-
1	WP308685		Screw, 10a X 1\2 (3)   (Replaces: 253549)			Immediately	$ 7.08
1	WP488627		Screw, 8a X 1/2 (2)   (Replaces: 338156)				$ 7.30
1	338177		``j`` Clip		Appelez-nous	-
2	308501		Seal, Window (large)		Appelez-nous	-
3	308001		Glass, Inner		Appelez-nous	-
4	309137		Spacer, Door (2)		Appelez-nous	-
4	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
5	307925		Baffle, Insulation		Appelez-nous	-
6	258990		Spacer, Baffle (2)		Appelez-nous	-
6	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
7	309152		Cushion, Oven Door (2)		Appelez-nous	-
8	258990		Spacer, Baffle (2)		Appelez-nous	-
8	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
9	255859		Channel, Rubber (4)		Appelez-nous	-
10	307905		Panel, Oven Door (almond)		Appelez-nous	-
10	307901		Panel, Oven Door (white)		Appelez-nous	-
10	307904		Panel, Oven Door (harvest Gold)		Appelez-nous	-
10	307903		Panel, Oven Door (coffee)		Appelez-nous	-
10	307902		Panel, Oven Door (new Avocado)		Appelez-nous	-
11	311564		Handle, Oven Door		Appelez-nous	-
12	WP308499		Palnut (2)   (Replaces: 308499)				$ 6.57
13	309174		Frame, Window (30`` Large)		Appelez-nous	-
14	307730		Screw, 6a X 3/8 (8)		Appelez-nous	-
14	307999		Retainer, Glass		Appelez-nous	-
15	307731		Clip, Frame (3)		Appelez-nous	-
16	309133		Screw, 8a X 5/8 (3)		Appelez-nous	-
16	308000		Glass, Outer		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
20	307980		Glide, Rear (2)		Appelez-nous	-
21	307935		Panel Drawer (white)		Appelez-nous	-
21	307537		Panel, Drawer (screw, 8-32 (3))		Appelez-nous	-
21	309923		Panel Drawer (black)		Appelez-nous	-
21	307939		Panel, Drawer (almond)		Appelez-nous	-
21	307938		Panel Drawer (harvest Gold)		Appelez-nous	-
21	307937		Panel, Drawer (coffee)		Appelez-nous	-
21	307936		Panel, Drawer (new Avocado)		Appelez-nous	-
22	WP912618		Screw (3)   (Replaces: 308541)				$ 7.47
22	310399		Handle, Drawer		Appelez-nous	-
23	WP486255		Palnut, 8-32   (Replaces: 308542)				$ 5.82

    View Diagram in Separate Window       Print Part List
