Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10928302W Ref Dr. Foam Assy Appelez-nous -
12 10928404W Sub To 10928403w(white) Appelez-nous -
21 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 7.38

22 M0219730 Screw Special Order $ 7.65

25 10253527 Assy, W Ref Handle Appelez-nous -
26 10253528 Assy, W Frz Hndl Appelez-nous -
31 M0219730 Screw Special Order $ 7.65

32 B0523593 Insulation, Batt Frz. Dr. Appelez-nous -
35 10201802 Cover-handle Screw W Appelez-nous -
36 10201801 Cover-handle Screw W Appelez-nous -
42 12968202W Stop, Door (wht)   (Replaces: 10447108) Special Order $ 62.36

45 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 7.38

46 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 7.38

52 10202001 Clip, Retainer Appelez-nous -
55 WPW10348409 Screw   (Replaces: M0221718) In-Stock Immediately $ 7.38

56 WPW10348409 Screw   (Replaces: M0221718) In-Stock Immediately $ 7.38

62 10456858 Gasket,fz Dr(white) Appelez-nous -
63 10961001 Bushing, Door (wht) Appelez-nous -
64 10961001 Bushing, Door (wht) Appelez-nous -
66 10184301 Plug-nameplate W Appelez-nous -
72 10609201 Liner, Frz Door Appelez-nous -
76 10184401 Nameplate, Handle Appelez-nous -
81 12968202W Stop, Door (wht)   (Replaces: 10447108) Special Order $ 62.36

85 10609805 Retainer, Ref Door Appelez-nous -
86 10184501 Pad Nameplate Appelez-nous -
92 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 7.39

102 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 7.38

105 12163301 Door, Dairy Appelez-nous -
106 10609306 Retainer, Ref Door Appelez-nous -
114 M0310308 Plug, Button (wht) Appelez-nous -
115 10420007 Shelf, Ref Door Appelez-nous -
116 10420007 Shelf, Ref Door Appelez-nous -
123 M0310308 Plug, Button (wht) Appelez-nous -
125 12163202 Shelf, Dairy Appelez-nous -
131 10456857 Gasket,ref Dr(white) Appelez-nous -
151 10609701 Liner, Refrig Door Appelez-nous -
191 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 7.39

211 10609306 Retainer, Ref Door Appelez-nous -
221 10202001 Clip, Retainer Appelez-nous -
254 12028601 Bushing, Door (wht) Appelez-nous -
264 10252903 Filter, Bushing Appelez-nous -
5004 10686401 Plug Button Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

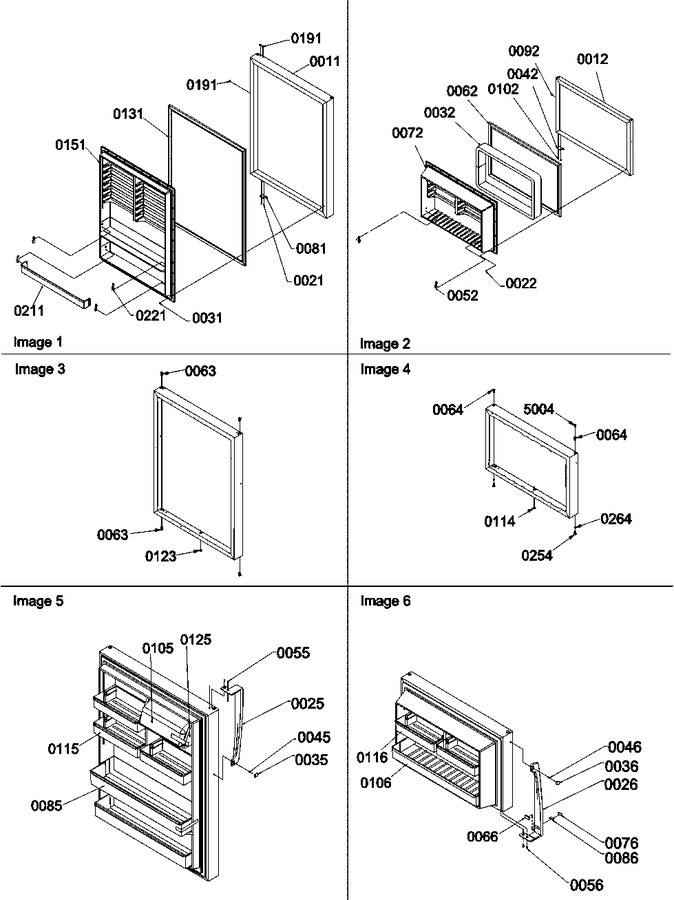

Diagram for TR525VW (BOM: P1322701W W)
