SELECT A DIAGRAM

01 - Cabinet Back


02 - Door Assemblies


03 - Door Hinges, Freezer Shelf


04 - Evaporator And Fan Motor Assemblies


05 - Ice Maker Assembly And Parts


06 - Interior Cabinet And Drain Block Assy


07 - Ladders, Lower Cabinet And Rollers


08 - Machine Compartment


09 - Shelving And Crisper Assemblies

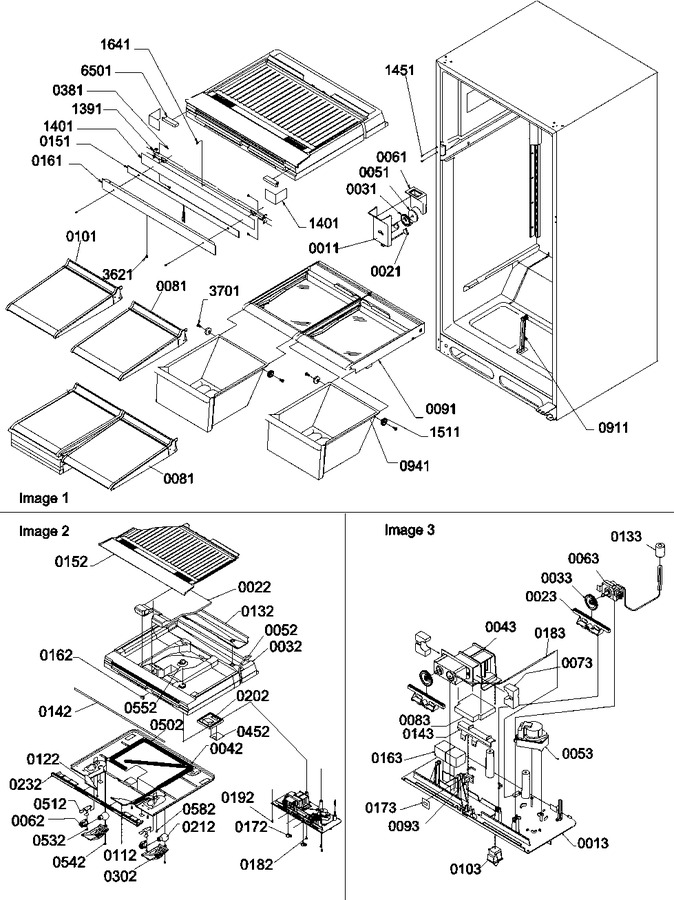

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10642103		Cover, Mk Air Sply		Appelez-nous	-
13	12035105		Housing, Control		Appelez-nous	-
21	10852401		Gasket, Mt Kpr Duct		Appelez-nous	-
22	10476401		Insert-drain Blk		Appelez-nous	-
23	10439601		Rack, Control		Appelez-nous	-
31	10479401		Control, Mt. Kpr. Air Sup		Appelez-nous	-
32	10996201		Kit, Drain Blk/ Frz Floor		Appelez-nous	-
33	10442601		Pinion, Control		Appelez-nous	-
42	12035218		Ref Top- E Ct		Appelez-nous	-
43	R0161072		Assy, Damper Control		Appelez-nous	-
51	12411301		Insert, Mk Control		Appelez-nous	-
52	10781106		Harness,drain Block		Appelez-nous	-
53	10428602		Timer-defrost		Appelez-nous	-
61	10479103		Tunnel, Mt Kpr		Appelez-nous	-
62	D7845103		Socket, Light		Appelez-nous	-
63	10428506		Control-fz Temp Assy (includes		Appelez-nous	-
73	10442801		Insert,damper		Appelez-nous	-
81	10926205		Shelf-glide		Appelez-nous	-
83	10442901		Insulation, Damper		Appelez-nous	-
91	10698521		Assy, Crisp Frame		Appelez-nous	-
93	10279202		Switch, Heater		Appelez-nous	-
101	10926203		Shelf-glide		Appelez-nous	-
103	W11384469		Switch, Light   (Replaces: C3680308)			Immediately	$ 35.18
112	10467701		Pipe, Light		Appelez-nous	-
122	10467702		Pipe, Light		Appelez-nous	-
132	10671702		Drip Tray		Appelez-nous	-
133	10673603		Insulation, Cap		Appelez-nous	-
142	10450835		Membrane, Breaker		Appelez-nous	-
143	10565101		Shield, Wire		Appelez-nous	-
151	10543610		Heater- Mullion		Appelez-nous	-
152	10995902		Bottom, Frz		Appelez-nous	-
161	10433348		Mullion,center-w Ect		Appelez-nous	-
162	10752201		Cap-switch		Appelez-nous	-
163	10900801		Shield, Cont Hsg.		Appelez-nous	-
172	10565401		Knob, Control		Appelez-nous	-
173	10877103		Cover, Switch		Appelez-nous	-
182	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.57
183	A3012542		Tube-plastic		Appelez-nous	-
192	M0224128		Screw		Appelez-nous	-
202	10995201		Insert-mk Air Sply		Appelez-nous	-
212	M0360402		Light Bulb (230/240 Vac)		Appelez-nous	-
232	10673705		Frame, Ref Top Brk		Appelez-nous	-
302	10508701		Shield, Refrig. Light		Appelez-nous	-
381	R9800670		Screw, Tf   (Replaces: M0238731)				$ 9.52
452	10594901		Gasket, Mk Air Supply		Appelez-nous	-
502	10775302		Heater, Ref Top		Appelez-nous	-
512	10907501		Brkt, Light		Appelez-nous	-
532	M0223328		Screw		Appelez-nous	-
542	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.43
552	10993701		Cap-air		Appelez-nous	-
582	WP489128		Screw   (Replaces: M0253516)				$ 10.26
911	10461901		Post, Crisper Support			Immediately	$ 23.27
941	10629103		Pan, Crisper		Appelez-nous	-
1391	10433612		Plate, Center Tap		Appelez-nous	-
1401	B0523584		Insulation Per Ft.		Appelez-nous	-
1451	M0311605		Plug, Button (wht)		Appelez-nous	-
1511	10481001		Roller, Pan				$ 10.99
1641	M0253916		Screw		Appelez-nous	-
3621	M0211520		Screw - Sm		Appelez-nous	-
3701	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 9.71
6501	10772301		Insulation		Appelez-nous	-
NI	10785802		Harness, Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
