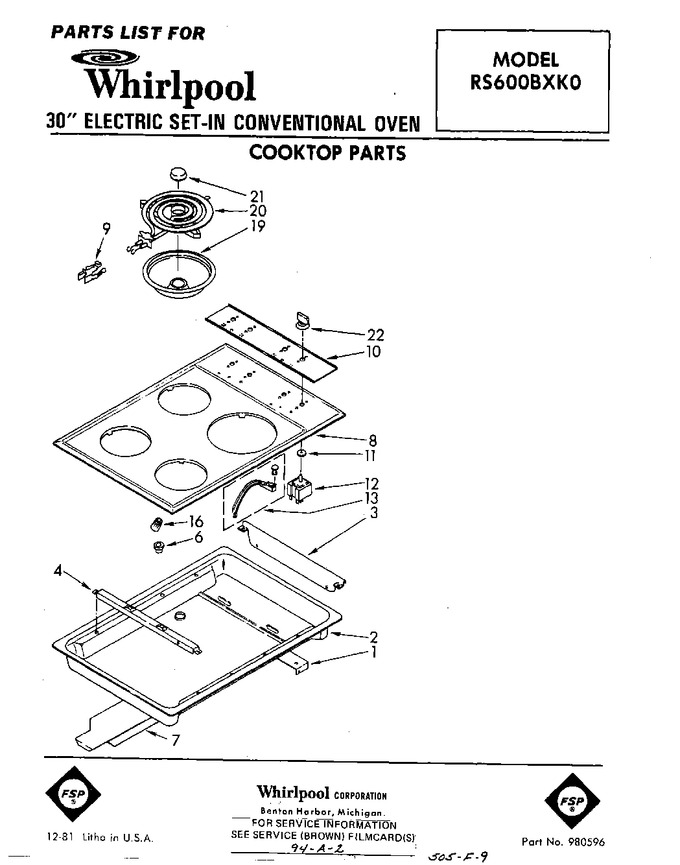

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310718		Support, Burner Box (2)		Appelez-nous	-
1	WP308685		Screw, 10a X 1/2 (6)   (Replaces: 253549)			Immediately	$ 7.08
2	311019		Burner Box		Appelez-nous	-
3	310716		Shield, Switch		Appelez-nous	-
3	342043		Screw (2)		Appelez-nous	-
4	342043		Screw (2)		Appelez-nous	-
4	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
4	310717		Support, Cooktop		Appelez-nous	-
6	258109		Bushing		Appelez-nous	-
7	310627		Cover, Top Rear		Appelez-nous	-
7	WP308685		Screw, 10a X 1\2 (3)   (Replaces: 253549)			Immediately	$ 7.08
8	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
8	307483		Cooktop, Chrome		Appelez-nous	-
8	166681		Screw, 10-32 X 5/16 (2)		Appelez-nous	-
9	330031		Clip, Receptacle (4)   (Replaces: 258858)			Immediately	$ 17.93
9	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 7.47
10	310939		Panel, Control		Appelez-nous	-
11	309839		Seal, Switch		Appelez-nous	-
12	246406		Switch, Infinite (screw, 8-32 X 5/16 (8))		Appelez-nous	-
12	W10900107		Switch, Infinite (use W/8`` Surface Unit (1))   (Replaces: 311844)			Immediately	$ 51.87
12	WP3149401		Switch, Infinite (use W/6`` Surface Unit (3))   (Replaces: 311845)				$ 141.38
13	311523		Indicator Light (2) (includes Lens)		Appelez-nous	-
16	255673		Connector, Wire		Appelez-nous	-
19	W10196405RW		Reflector Pan (8`` (1))   (Replaces: 308540)			Immediately	$ 19.64
19	WPW10196406		Reflector Pan (6`` (3))   (Replaces: 308539)			Immediately	$ 12.42
20	309916		Unit, Surface (6`` (3))		Appelez-nous	-
20	309917		Unit, Surface (8`` (1) (includes Illus. 21))		Appelez-nous	-
21	309195		Medallion, Surface Unit		Appelez-nous	-
22	WP330190		Knob, Control (4)   (Replaces: 329404)				$ 40.01
