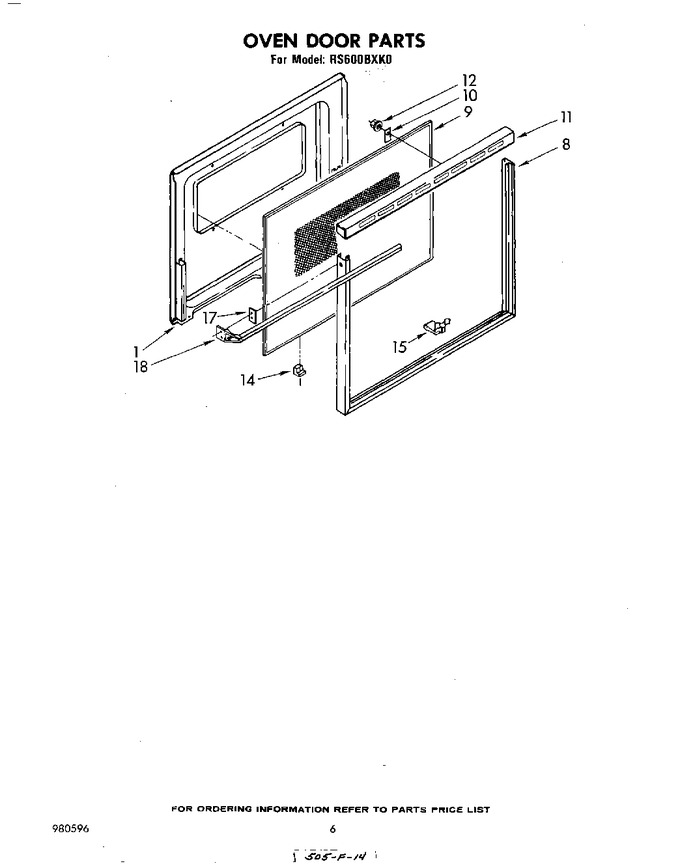

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 311056 | Screw, (4) |
|
- | |||||
| 1 | 338177 | Clip |
|
- | |||||
| 1 | 254217 | Screw, 10a X 3/8 (3) |
|
- | |||||
| 1 | 327863 | Liner, Door |
|
- | |||||
| 8 | 310427 | Frame, Door 30`` |
|
- | |||||
| 9 | 00573829 | Glass, Outer Pano (Replaces: 310655) |
|
Immediately | $ 27.48 | ||||
| 10 | 310705 | Hold-down, Glass |
|
- | |||||
| 11 | 307748 | Screw, 10a X 1/2 (2) |
|
- | |||||
| 11 | 310784 | Top, Door Frame |
|
- | |||||
| 12 | WP90296 | Fastener, Pushnut (2) (Replaces: 308593) |
|
$ 7.42 | |||||
| 14 | 309152 | Cushion, Glass (3) |
|
- | |||||
| 15 | 311506 | Clip (2) |
|
- | |||||
| 15 | 310706 | Clip, Glass (10) |
|
- | |||||
| 17 | 310707 | Spacer, Door Handle (2) |
|
- | |||||
| 18 | WP912618 | Screw (4) (Replaces: 308541) |
|
$ 7.47 | |||||
| 18 | 311573 | Handle, Oven Door |
|
- |
