01 - Cabinet Back


02 - Cabinet Bottom And Back


03 - Cabinet Shelving


04 - Cabinet Shelving


05 - Divider Block And Controls


06 - Evap Area


07 - Fz Door


08 - Panasonic Compressor


09 - Ref Door

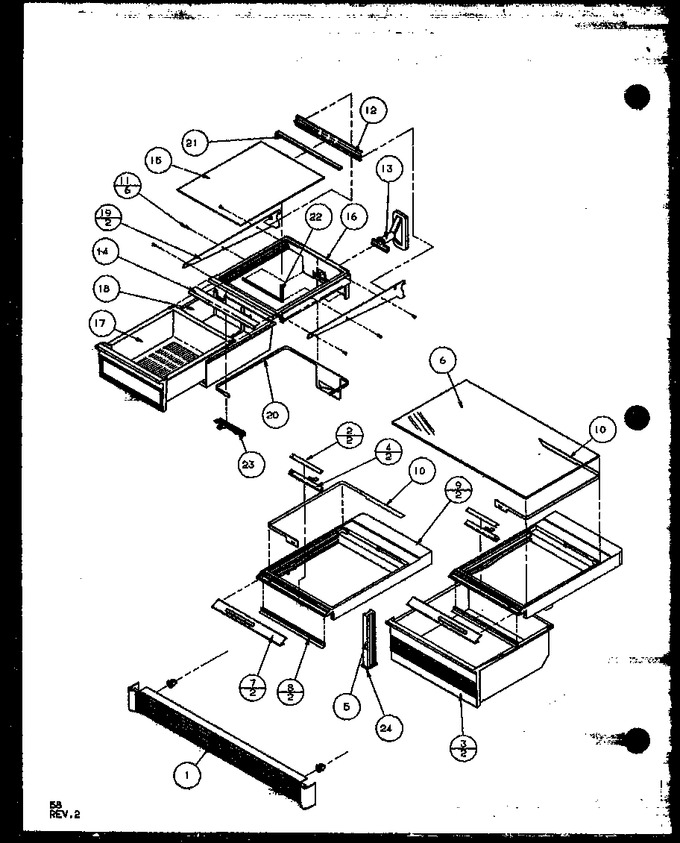

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520514		Grille-toe L		Appelez-nous	-
1	D7520513		Grille-toe		Appelez-nous	-
1	D7520512		Grille-toe K		Appelez-nous	-
2	10199906		Insert Crisper Slide		Appelez-nous	-
3	D7581041		Pan, Crisper		Appelez-nous	-
4	10199815		Slide Crisper Control K		Appelez-nous	-
4	10199814		Slide Crisper Control K		Appelez-nous	-
5	10199602		Post, Crisper Support		Appelez-nous	-
6	10036055		Glass Crisper Top Gg		Appelez-nous	-
7	D7616672		Trim		Appelez-nous	-
7	D7616673		Trim		Appelez-nous	-
8	D7718402		Seal Crisper		Appelez-nous	-
9	10182511		Frame Crisper R		Appelez-nous	-
9	10182512		Frame Crisper L		Appelez-nous	-
10	10200002		Band, Crisper Control		Appelez-nous	-
11	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
12	C8990406		Trim M.k Top Rear		Appelez-nous	-
13	D7859308		Grommet M. K.		Appelez-nous	-
14	10049919		Trim-front Shelf		Appelez-nous	-
15	10036051		Glass Mk Shelf		Appelez-nous	-
16	D7853303		Frame,meatkeeper		Appelez-nous	-
17	D7698333		Pan-meat		Appelez-nous	-
18	D7698112		Sleeve M.k. V		Appelez-nous	-
19	D7862971		Side Rail		Appelez-nous	-
19	D7862970		Side Rail		Appelez-nous	-
20	D7859504		Band M.k. Control		Appelez-nous	-
21	10043101		Ext. Rear Glass		Appelez-nous	-
22	A3030353		Gasket		Appelez-nous	-
23	D7859402		Slide-mk Control		Appelez-nous	-
24	10349904		Shim, Crisper Support		Appelez-nous	-
24	10349903		Shim, Crisper Support		Appelez-nous	-
NI	10259609		Right Crisper Frame Assembly		Appelez-nous	-
NI	10259608		L Crisp Frm Assy		Appelez-nous	-
