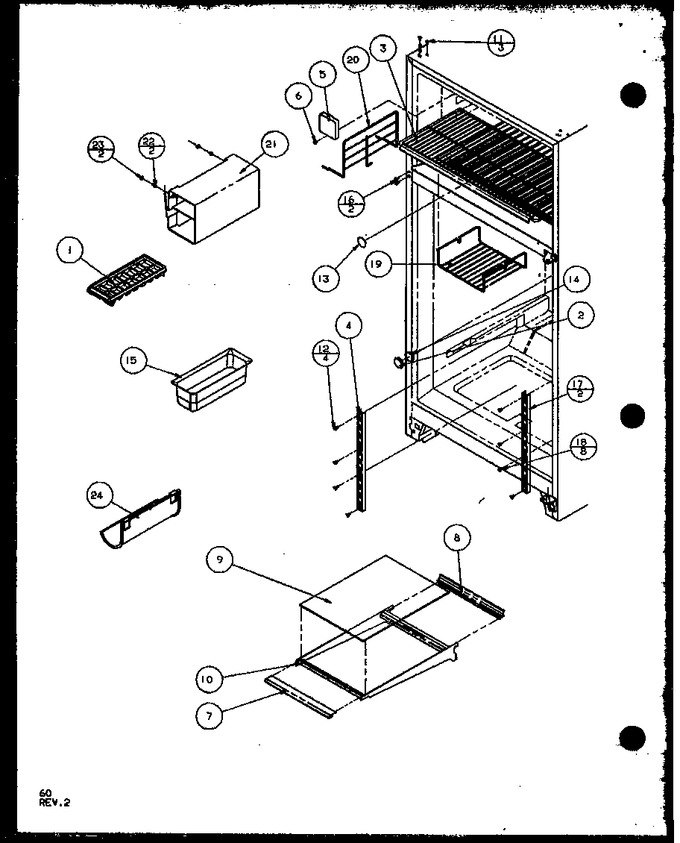

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 43.06
2	M0310314		Plug		Appelez-nous	-
3	D7580706		Shelf, Frz		Appelez-nous	-
4	D7599002		Ladder, Center		Appelez-nous	-
5	D7874402		Cover-fl Tb/plug		Appelez-nous	-
6	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 6.57
7	10049920		Trim-front Shelf		Appelez-nous	-
8	C8913610		Trim, Glass Shelf		Appelez-nous	-
9	10036054		Glass Shelf		Appelez-nous	-
10	D7871015		Fram Cant.		Appelez-nous	-
11	M0310720		Plug		Appelez-nous	-
11	M0310716		Plug		Appelez-nous	-
11	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 7.39
12	M0230923		Screw		Appelez-nous	-
13	M0310305		Plug, Button (wht)		Appelez-nous	-
14	B8362502		Insul. Mk Plug		Appelez-nous	-
15	D7620029		Bin-ice		Appelez-nous	-
16	R9800670		Kit, Screw   (Replaces: M0226331)				$ 9.52
17	D7599105		Ladder, Side		Appelez-nous	-
18	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.43
19	10250501		Rack-freezer		Appelez-nous	-
20	D7806002		Divider, Wire		Appelez-nous	-
21	D7620104		Rack, Ice		Appelez-nous	-
22	M0219559		Screw		Appelez-nous	-
23	M0270508		Washer		Appelez-nous	-
24	D7547615		Rack Bottle V		Appelez-nous	-
NI	Y00000000		See Note Add-on Ice Maker -- (available Thru Sales, Ic3q)		Appelez-nous	-
NI	10144022		Glass Shelf Assembly		Appelez-nous	-
NI	10144021		Glass Shelf Assembly		Appelez-nous	-
